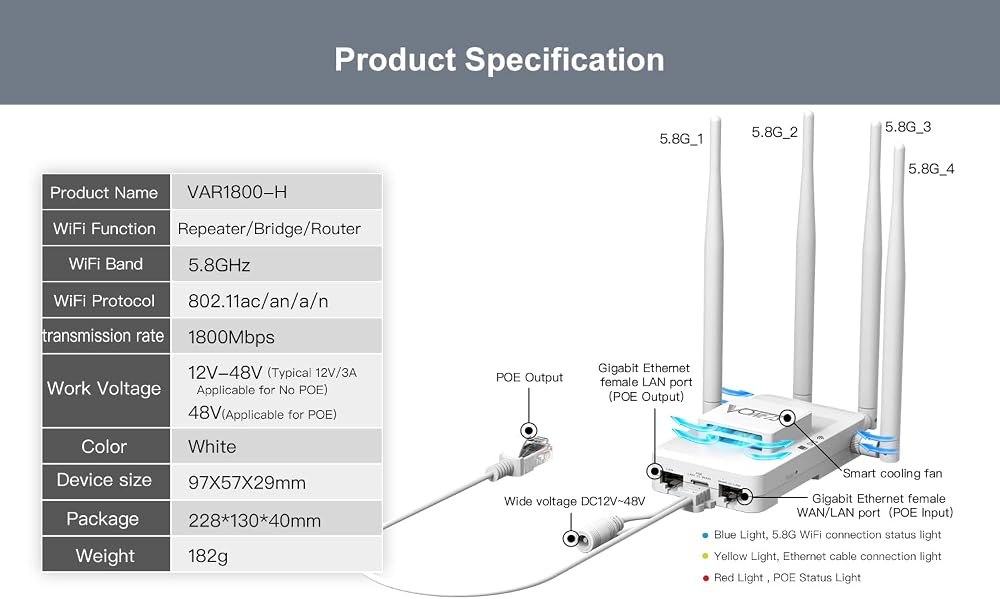

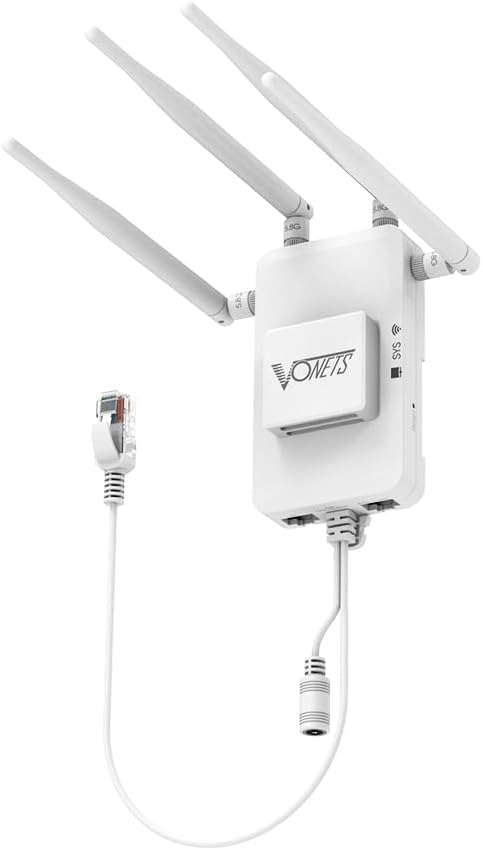

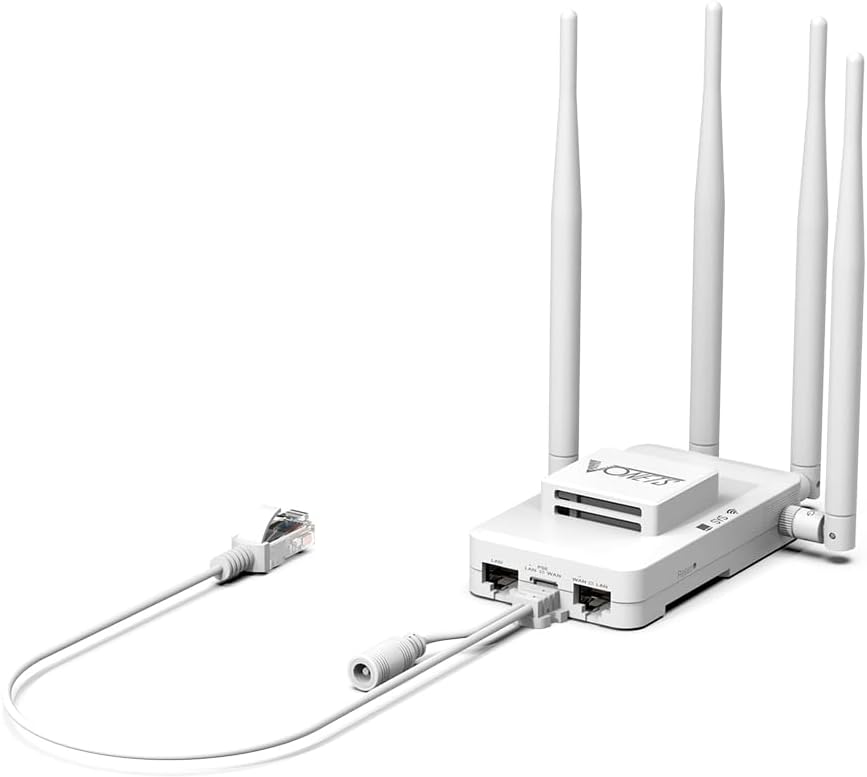

The VONETS VAR1800-H is an industrial-grade 5.8GHz Gigabit WiFi Bridge designed for extreme long-distance and high-bandwidth applications. With a point-to-point range exceeding 2000 meters and speeds up to 1800Mbps, it is the professional choice for connecting remote IP cameras, industrial PLCs, access control systems, and cross-building networks.
Extreme Long Range (Over 2000m):
The VAR1800-H is equipped with 4 external high-gain omnidirectional antennas and 4 built-in high-power FEMs (Front-End Modules). With selectable transmit power (18/23dBm) and digital temperature-compensated frequency stabilization, it maintains a stable link over 2000 meters line-of-sight on the 5.8GHz band. This makes it ideal for large farms, parking lots, warehouses, campus networks, and security perimeters.
Industrial-Grade Hardware & Connectivity:
Wide Voltage (12V-48V) with two-stage overvoltage protection (58V cutoff)

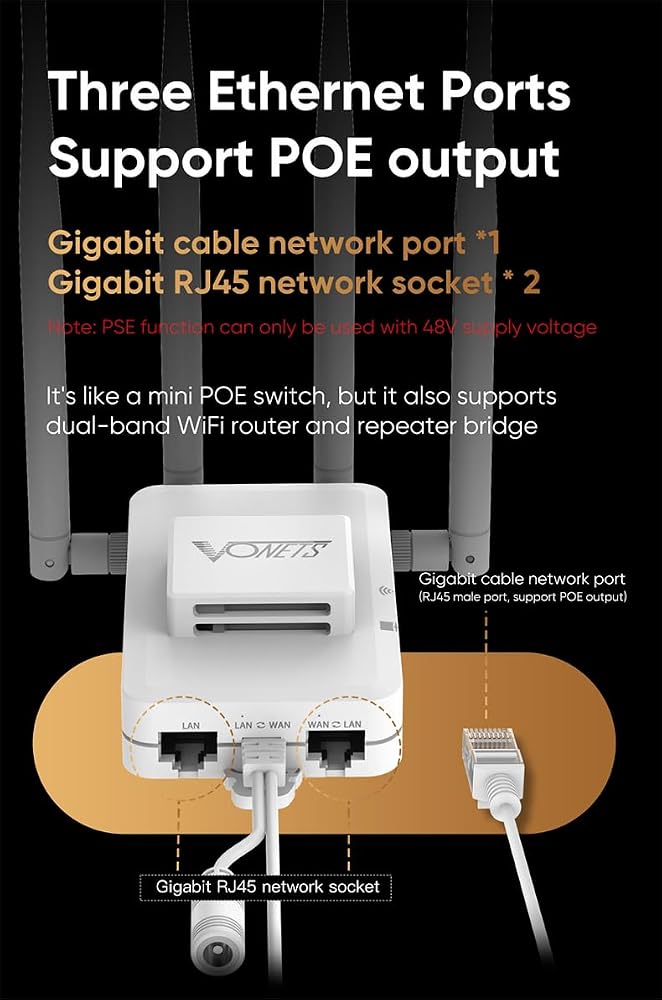

3 x Gigabit Ethernet Ports (10/100/1000Mbps) with PoE support (one port can receive PoE power)
Built-in intelligent cooling fan + convection cooling holes for 24/7 operation
Operating temperature -20℃ to 55℃

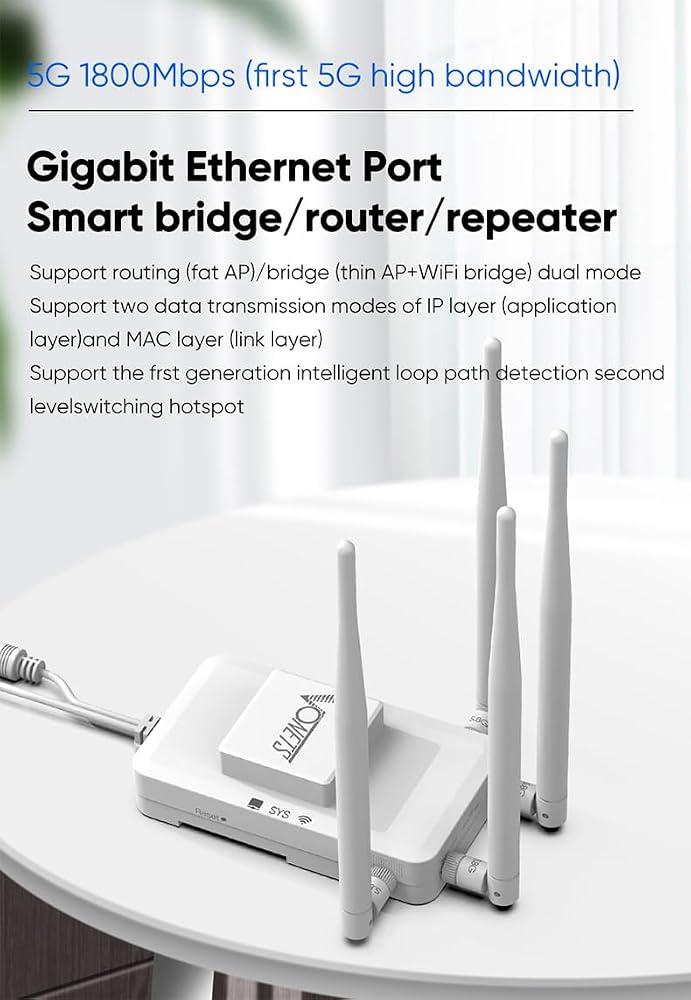

Wireless Performance:
Single-band 5.8GHz: 1800Mbps
4 external smart omnidirectional 5.8GHz antennas
Selectable TX power: 18dBm / 23dBm
Supports 802.11ac/an/a/n protocols
Built-in 4 high-power FEMs for extended range
Smart Features:
Auto-reconnect and memorize up to 100 hotspots
Supports 20+ simultaneous WiFi terminals
WEB management interface (Chinese/English)
VDNS virtual domain configuration for easy setup
SSA protocol for hotspot signal strength detection and reporting
Manual SSID broadcast disable and WiFi hardware shutdown
