Introduction

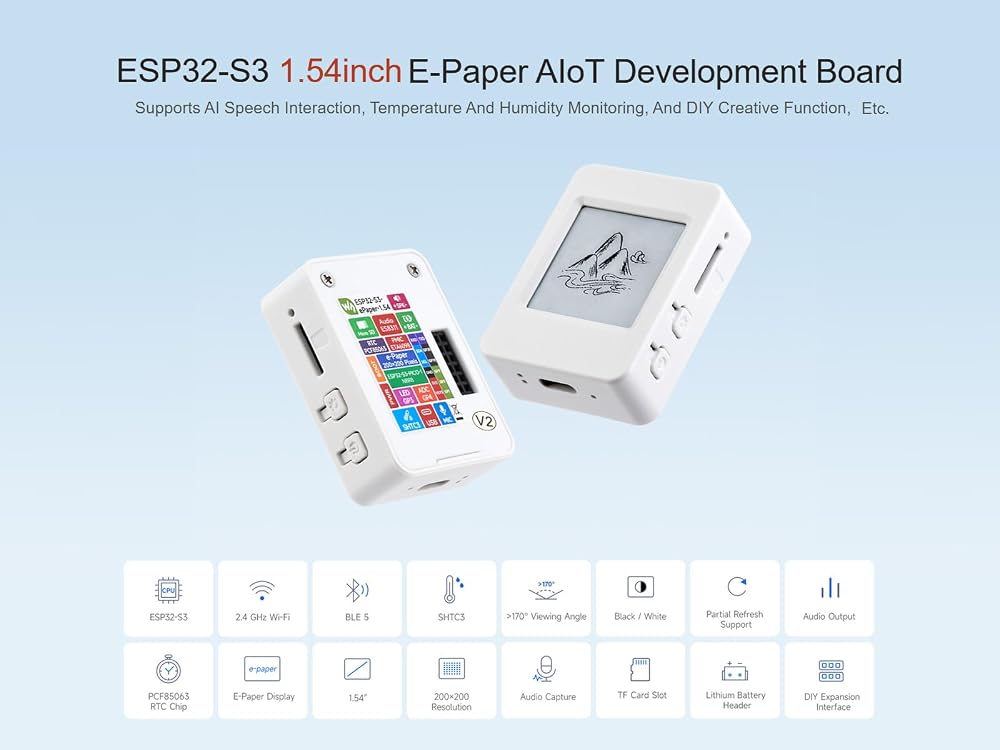

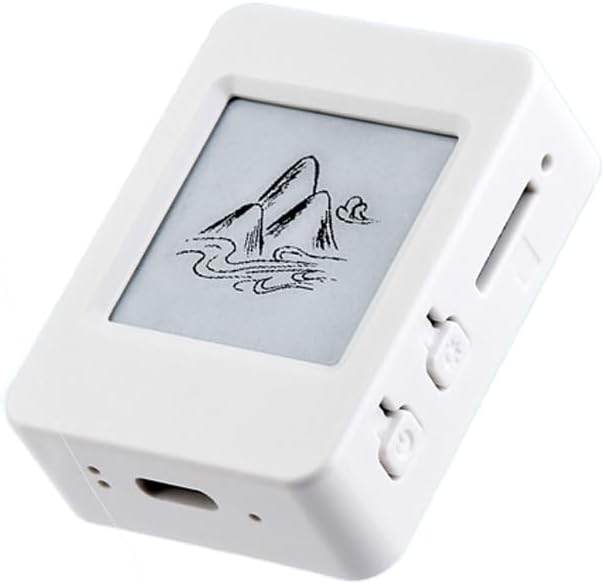

The ESP32-S3-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.

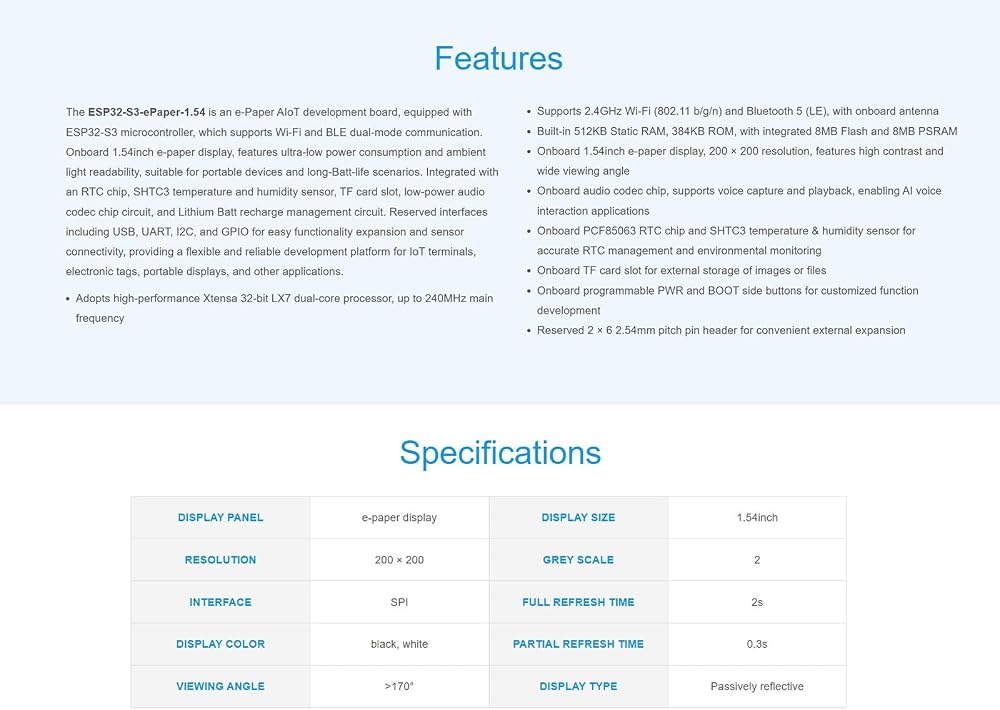

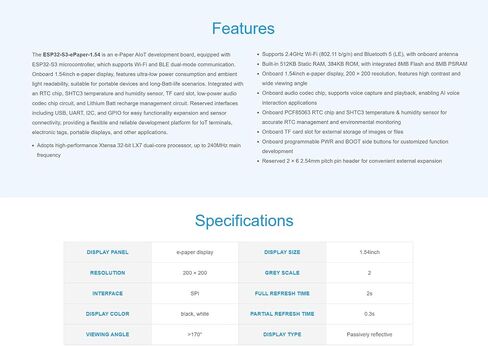

Features
Adopts high-performance 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB Static RAM, 384KB ROM, with integrated 8MB Flash and 8MB PSRAM
Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle

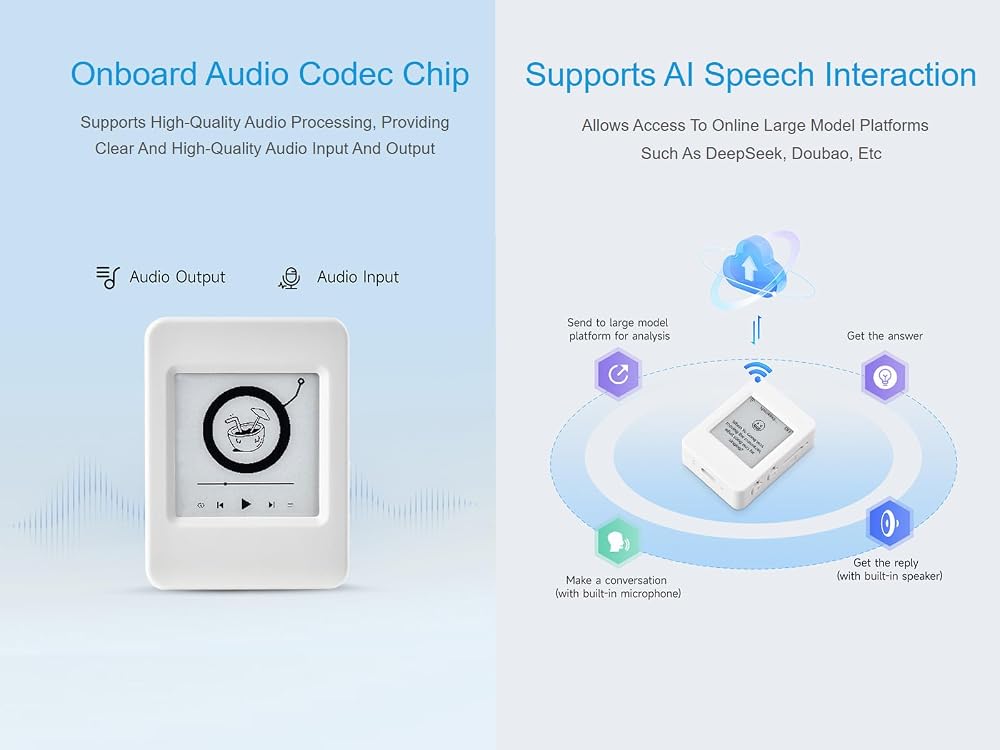

Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
Onboard TF card slot for external storage of images or files
Onboard programmable PWR and BOOT side buttons for customized function development
Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion

Package Content
ESP32-S3-ePaper-1.54 x1

Note: Online Dev Resources and Tutorials to help you easily get started. Please feel free to contact us with any questions
