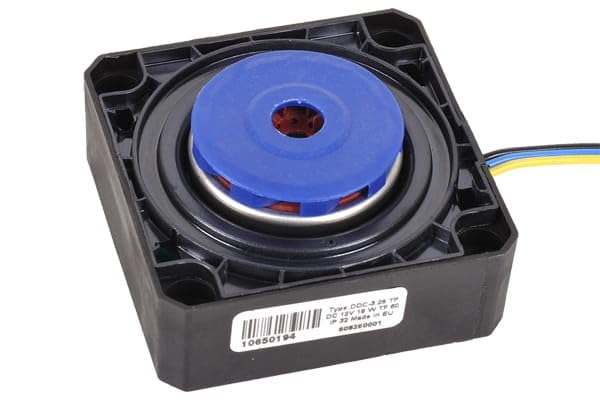

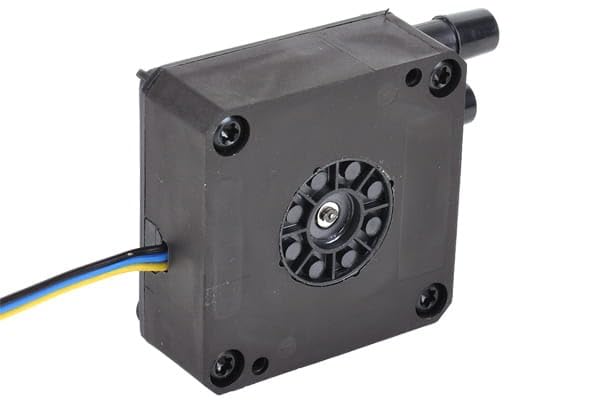

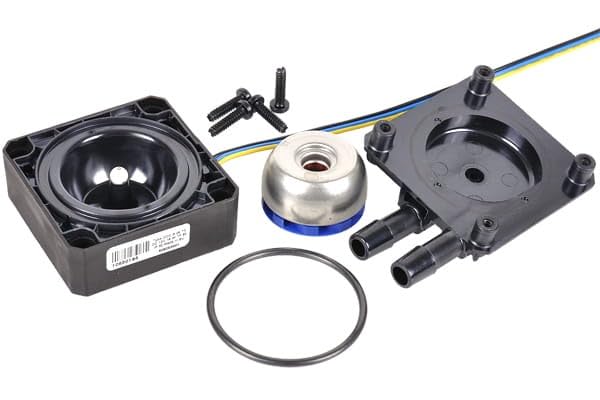

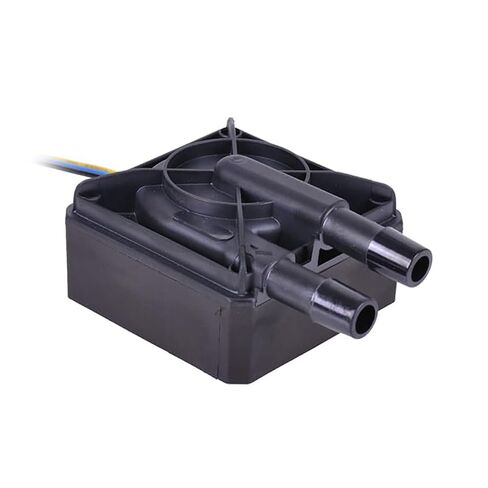

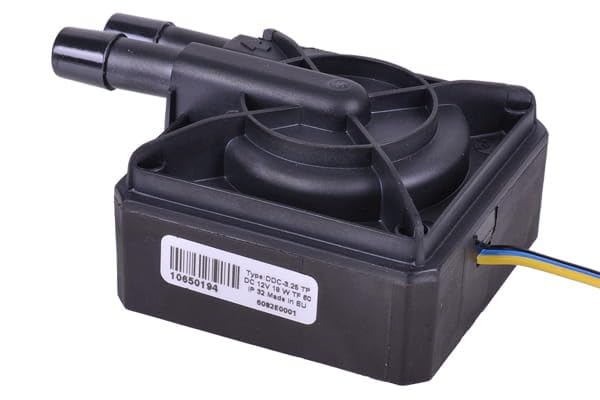

This pump is the first pump worldwide which is used in mass-produced water cooled workstations and is ideal for the watercooling of processors and electronic components. Due to its compact size and its power it can be used for many applications. This DC pump is an electronically commuted ball motor pump with an estimated lifespan of more than 50.000hrs at 12V. The only moving part on the pump is the spherically shaped Rotor unit which is sitting on an ultra-hard, wear-resistant ceramics bearing ball. A conventional shaft with bearings and seals is not used or needed. The spherical bearing of the rotor unit on the ceramics bearing ball has many advantages: The development of bearing clearance is technically impossible which results in the impossibility of noise level increase over the lifespan of the pump. The bearing is self-adjusting, making the pump consistently quiet in operation over the full lifespan. The pump is directly lubricated by the coolant (wet-running pump). Therefore no maintenance is required. Pump tacho: With 3-pin Molex connector as pump tacho output (for mainboards or control units) Technical data Dimensions (L x W x H): 92 x 70 x 40mm Material: stainless steel 1.4571, PPS-GF40, EPDM O-rings, aluminium oxide, carbon Threads: 2x 3/8" barbed fittings Speed: 4500 rpm Max power consumption: 15.6 W Voltage: 12V DC Power connector: 3-Pin Molex PWM control: n/a Tacho-Signal: yes (3-Pin Molex) Max. working temperature ambiente: 10C - 50C Max. working temperature water: 10C - 60C Max. head of pump: 4,28m Max. flow: 505 L/h Max. pump pressure: 0,43 bar Model: 60E0C0101YYY011
