Specification:

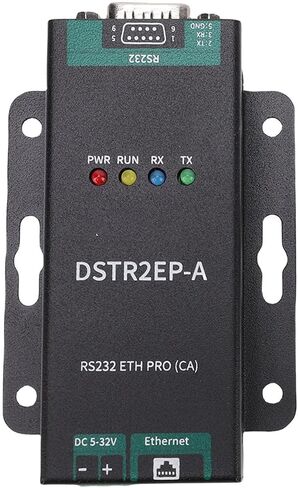

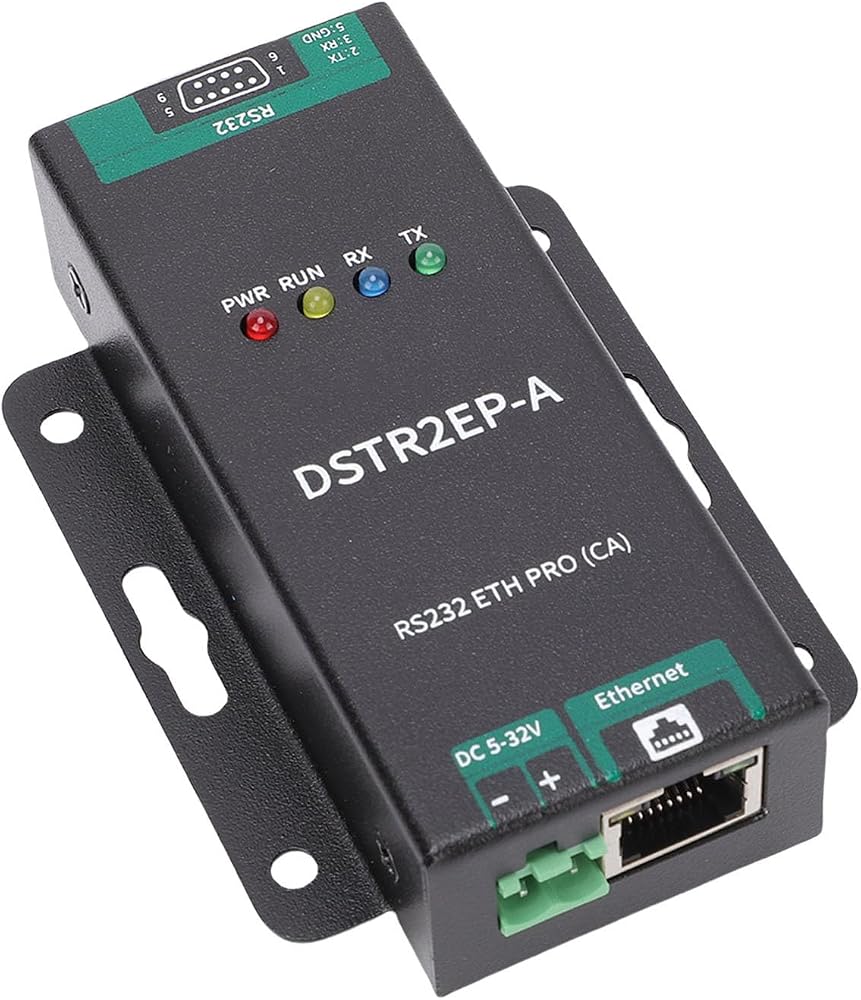

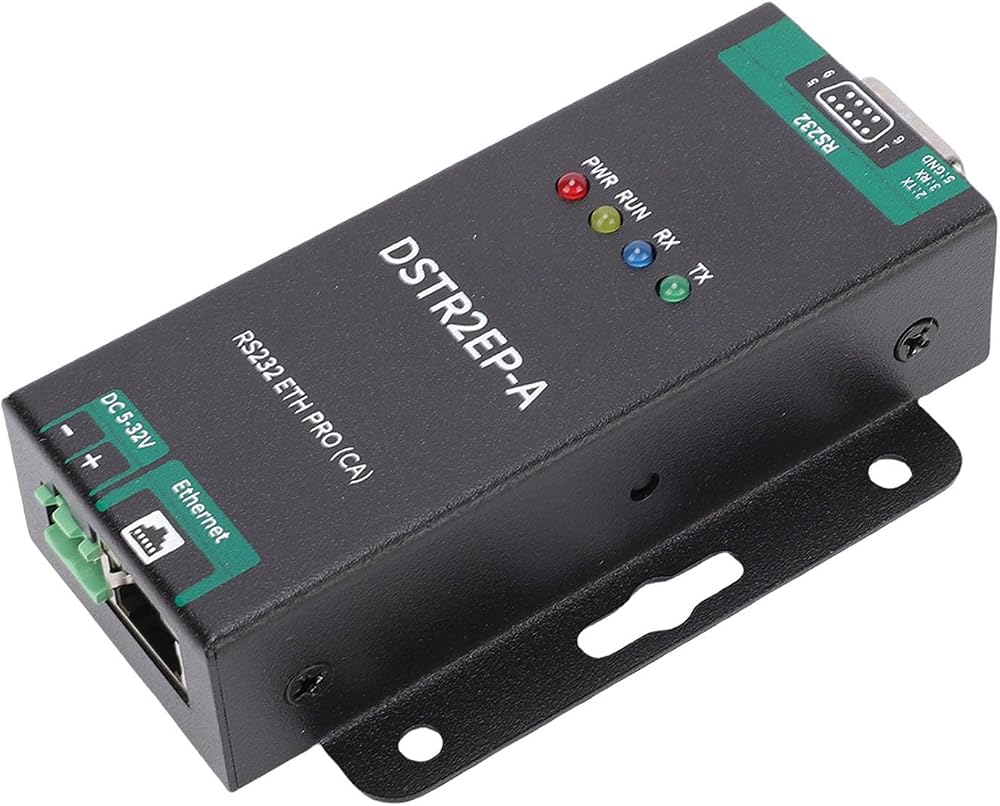

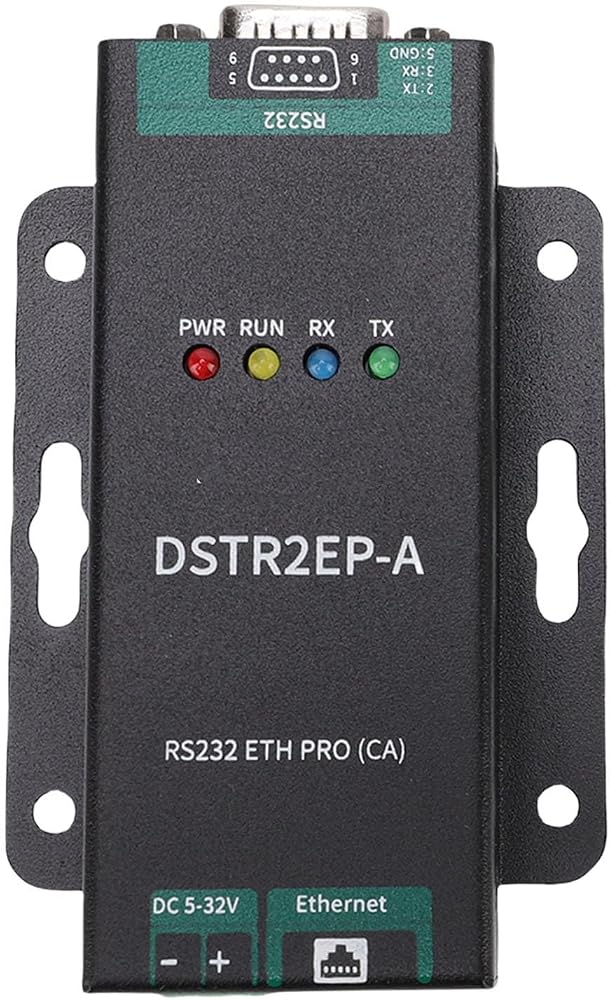

Item Type: RS232 to RJ45 Ethernet Converter
Material: Aluminum Alloy

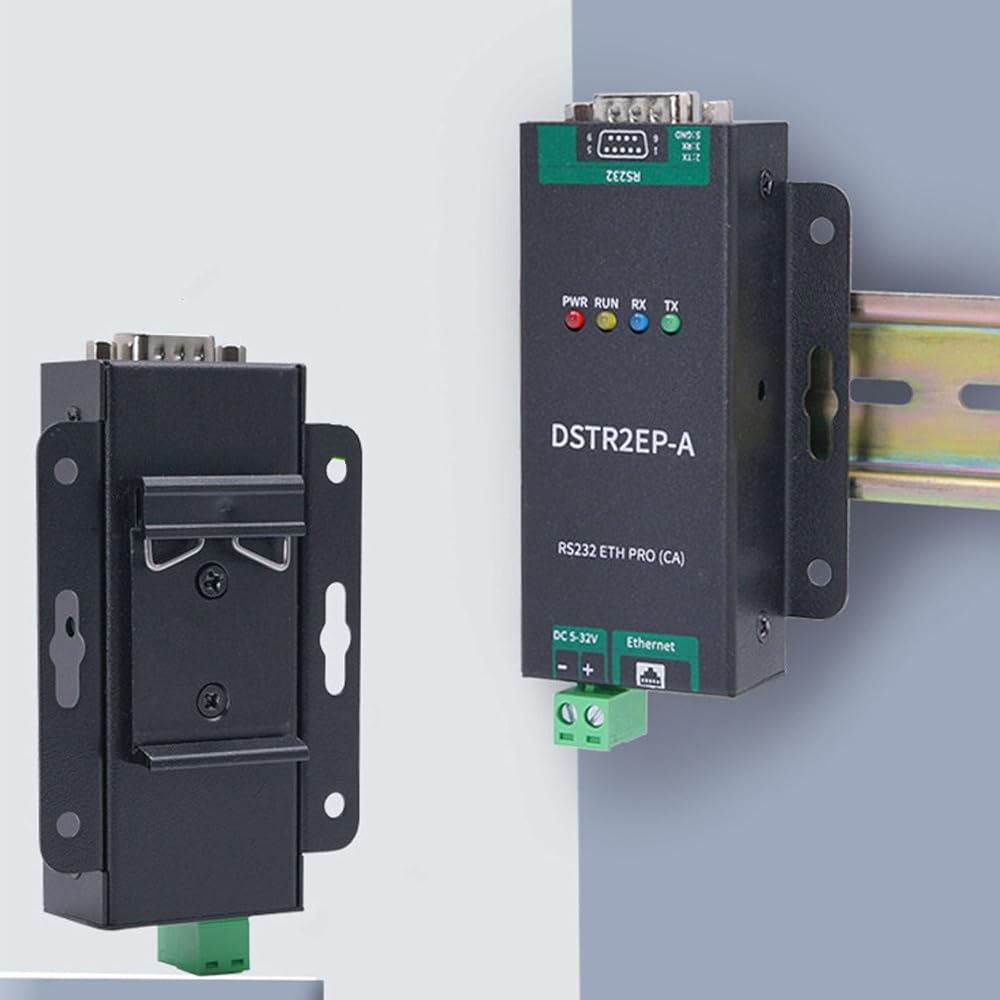

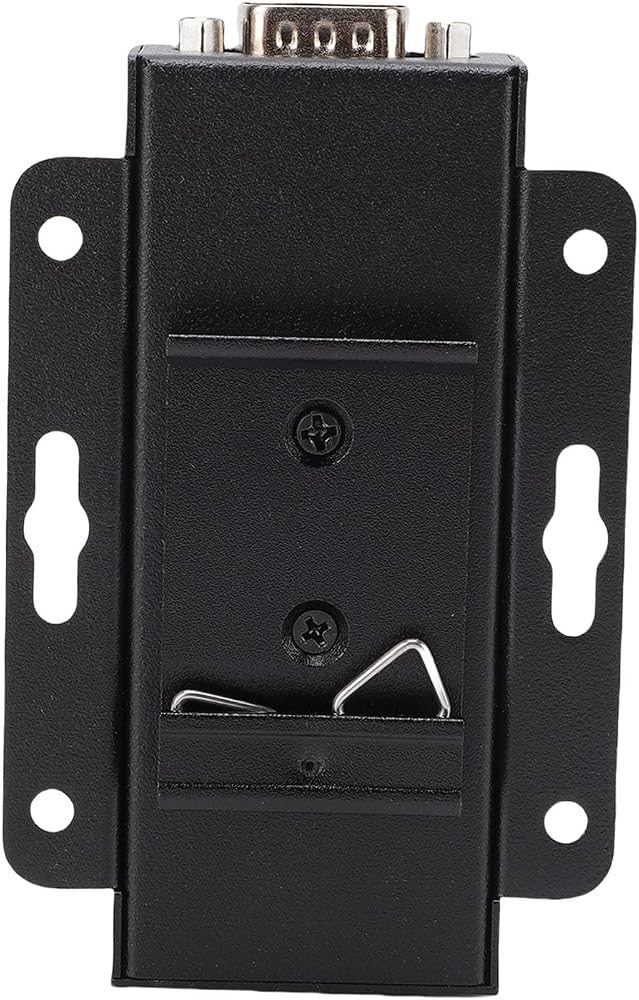

Installation: Hanging mounting or 3.5cm Universal Guide Rail
Operating Temperature: -40 to 85°C

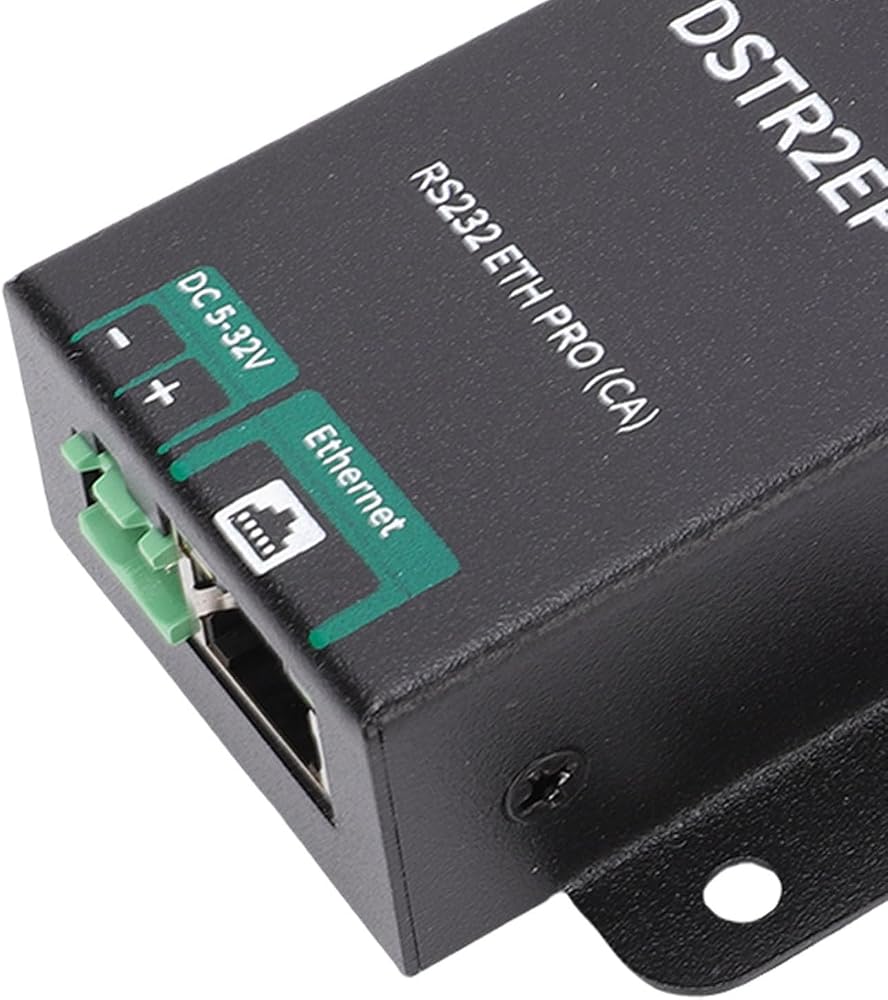

Network Interface: RJ45, MDI/MDIX automatic line conversion, crossover direct connection

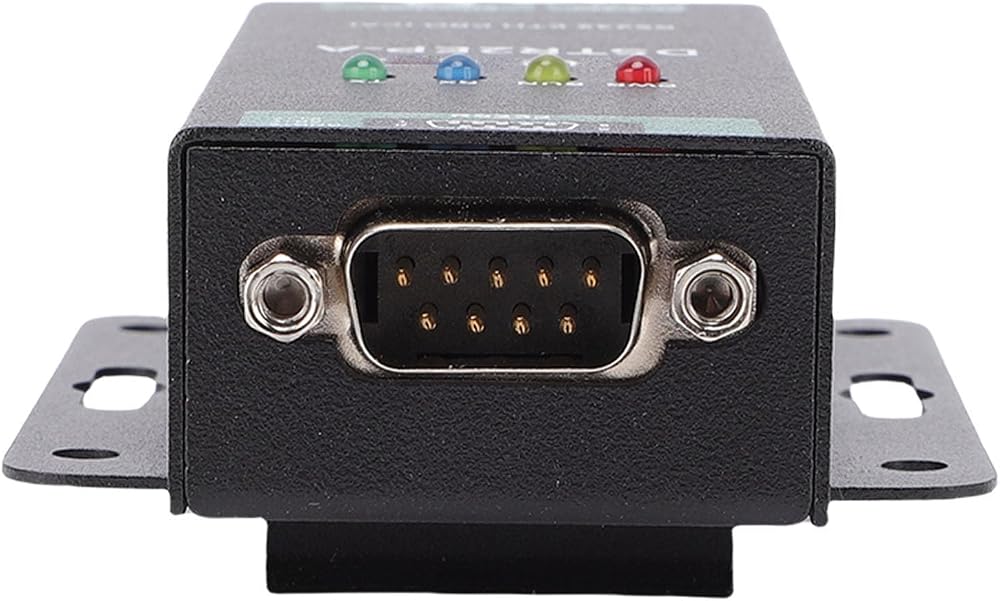

Serial Interface: RS232 DB9 Male Head
Baud Rate: 300bps to 460800bps
Control: RS232: RTS/CTS
Operating Mode: Server, Client ( Server also coexists), UDP, UDP Multicast, UDP Dynamic Mode

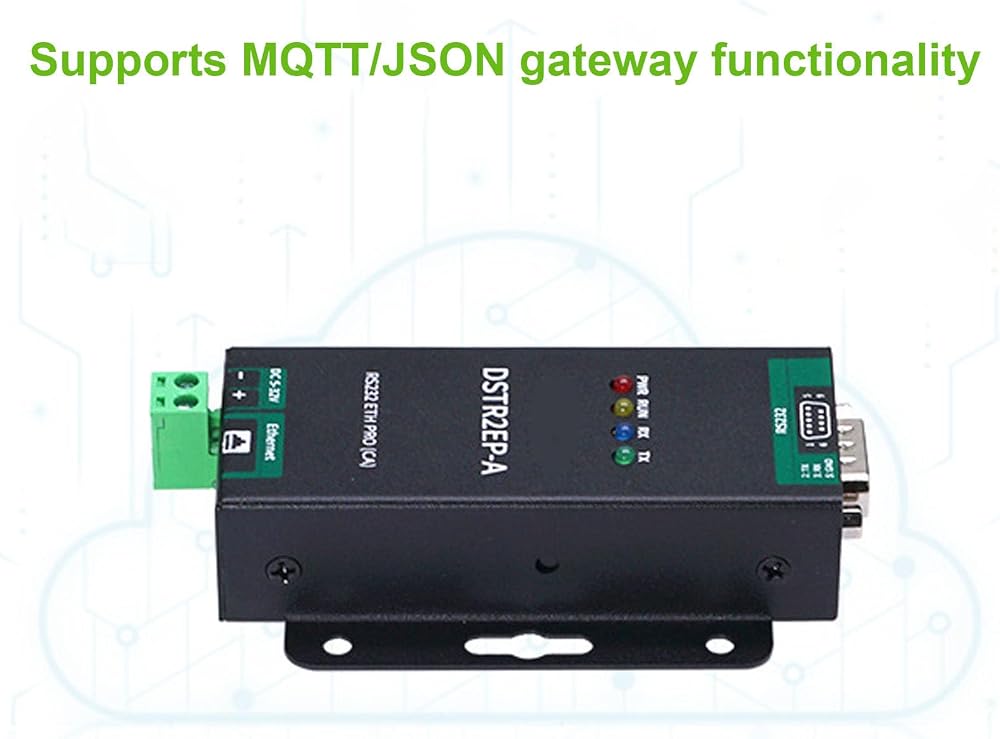

Conversion Protocol: Modbus , , JSON, for Realcom Protocol, for HTTP
Modbus : Supports mode, storage mode, pre configured table (ZLMB) mode; supports to RTU/ASCII
IP and Address Resolution: Static or DHCP, supports DNS resolution
Communication Method: /IP direct communication, virtual serial port mode
Connection Quantity: Server: 30, Client: 7 destination IP
Configuration Method: for ZLVirCOM Tool, web browser (customizable webpage), device management function library, Serial AT Command Configuration, device cloud management

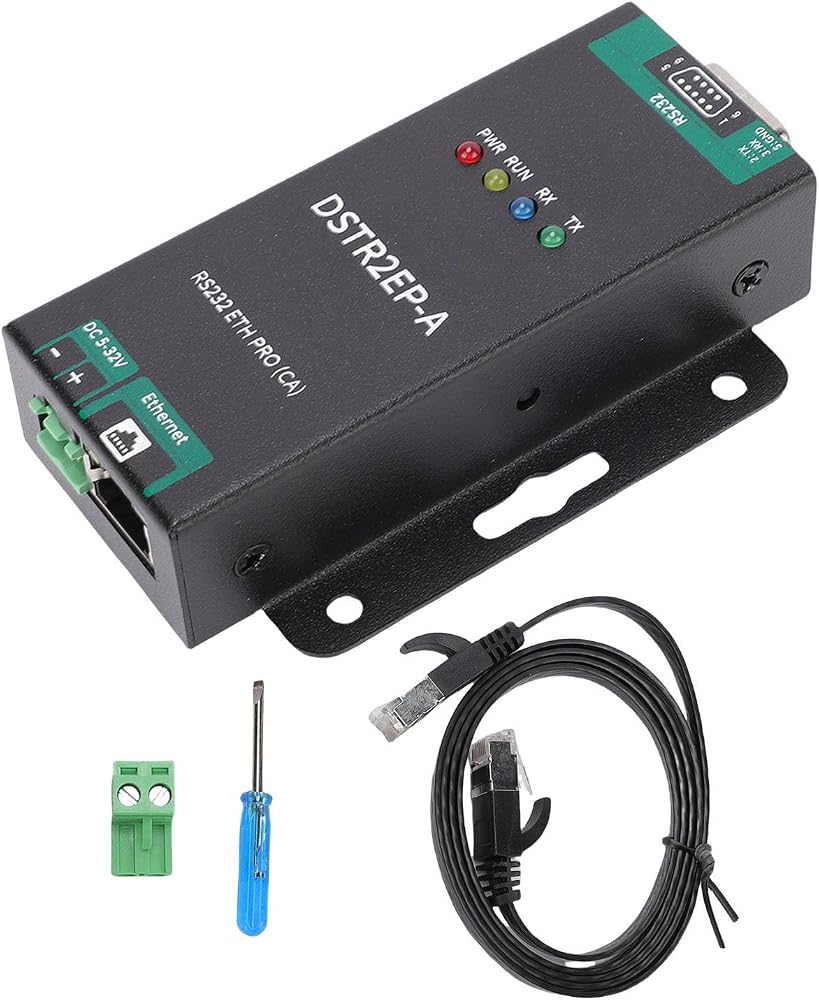

Package List:
1 x RS232 to Ethernet Module
1 x Terminal Block
1 x Screwdriver
1 x Ethernet Cable
