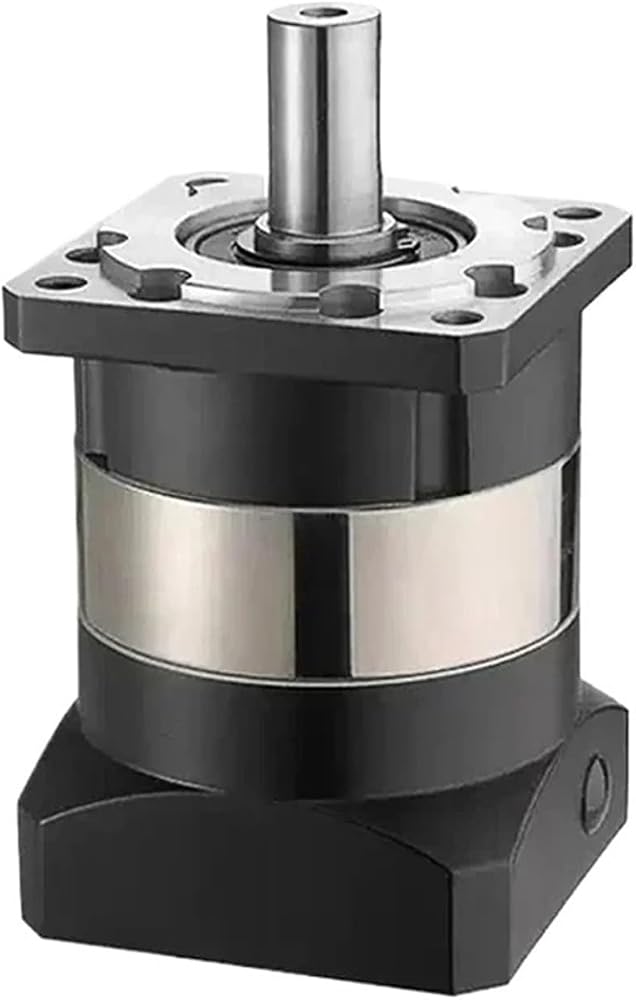

Planetary Gear Reducer Planetary Gearbox Motor Suitable for Nema 17 23 34 Stepper(Ratio 10 to 1) in Saudi Arabia Planetary Gear Reducer Planetary Gearbox Motor Suitable for Nema 17 23 34 Stepper(Ratio 10 to 1) in Saudi Arabia

Planetary Gear Reducer Planetary Gearbox Motor Suitable for Nema 17 23 34 Stepper(Ratio 7 to 1) Plf060 11mm Input Ratio 10 to 1

SAR 1,830
Brand
HCYIUWNPE
Category
Telescopes
ColorPLF060 11mm Input
SizeRatio 10 to 1
– 1 +

Special Features

  • motor
  • High-efficiency transmission:All through the gear precision meshing to reduce energy loss; suitable for long-term high load operation
  • Compact structure:Space-saving design reduces the size of the reducer; suitable for narrow installation environments
  • Flexible transmission ratios:Wide range of single-stage ratios; higher ratios can be realized with multi-stage combinations; suitable for diverse needs
  • Stable operation and low noise:Iow continuous vibration; reduced impact; low noise

Description

motor
The PLF060 is suitable for Nema 23 stepper motors with a 9.525mm input shaft.
Phase 1 (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1
Level 2 (L2): 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1
Maximum torque: 1.5 times rated torque
Emergency braking torque: 2.5 times rated torque
Backlash accuracy: L1 7 Arcmin L2 12 Arcmin Torsional stiffness: 1.8Nm/arcmin
Noise: less than 58dB
