Specification:
- Item name: cooling mount/fixing bracket with cooler
- Mount process: 3D printing
- Cooling fan voltage: 5V/12V
- Cooling fan speed: 14000RPM
- Used for FPV driving on RC cars of scale 1:14 and larger. Also compatible with fixed-wing model aircraft.

Dimension:
- Camera width: 20mm(0.79inch)
- VTX mounting hole spacing: 25.5*25.5mm(1.00x1.00inch)
- VTX mounting space length x width: 33.7x33.7mm(1.33x1.33inch)
- Bracket length x width x height: 79x40x33.7mm(3.11x1.57x1.33inch)
- Quick-release base width: 33mm(1.30inch)

Compatible VTX Models:
- For DJI O4 Air Unit Pro–Direct fit.
- For DJI O4 Wide (Modified)–This mount is designed for units upgraded with a 20mm wide lens, CNC aluminum housing, and dual antennas. If you have the stock / original O4 Wide, please select the other listing.
- For DJI O4 (Modified)–This mount is designed for units upgraded with a 20mm wide lens, CNC aluminum housing, and dual antennas. If you have the stock / original O4, please select the other listing.

Feature:
- Easy mounting and quick-release design.
- The fan comes with a protective grill to prevent rocks and branches from hitting the fan and VTX.
- Equipped with a 30mm diameter brushless fan, max speed 14,000 RPM with low power consumption. It covers the VTX effectively and ensures the VTX will not crash even when the RC car is stationary.
Mounting method (choose one option):
- Secure the bottom plate directly onto the body shell with glue / 3M double-sided tape / hot melt adhesive (not included).
- Drill 3 small holes on the RC car shell. Fasten the bottom plate and baffle to the shell using 3 screws, place the baffle inside the RC car shell.

How to Choose the Correct Fan Voltage?
- If connecting to a receiver or flight controller 5V pad, or to a battery output of 5V or lower → Choose the 5V version.
- If connecting directly to a 7.4V–12V battery or a flight controller 9V–12V pad → Choose the 12V version.
- If connecting to a BEC (step-down regulator) with a 5V output → Choose the 5V version.
Tip: Fans operate at peak efficiency under a constant, regulated voltage.

Note:
- The video transmission, car model and others in picture shown will not include.
- Size is manual measurement, there are exist errors.
- The product may be upgraded from time to time, and the appearance may change without affecting usability. Kindly note in advance.
- 3D printing products may have some flaws on the surface; it is normal and will not affect their use. Kindly note in advance.

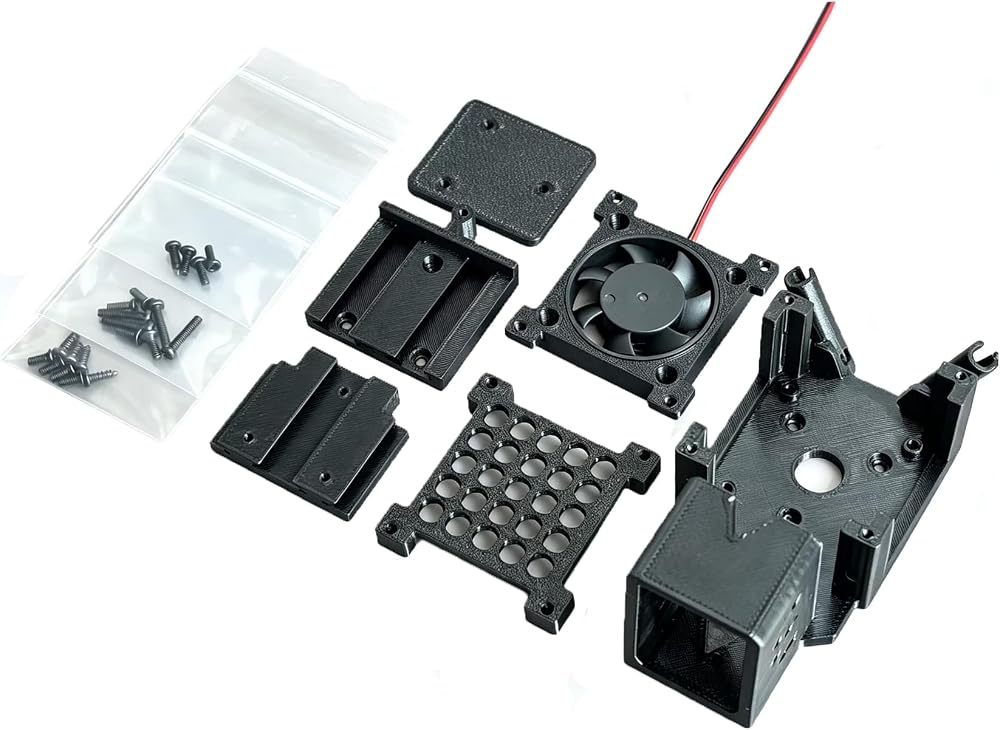

Package include:
1set x mount with cooling fan
