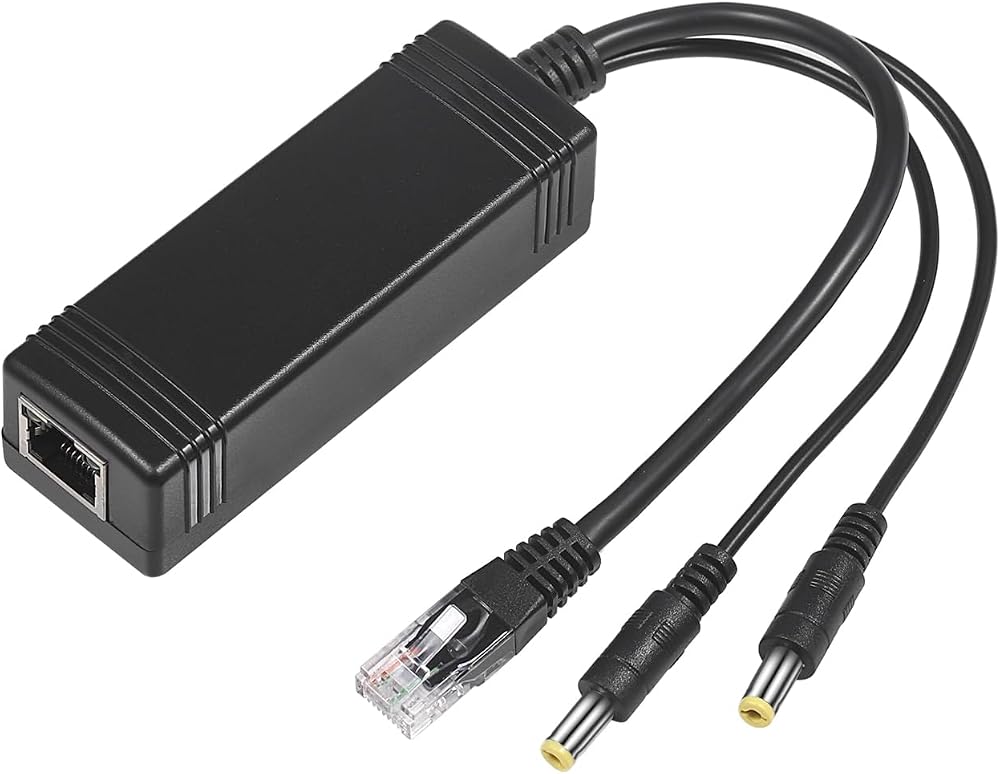

Gigabit PoE Splitter with Dual DC Output, Comply IEEE 802.3af/at, 10/100/1000Mbps, 5V 4A Max, DC 5.5 * 2.1mm Plug, Plug and Play for IP Camera, Wireless AP (PD3007G) in Saudi Arabia

Gigabit PoE Splitter with Dual DC Output, Comply IEEE 802.3af/at, 10/100/1000Mbps, 5V 4A Max, DC 5.5 * 2.1mm Plug, Plug and Play for IP Camera, Wireless AP (PD3007G) Gigabit (PD3007G)

SAR 87
Brand
REVODATA
Category
Network Adapters
Weight
72 g
SizeGigabit (PD3007G)
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【Dual DC Power Output】The device features a dual 5.5*2.1mm DC power socket design, The total output of the DC ports is 4A(Max); when both DC ports are in use, each DC port outputs up to 2A (MAX). Allowing simultaneous power supply for two different devices, the DC plug only deliver power.
  • 【Standard PoE Compatibility & Gigabit Speed】Compliant with IEEE 802.3af and IEEE 802.3at PoE standards, supporting both 1/2(+),3/6(-) and 4/5(+),7/8(-) power supply modes; supports Gigabit transmission up to 1000Mbps, compatible with 10/100/1000Mbps rates.
  • 【Easy Set up】Easy to power your device with plug and play function, Auto detect power from Power Sourcing Equipment. Auto deliver right power for terminal device.
  • 【Multiple Protection】Support the isolation circuit protection, the short circuit protection, the overvoltage protection, can effectively protect your equipment.
  • 【How to Use】Using IEEE802.3af/at PoE switch or PoE injector power the splitter, the PoE splitter will separate PoE into power and data via RJ45 port and DC port, provides power and data for Non-PoE terminal device like IP camera.

Description

Specifications：
Supports IEEE 802.3af and IEEE 802.3at PoE power supply standards
Supports 10/100/1000Mbps data transmission
RJ45 data output and dual-connector 5V DC voltage output
The total maximum output of the DC ports is 4A; when both DC ports are in use, each DC port outputs up to 2A (MAX).
Power supply method: Input terminals simultaneously support 1/2(+), 3/6(-); 4/5(+), 7/8(-)
Support the isolation circuit protection, can effectively protect electrical equipment.
Support the short circuit, overvoltage protection

Model: PD3007G
Transfer Rate: 10/100/1000Mbps
Power: Input 44V-57V
DC connector voltage output: 5V
DC connector current output: 2-4A (MAX)
Standard: IEEE802.3 af/IEEE802.3 at
TRNF: 1/2(+),3/6(-);4/5(+),7/8(-)
Transmission Distance: 10 meters to 100 meters
Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 2 DC output
Temperature: Work within -20~50°,Storage within -30~60°
Humidity: RH95% MAX (Non-condensation)
DC Plug: 5.5 x 2.1mm
Dimension: 28 x 3.1 x 2.6cm
Weight: 72g

Package Content:
1 * POE Splitter (PD3007G)
