[HIGH-SPEED CONNECTIVITY] Experience -fast data transfer with 8 external SAS Serial ATA ports that support a remarkable rate of up to 6Gb/s. This enables over 320,000 input-output operations per second, ensuring swift and efficient performance for your storage solutions, whether for critical business applications or personal use.
[MASSIVE DEVICE SUPPORT] This controller card empowers you with the capability to connect an astounding 512 SAS or Serial ATA devices, including HDDs, SSDs, and tape drives. This makes it the perfect solution for high-density storage needs, especially when expanding JBOD or external storage systems.
[STABLE PERFORMANCE] Utilizing a high-bandwidth PCIe 2.0 x8 interface, this controller card eliminates any potential system bottlenecks. This consistency in data transmission ensures that your server or workstation performs at speed without interruptions, facilitating an unparalleled workflow experience.

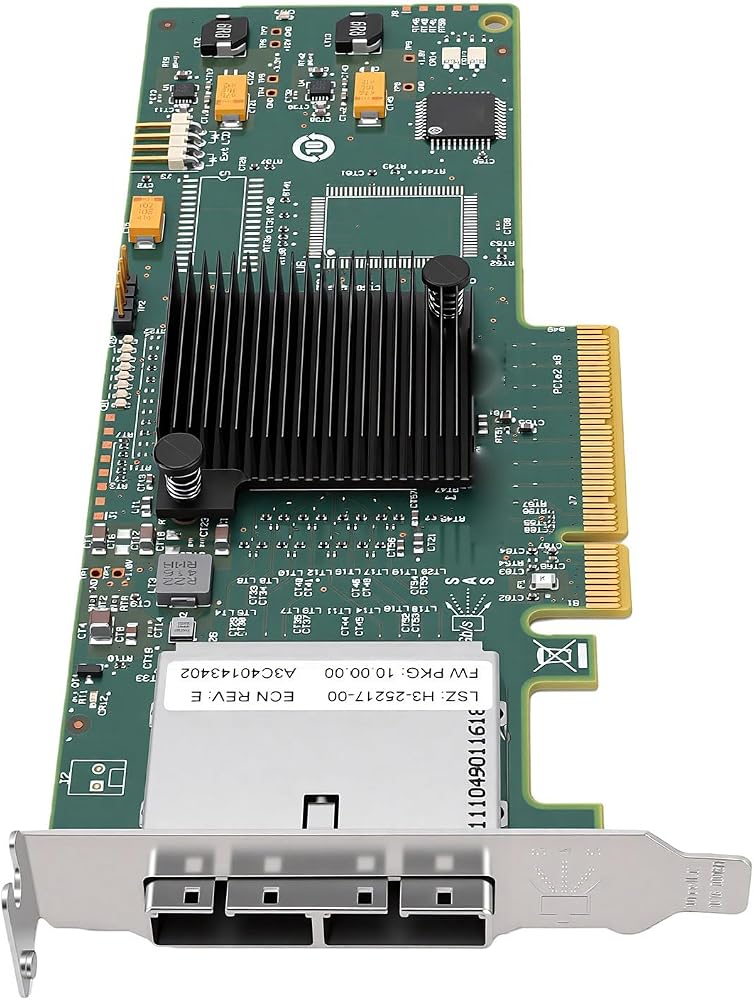

[FLEXIBLE EXPANSION OPTIONS] With dual SAS SFF-8088 ports, you can effortlessly connect multiple storage arrays while maintaining clean and organized cabling. This feature not only enhances accessibility but also simplifies future expansions, giving you the freedom to grow your storage network as needed.
[COMPACT DESIGN] The low profile design makes this controller card an ideal fit for 1U/2U rack-mounted servers and tight physical spaces. Whether you're operating in a server room or a small workstation, this card guarantees efficient functionality without compromising on space.
Description
Specification:

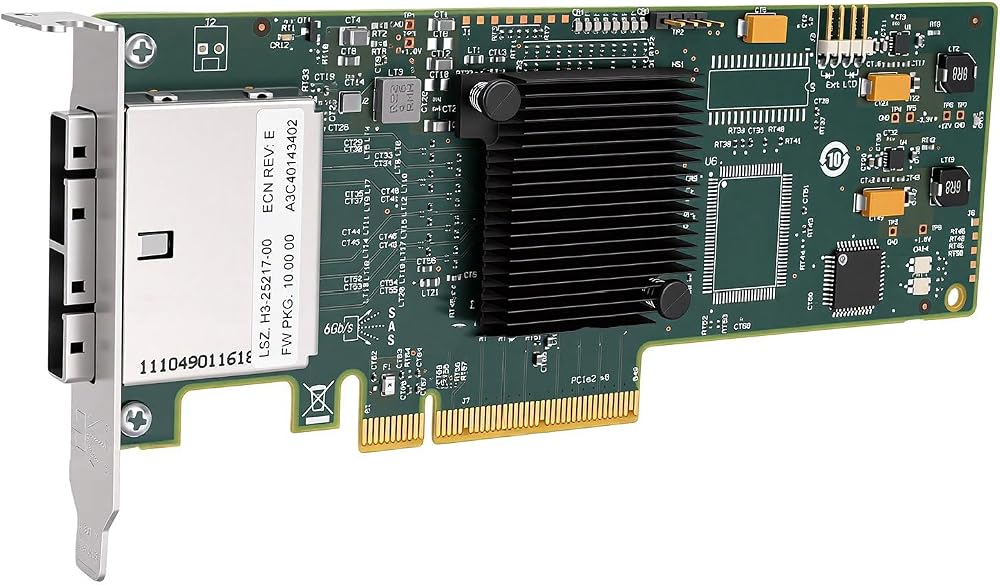

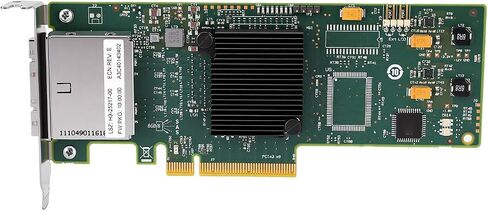

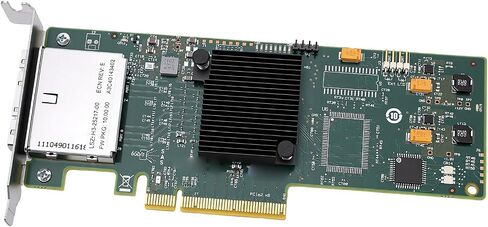

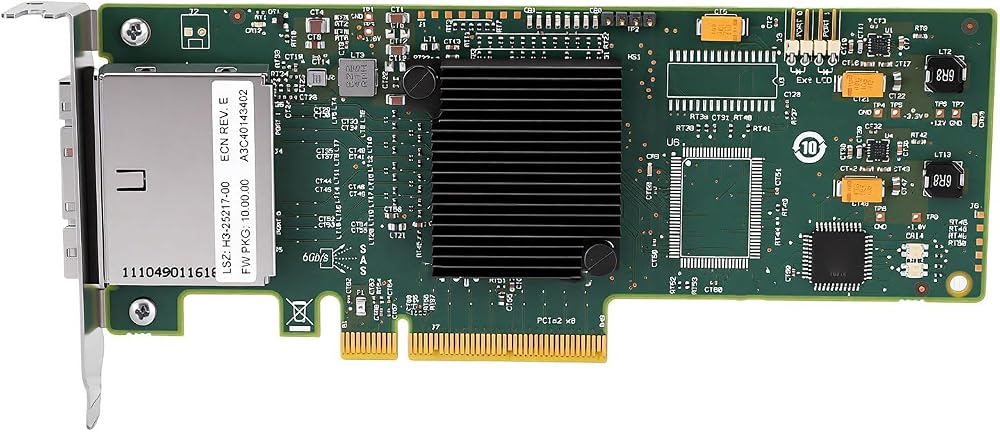

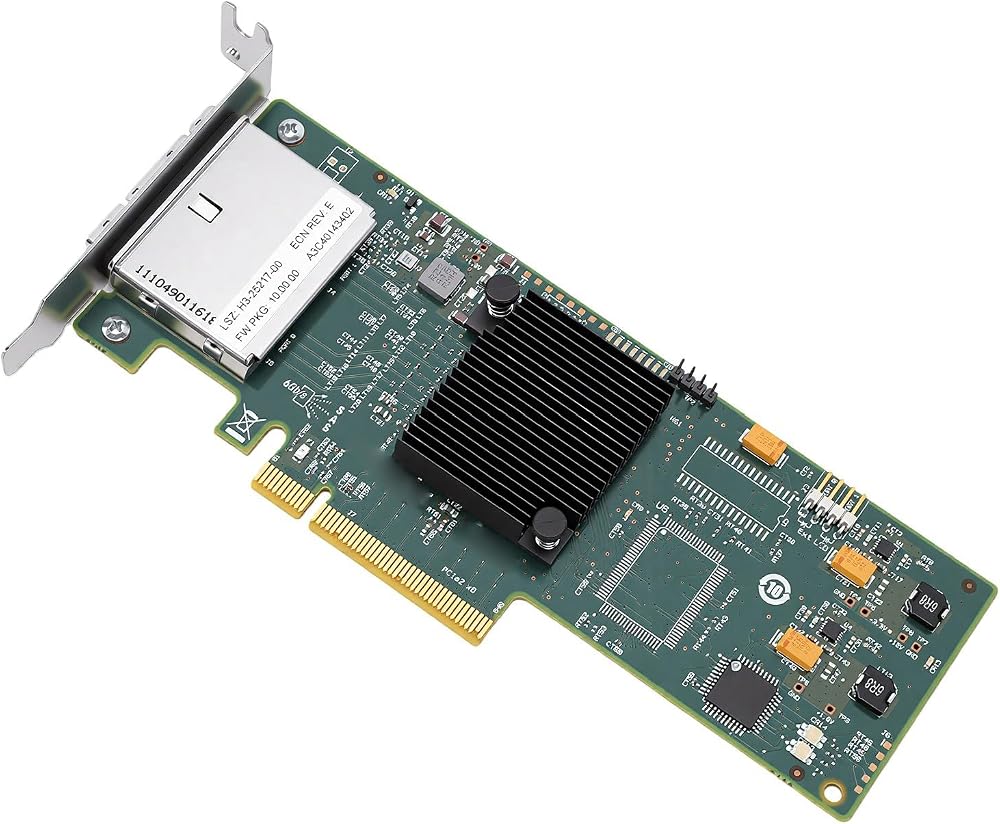

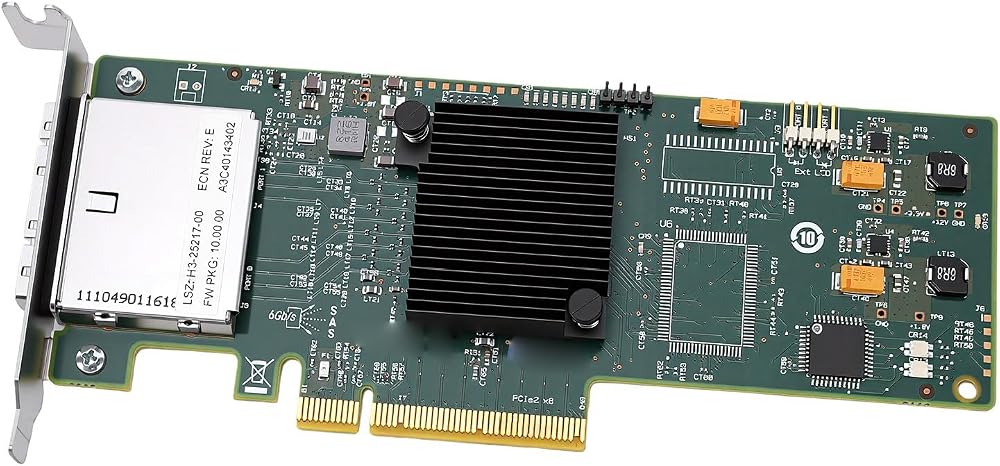

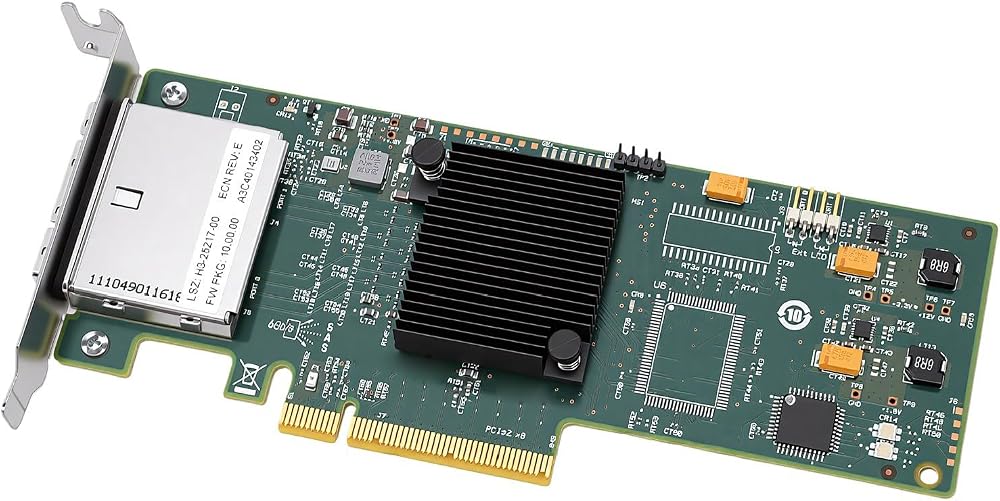

Item Type: SAS HBA Controller Board
Model: Support for LSI SAS 9200-8e (LSI00188)
Controller: Support for LSI SAS2008 (support -MPT 2.0)
Bus Interface: PCIe 2.0 x8 (5GT/s bandwidth)
External Ports:2 x SFF-8088 SAS (8 SAS channels in total)
Data rate: 6 Gb/s (SAS 2.0, backwards compatible with 3 Gb/s/1.5 Gb/s)
Maximum supported devices: SSD HDD 512 SAS Serial ATA
Input and output operations per second: >320,000 (high performanceconcurrency)
Power consumption: 13.5W
Form factor: full low profile (MD2)
Operating temperature: 0°C - 70°C
Firmware mode: IT mode (no ), JBOD compatible
High bandwidth: PCIe 2.0 x8 + 8x6 Gb/s SAS, ideal for big data, high throughput
Compatibility:
Supports SSD SAS Serial ATA HDD tape drives
Compatible with 4Kn drives (4096 byte )
BIOS compatible UEFI
OS support: Support for , Support for Support for VMware
Application:
NAS storage servers (support for , support for , support forUnRAID)
External Storage Expansion
Virtualization Database High IO Scenarios
