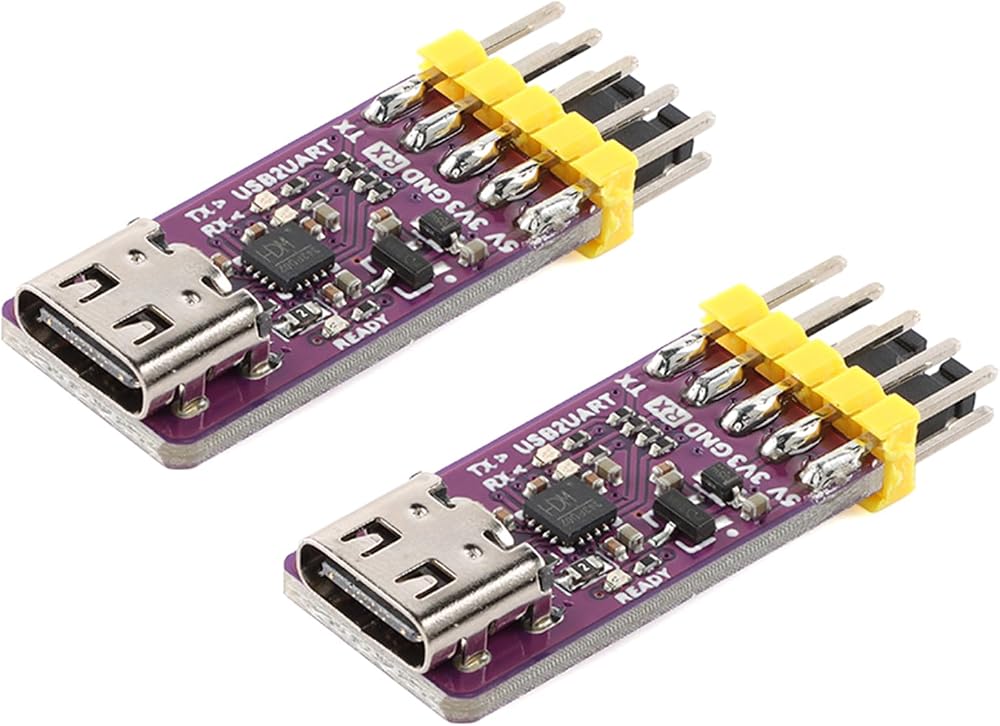

2Pcs USB to Serial Port Adapter Module Board 5V/3.3V TTL CH343P Debugging Burning Downloader Serial Port Adapter USB Type-C Board

SAR 63
Brand
EC Buying
Category
Internal Cards
– 1 +

Special Features

  • Effortlessly connect your devices with the advanced USB to Serial Port Adapter Module Board featuring CH343P, enabling high-speed data transfer up to 6Mbps while supporting both 5V and 3.3V TTL levels for versatile compatibility
  • Simplify debugging and burning processes with this compact Debugging Burning Downloader board, which offers full-speed USB 2.0 connectivity and built-in CDC/VCP drivers for seamless integration across multiple platforms
  • This USB Type-C Board ensures reliable communication with its RTS and DTR support, allowing precise control signals for efficient serial port operations in various applications
  • The unique ID (USB Serial Number) embedded in the CH343P chip enhances device identification, while the adjustable VIO pin provides flexible voltage options from 1.8V to 5V for your 5V/3.3V TTL projects
  • Experience enhanced functionality with an all-in-one Serial Port Adapter USB module that includes EEPROM configuration for customizing VID, PID, and current limits, ensuring optimal performance tailored to your needs

Description

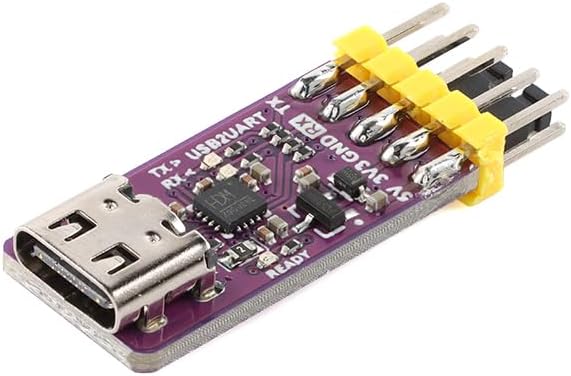

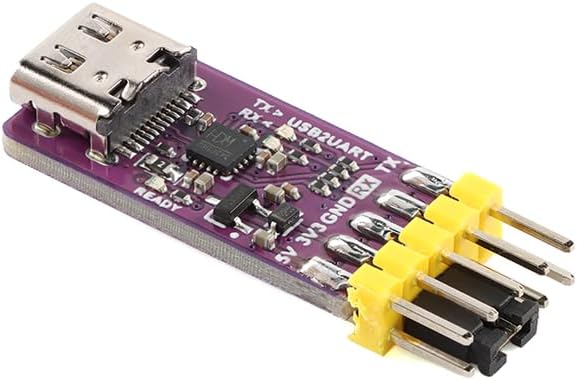

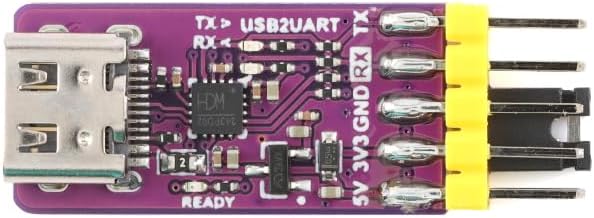

USB to serial port module based on CH343P, equipped with RTS and DTR
Full speed USB device interface, compatible with USB 2.0
Supports communication baud rates of 50bps~6Mbps
Optional 3.3V/5V TTL level input and output, while supporting external target level setting, with a level range of 1.8V~5V Support installation free operating systems with built-in CDC class drivers or multi-functional high-speed VCP vendor drivers CH343P has built-in EEPROM and can configure parameters such as chip VID, PID, MAX current value, and product information string
The chip has a built-in Unique ID (USB Serial Number)

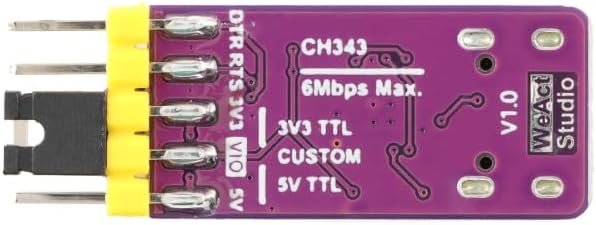

Level selection
When VIO is connected to 3V3 through a short-circuit cap, the TX/RX/RTS/DSR level is 3.3V
When VIO is connected to 5V through a short-circuit cap, the TX/RX/RTS/DRR level is 5V
3. When the VIO is connected to the power supply of the target device, TX/RX/RTS/DRR is determined by the power supply of the target device, and the level range needs to be between 1.8V and 5V
4.5V/3V3 does not have anti backflow function. When the target device is powered on, it cannot be connected to 5V or 3V3. Common ground is sufficient
