Package Contents

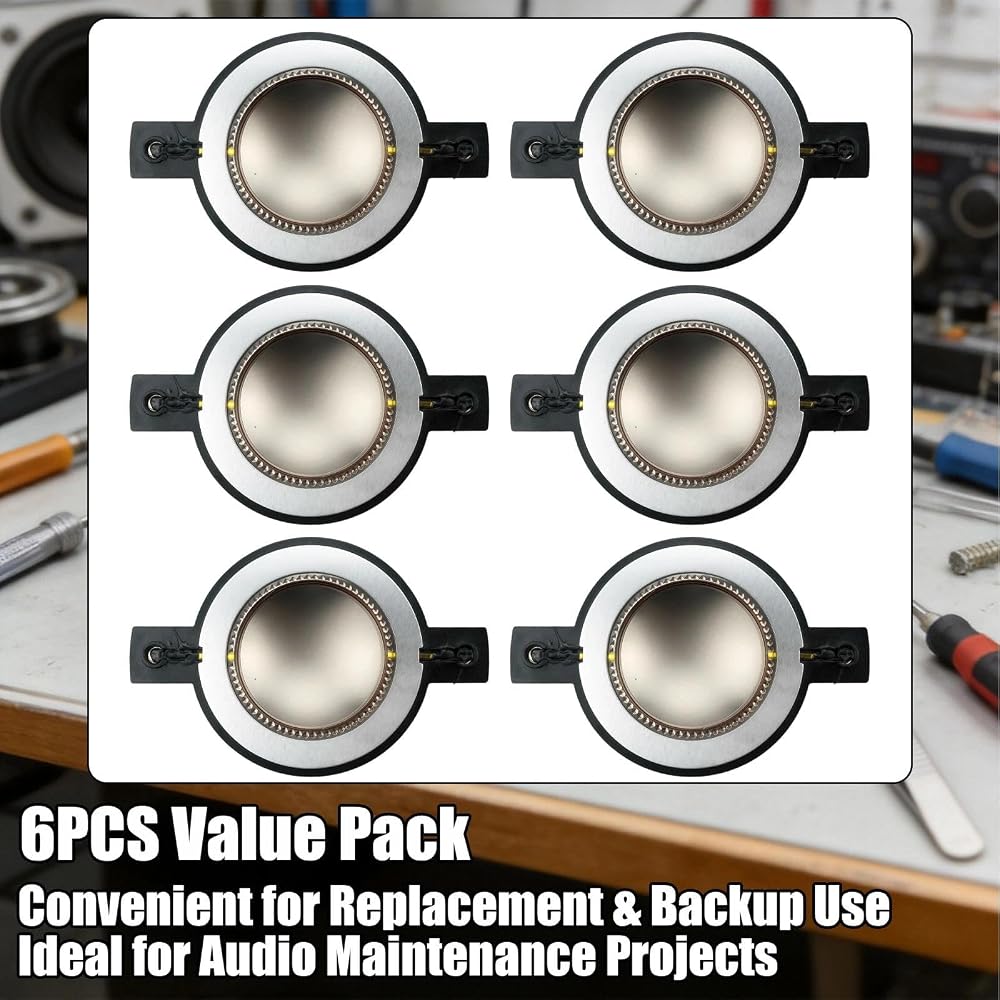

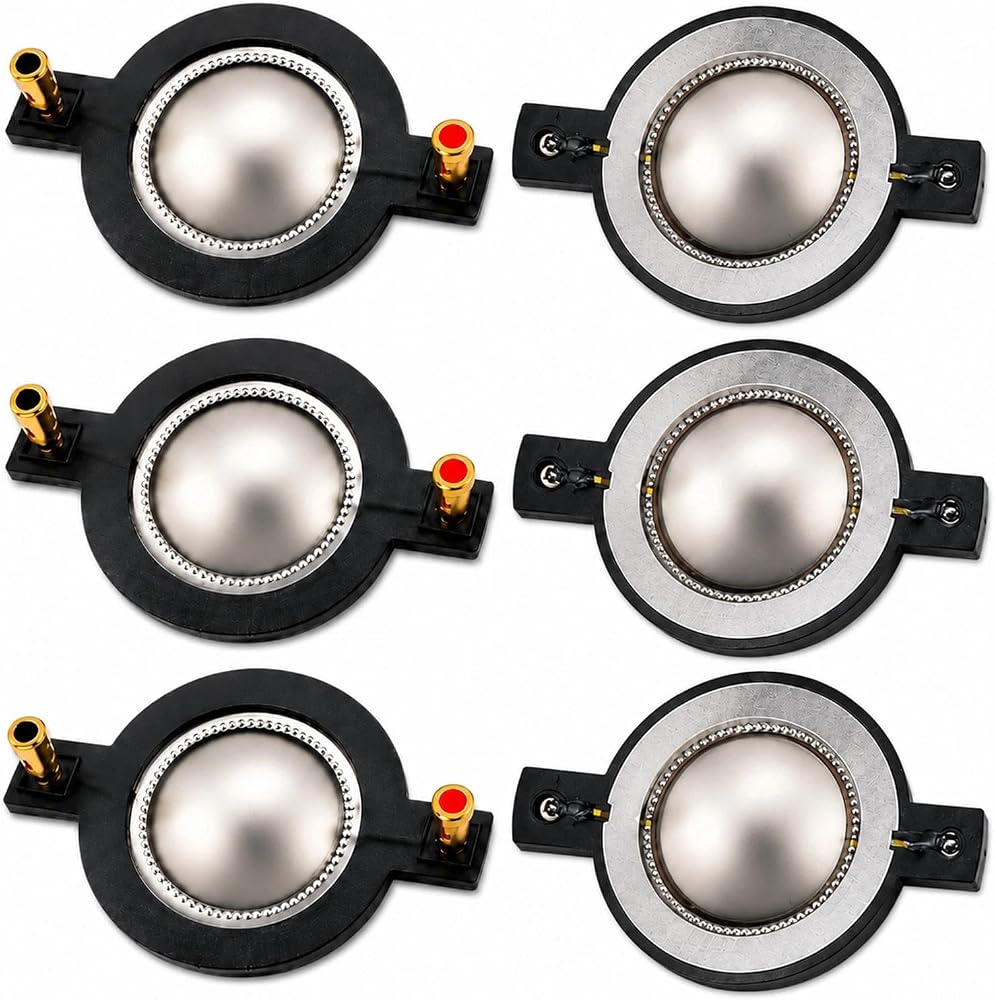

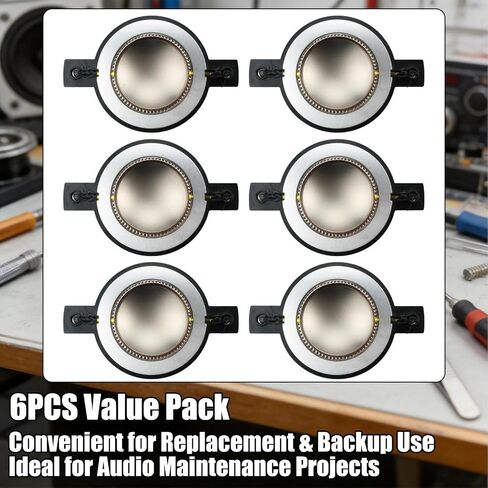

6 x Tweeter Diaphragm Assemblies
Each package includes six complete replacement diaphragm assemblies for multiple horn driver repairs, audio system maintenance or spare use.
Compatibility Information

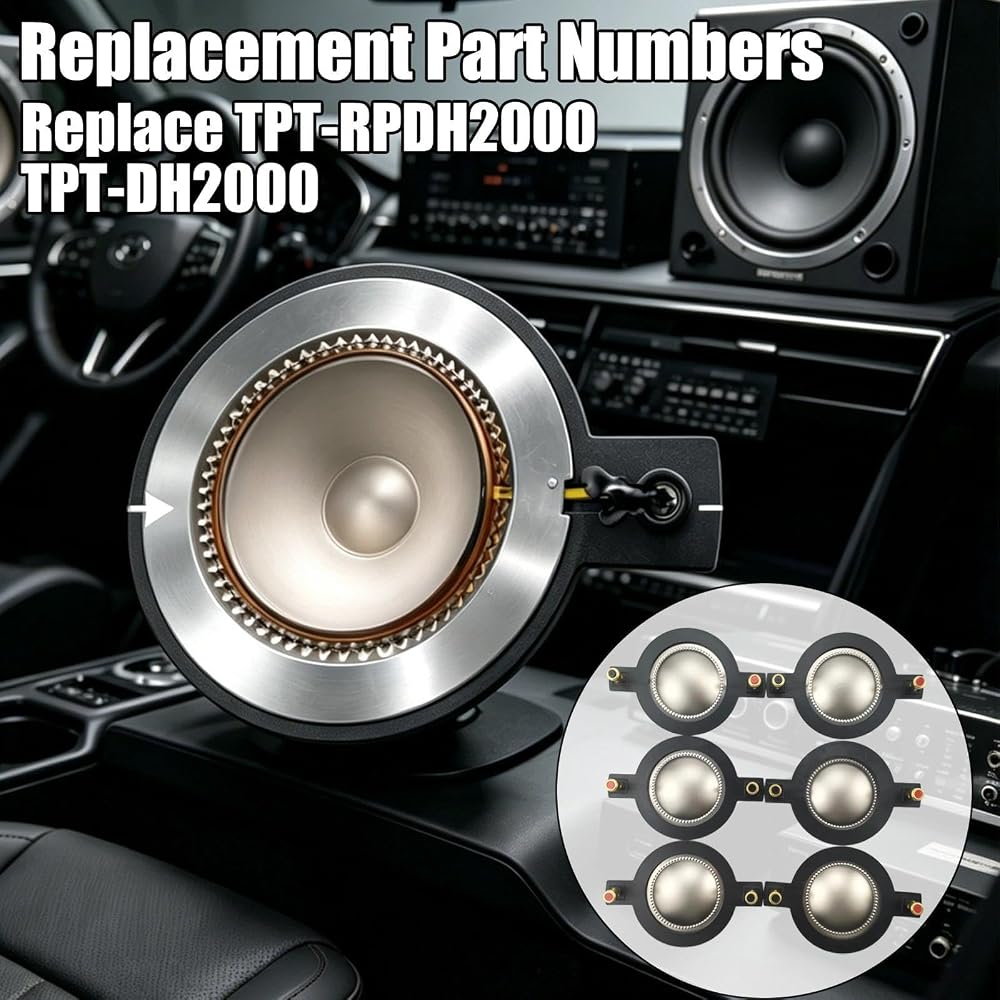

Fit for Timpano Tempesta TPT-DH2000 and TPT-DH2000 PRO horn drivers. Replacement Part Numbers: Replace TPT-RPDH2000.

Please compare the original model number, diaphragm shape, mounting holes, terminals and dimensions before ordering. TPT-RPDH2000 is the replacement diaphragm part number, not the horn driver model number.
Product Specifications

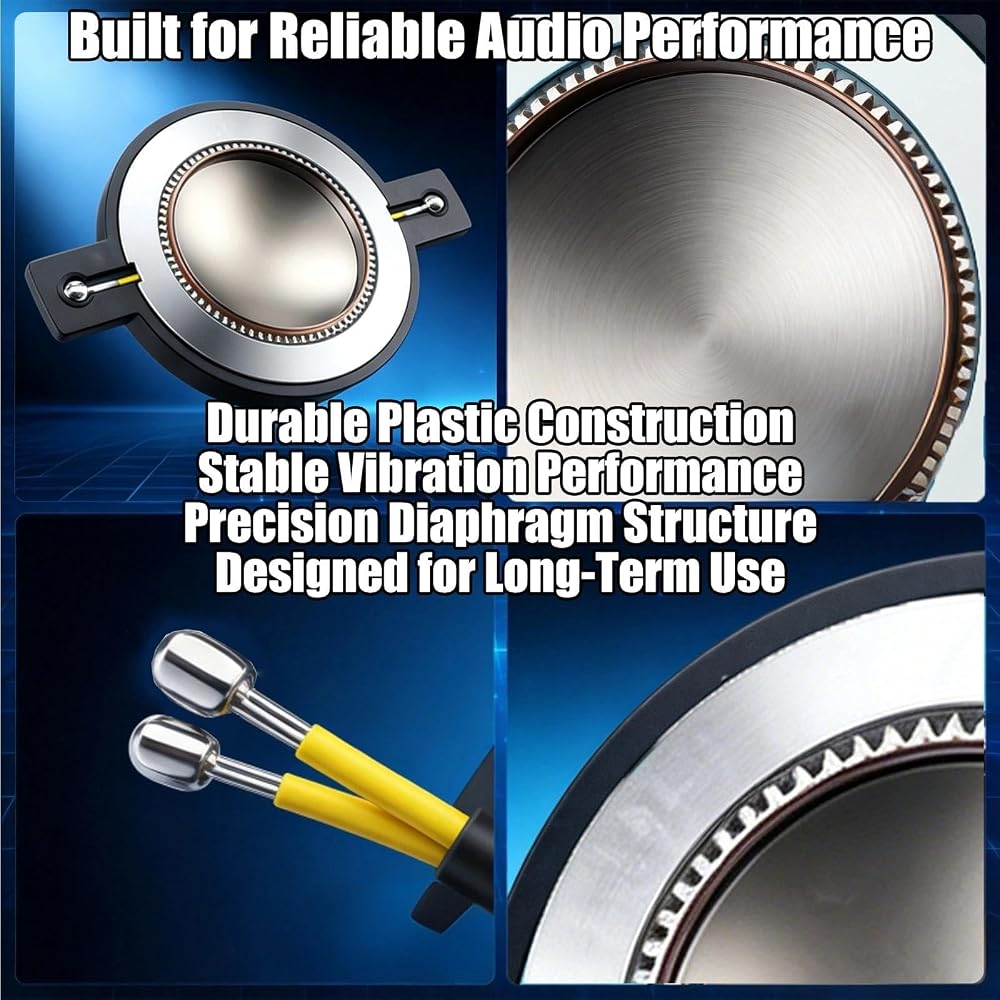

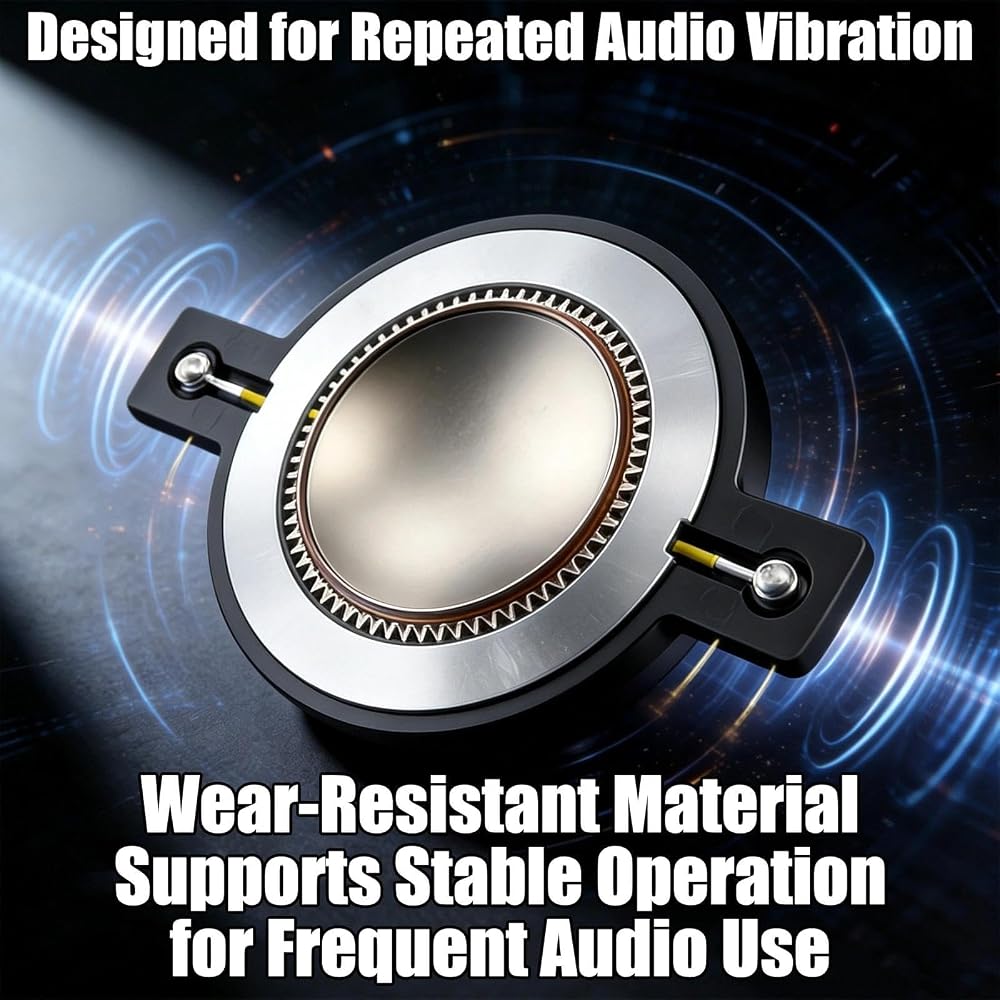

Impedance: 8 Ohms Voice Coil Inner Diameter: Approximately 51.3 mm Outer Frame Diameter: Approximately 83 mm Titanium Dome Depth: Approximately 10 mm Structure: Titanium dome with metal support frame Package Quantity: 6 diaphragm assemblies

Note: Dimensions are approximate manual measurements. Slight measurement differences may occur.
Common Replacement Situations
This tweeter diaphragm is suitable for replacing a worn, blown or damaged diaphragm that may contribute to: Weak treble output Distorted sound Reduced high-frequency output Unclear or intermittent high-frequency response

Replacing the damaged diaphragm may help restore normal horn driver operation without replacing the complete driver unit.

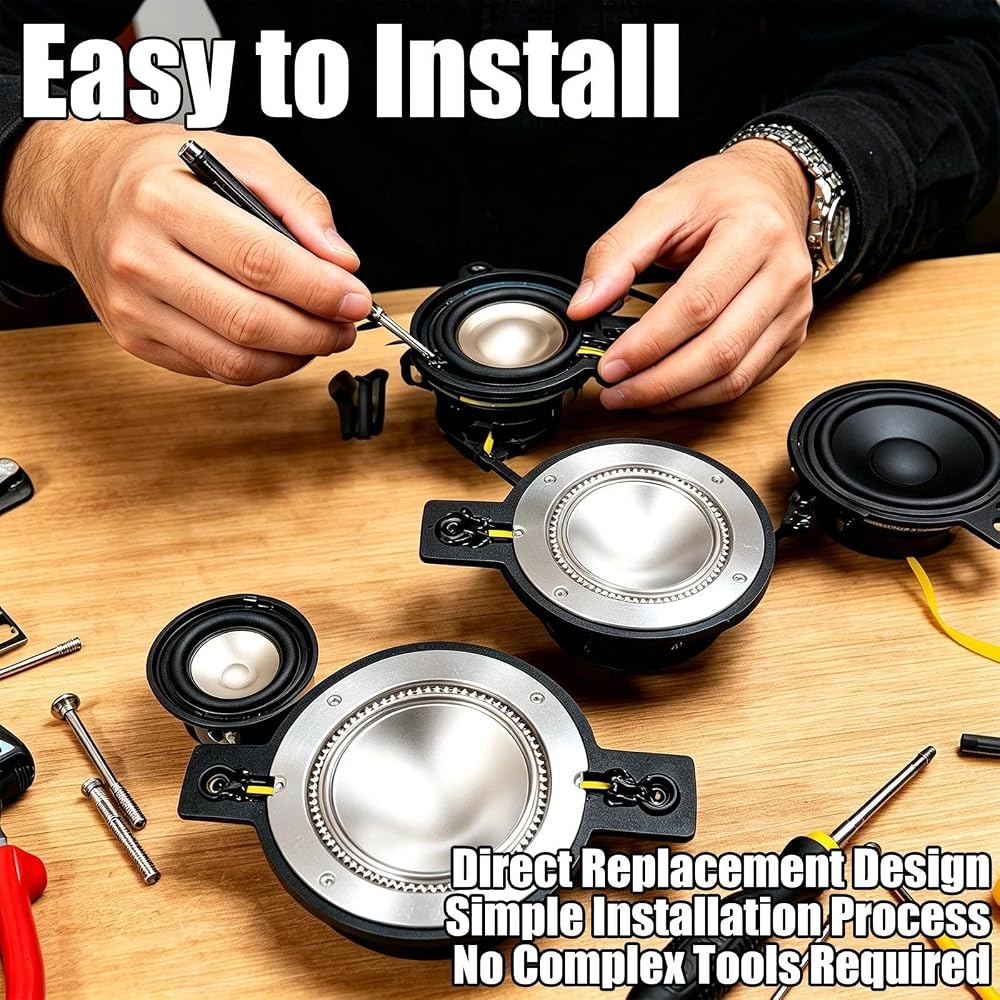

Installation Steps

Turn off and disconnect power from the audio equipment. Remove the compatible horn driver cover or housing. Note the original wiring position and terminal polarity. Remove the screws and damaged diaphragm assembly. Carefully clean dust or debris from the mounting surface and surrounding area. Position the replacement diaphragm and align it with the mounting holes. Reconnect the wiring to the correct terminals. Tighten the screws evenly without overtightening. Test the horn driver at low volume before returning to normal use.

Follow the horn driver manufacturer's recommended power and crossover settings. Incorrect alignment, excessive power or improper crossover settings may affect diaphragm performance.
Care and Use Notes

Avoid prolonged use above the recommended power level. Keep the diaphragm and driver interior away from moisture and dust. Check wiring and terminal connections if the sound becomes intermittent. Do not press or deform the titanium dome during installation. Store unused diaphragms in a clean and dry location.
