Overview

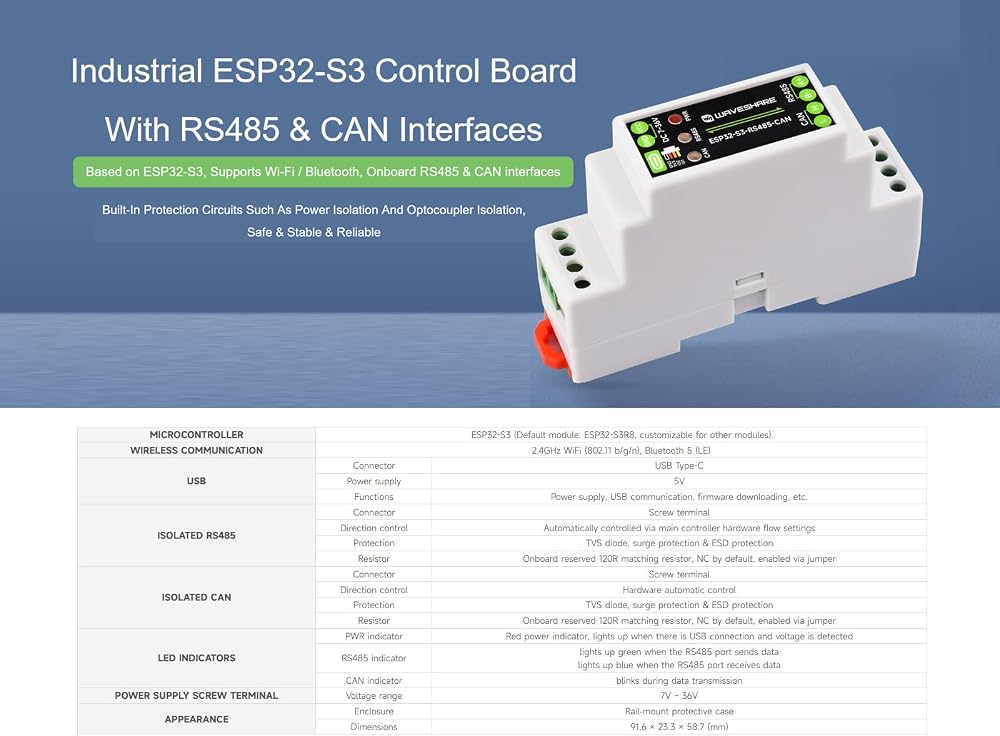

Industrial ESP32-S3 Control Board With RS485 And CAN Communication Interfaces, Supports Wi-Fi / Bluetooth, Built-in Multiple Protection Circuits

Features
Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, with superior RF performance
Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
Onboard isolated CAN interface for easy access to various CAN devices

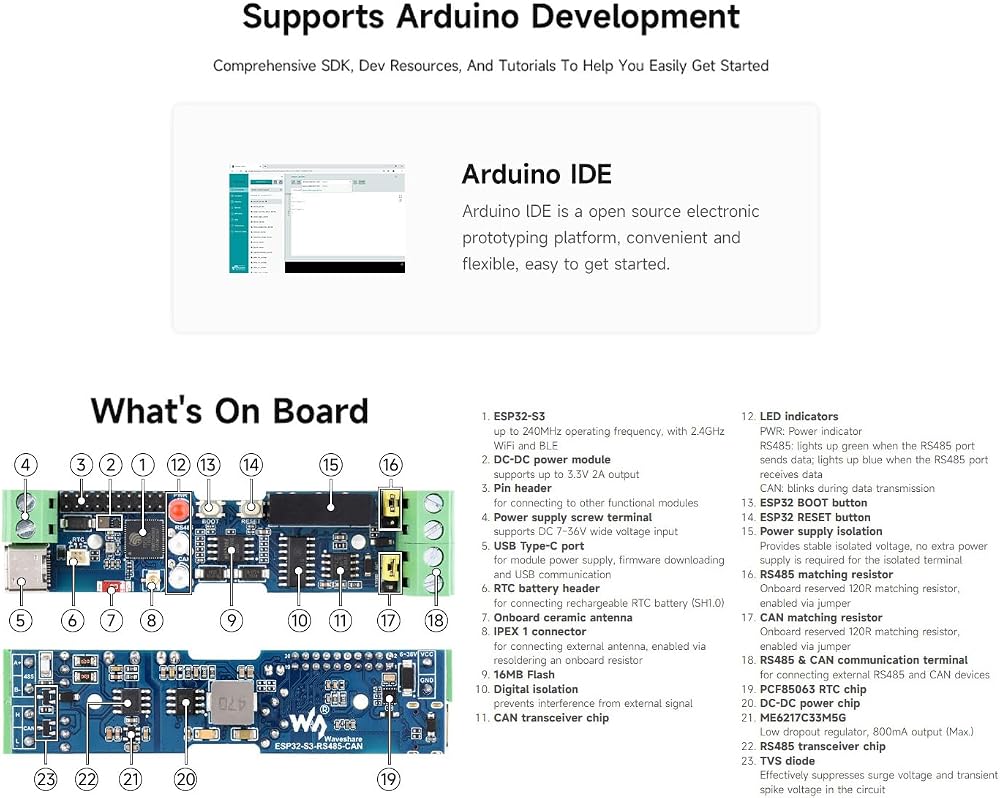

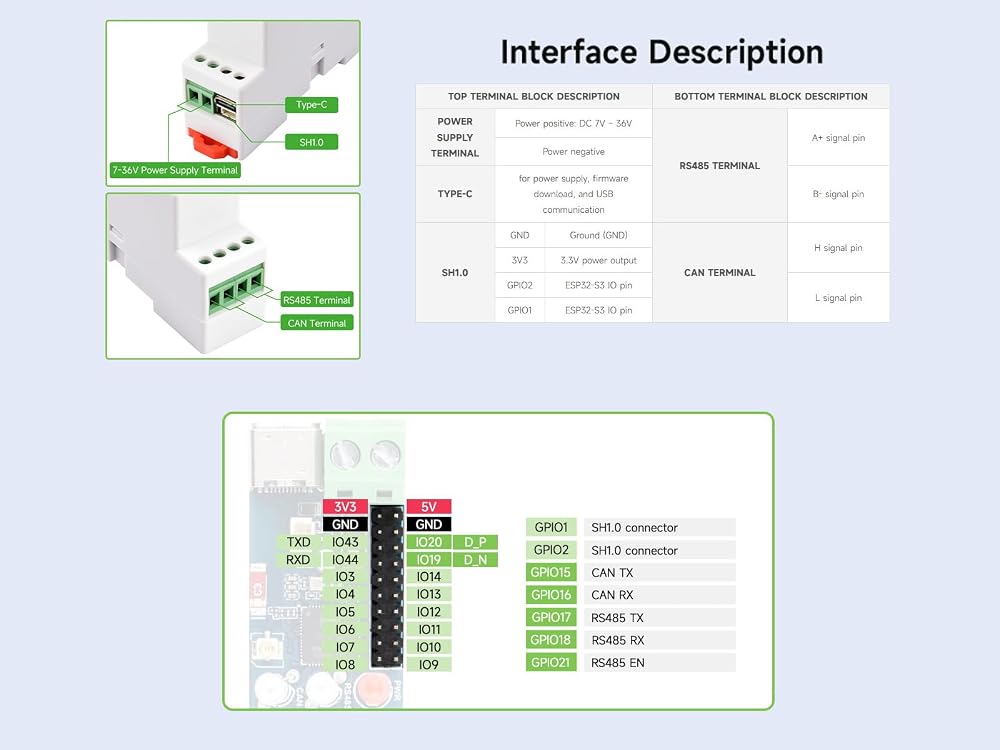

Onboard pin header for connecting external devices
Onboard USB Type-C port for power supply, firmware downloading and debugging
Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
Onboard RTC chip, supports scheduled tasks

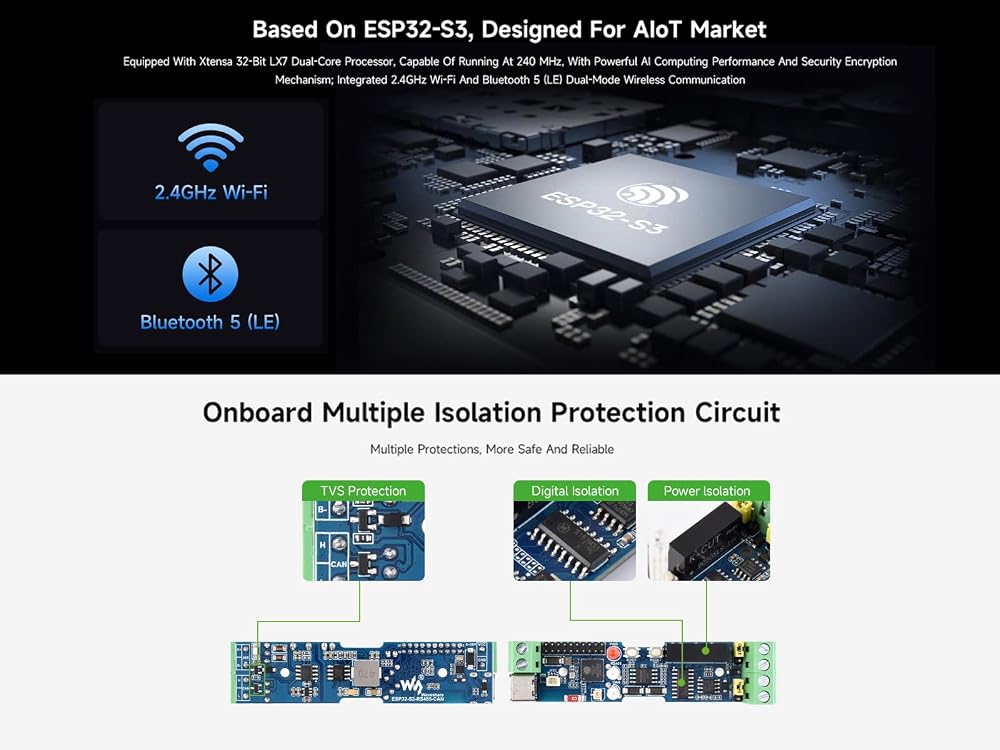

Onboard digital isolation to prevent interference from external signal
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal
Onboard RS485 TX/RX indicators and CAN indicator for monitoring the operating status of the module

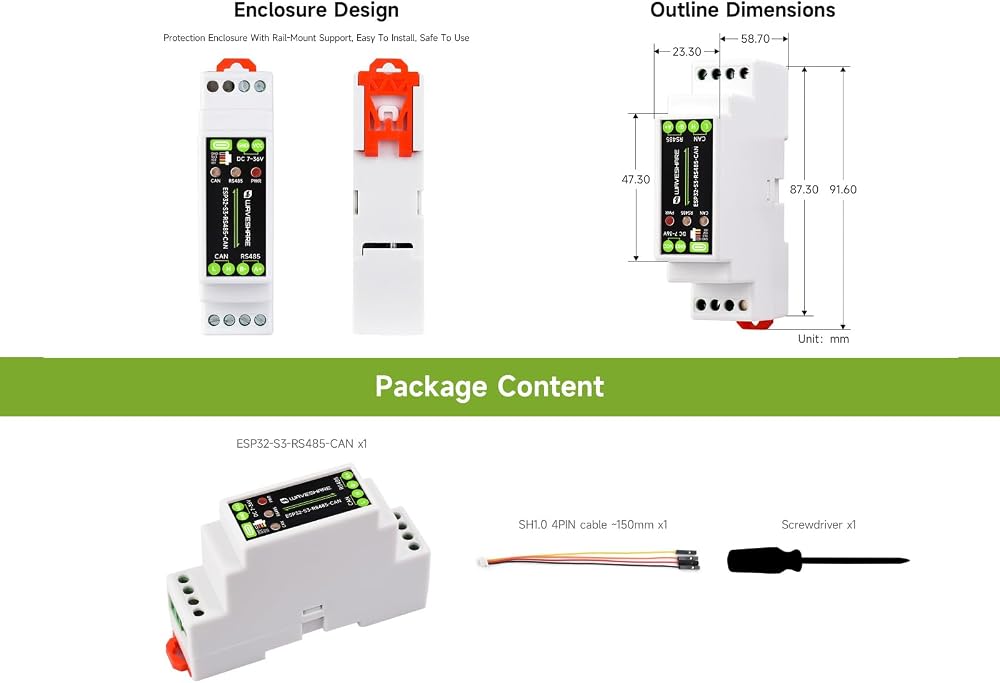

Rail-mounted protective case, easy to install, safe to use

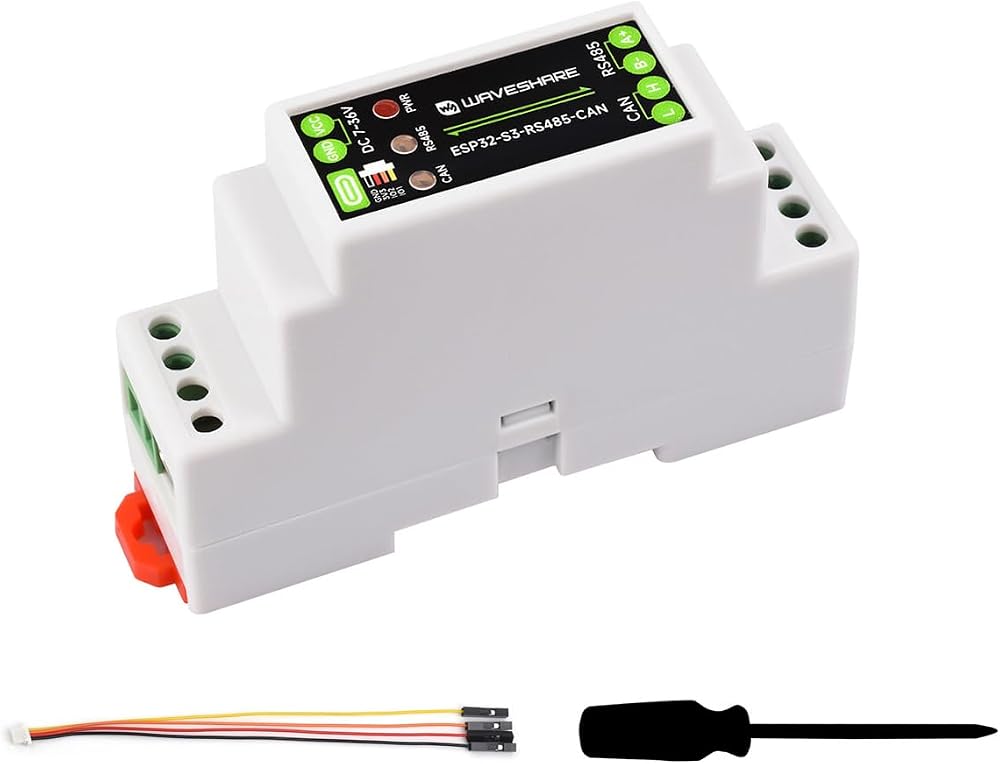

Package Content
ESP32-S3-RS485-CAN x1
SH1.0 4PIN cable ~150mm x1
Screwdriver x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
