Special Features

It can extend one 3G-SDI or HD-SDI Video/Audio signal over a fiber optic to far end, long transmission distance, Single-mode fiber can up to 12.4 Miles (20Km). with two 3.125G SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal.
Support SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@60/30/25, 1080i@60/50 59.94 and more.
Support Video loop out function and one reverse RS485 data, Supports embedded digital audio stream. the 10/100Mps ethernet (RJ45 port) can extend your networking signal through a fiber optic to far end up to 12.4miles, also can use for IP camera with RJ45 port and More.
Single-mode and multi-mode compatible, single-mode transmission distance up to 12.4Miles (20Km), multi-mode transmission distance up to 500M.
Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.

Description

Function:

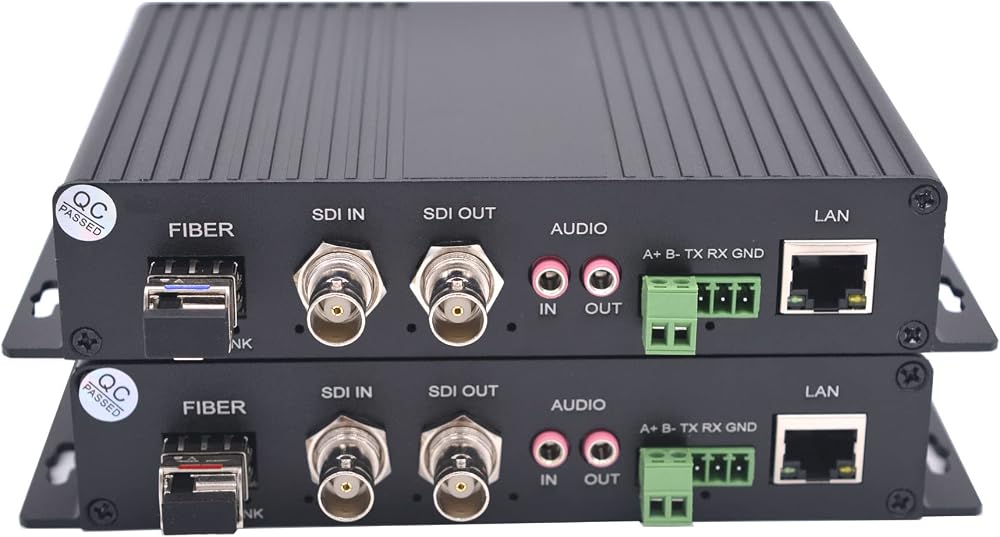

1 x 3G-SDI with loop out.
1 x 10/100Mbps Ethernet.
1 x 3.5mm Audio (Bi-directional).
2 x Audio (Bi-directional, RCA connector).
1 x RS-485 data (reverse direction).
LC fiber connector, Singlemode fiber 0-20Km.

Specification:
Working voltage:AC100V~240V,DC5V/2A(US/EU/UK/AU plug adapter optional)
Outer box size: 172x112x32mm (LxWxH)
Weight :1.2Kg per set.
Package: carton box

Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
1 x 3M LC-LC SM fiber patch cord
2 x External Power supply adapters (US/EU/UK/AU standard is optional)
1x User Manual
