Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system

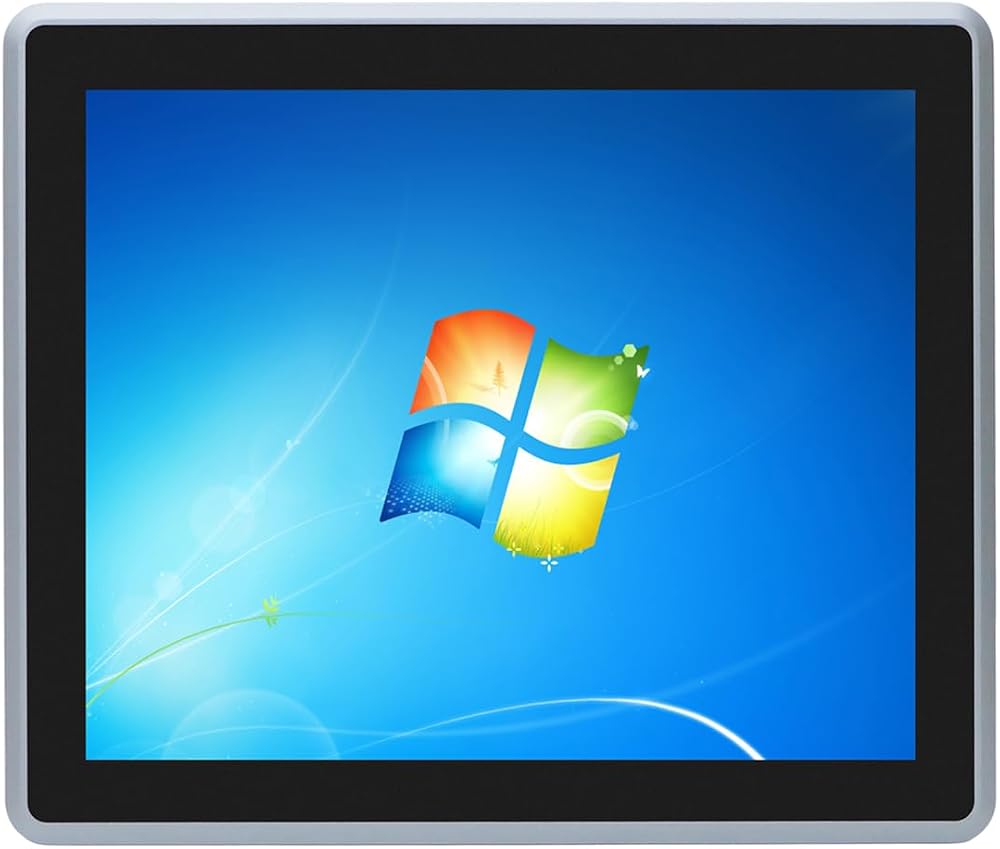

Model Number: ANDAQI PX10
Panel: 17" TFT LCD panel, IP65 full flat front panel
CPU: Core I3 Gen. 3th CPU, ship one of them
Memory: 1 x SODIMM DDR3/L 1333/1600, MAX. 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
I/O: Power Switch, Audio, 2 x COM COM1/COM2 for RS232/RS485, 4 x USB3.0, 2 x LAN, CLR CMOS, HDMI, DC_IN
Expansion: 2 x Mini PCIE slot for WiFi/BT/3G/4G, with sim slot
Network Card: 2 x Realtek Gigabit LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 408.5 x 346 x 78mm
Embedded Installation: 389 x 321mm
Weight: 5.5kgs
Resolution: 1280 x 1024
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 5 : 4
Touch Screen: Resistive high sensitivity touch screen
Life Time: The touch life can reach more than 50 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Work Temperature: -20 °C ~ 60 °C for SSD, surface air flow
Work Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V, customizable DC 9~36V wide voltage input
Packing List: ANDAQI PX10 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0～255 level
System Support: Windows 11, Linux Ubuntu etc
