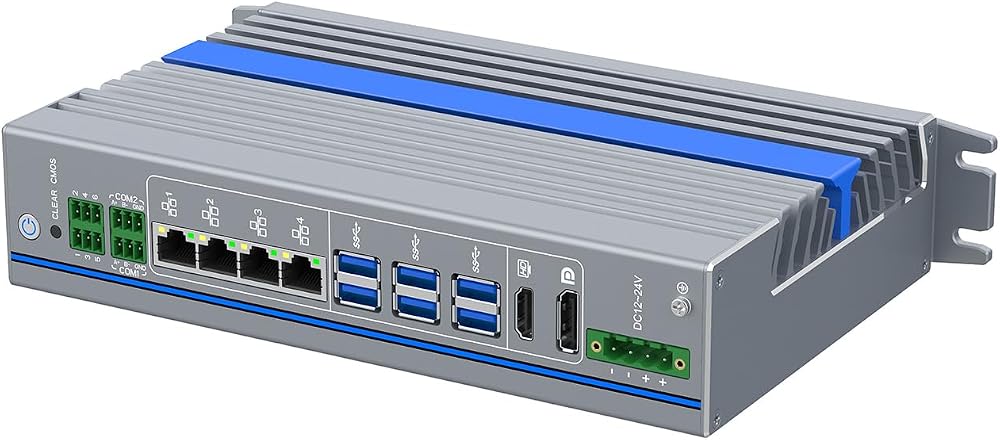

DIN Rail Industrial Computer, Q670 I3 12300T, IX24, 2 x RS485 Optical Isolation, 4 x LAN, 12-24V 4-pin Phoenix, Expandable CAN, 0 RAM, 0 Storage, Barebone No System in Saudi Arabia

DIN Rail Industrial Computer, Q670 I3 12300T, IX24, 2 x RS485 Optical Isolation, 4 x LAN, 12-24V 4-pin Phoenix, Expandable CAN, 0 RAM, 0 Storage, Barebone No System I7 12700T 32G RAM 256G SSD 1TB HDD

SAR 4,029
Brand
ANDAQI
Category
Computer cases
Size32G RAM 256G SSD 1TB HDD
StyleI7 12700T
– 1 +

Special Features

  • Powered by q670 chipset i3 12300t processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work, application for industrial automation, medical, logistics, transportation, warehousing, e-education etc, side mount din rail
  • Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
  • Fanless passive cooling design, silent solution that's ultra energy-efficient
  • ANDAQI IX24 with power switch, clear cmos, switch signal for remote switch and power supply indicator light, 2 x rs485 optical isolation, 4 x lan, 6 x usb3.0, hdmi, dp, dc_in 12-24v 4-pin phoenix terminal, industrial aesthetic design and reasonable interface layout, support auto power on, timing boot, wake on lan, pxe boot, watchdog 0～255, tpm2.0
  • Size at 265 x 146 x 50mm, 2.21kgs, 12v10a power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance, very powerful industrial computer

Description

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: ANDAQI IX24
Material: Aluminum
CPU: Core I3 12300T Processor 12M Cache, up to 4.20 GHz
Chipset: Q670
Memory: 2 x SODIMM Up to DDR5 4800 MT/s, MAX.96GB
Storage: 1 x M.2 2280 M-Key NVME/SATA X1 SSD, mSATA SSD
Network: 3 x I210-AT Gigabit LAN, 1 x I219-LM Gigabit LAN
Expansion: 1 x Full Length Mini PCIE slot for WiFi/4G, with Nano SIM slot
WiFi: Wi-Fi 6 802.11AX
Bluetooth: 5.2
Optional Expansion: CAN module etc
I/0 Port: Power Switch, Clear CMOS, Switch Signal for Remote Switch and Power Supply Indicator Light, 2 x RS485 Optical Isolation,
4 x LAN, 6 x USB3.0, HDMI, DP, DC_IN 12-24V 4-pin Phoenix Terminal
Power: DC100-240V AC/50-60hz, 12V10A
Operating Temperature: -20°C ~ +50°C, surface air flow
Working Humidity: 5%~95% non-condensing
Size: 265 x 146 x 50mm
Weight: 2.21kgs
TDP: 35-69W
Cooling system: Fanless
Packing List: ANDAQI IX24 book-style industrial computer with side mount din rail, power supply, power cord, WiFi antennas, warranty card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0～255 level, TPM 2.0 security encryption
Installation: Supports Desktop, Din Rail, Book-Style vertical flat wall-mounted and other fixing methods, default as side mount din rail method
System Support: Windows 11, Linux Ubuntu etc
