Power Output Voltage 29.4Vdc
Min.Load：1A
Output Power 30W
Nominal Voltage:100-240Vac
Variation Range:90-264Vac
Nominal Frequency:50/60Hz
Variation Frequency:47-63Hz
0.8Arms max At any input voltage and rated, DC output rated load.
30Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient. 0.25mA Max At 240Vac input.
PROTECTION REQUIREMENT:
Short Circuit Protection: The power supply will be auto recovered when short circuit faults remove.
Over current Protection: The power supply will be auto recovered when over current faults remove.
Over Voltage Protection: The power supply will not be auto recovered when faults remove.
Operating Temperature:
0℃~ -40℃,Full load Normal operation.
0℃to40℃,Full load Normal operation.
Storage Temperature:-20℃to85℃,With package
Relative Humidity:
5%(0℃)～90%(40℃),
5%(0℃)～90%(40℃)RH,72Hrs, Full load Normal operating.
Package include: 1x battery charger
5x power adapters.
Tip: To make your batteries last 10X longer, avoid using batteries below 35% and don't charge above 85-90%

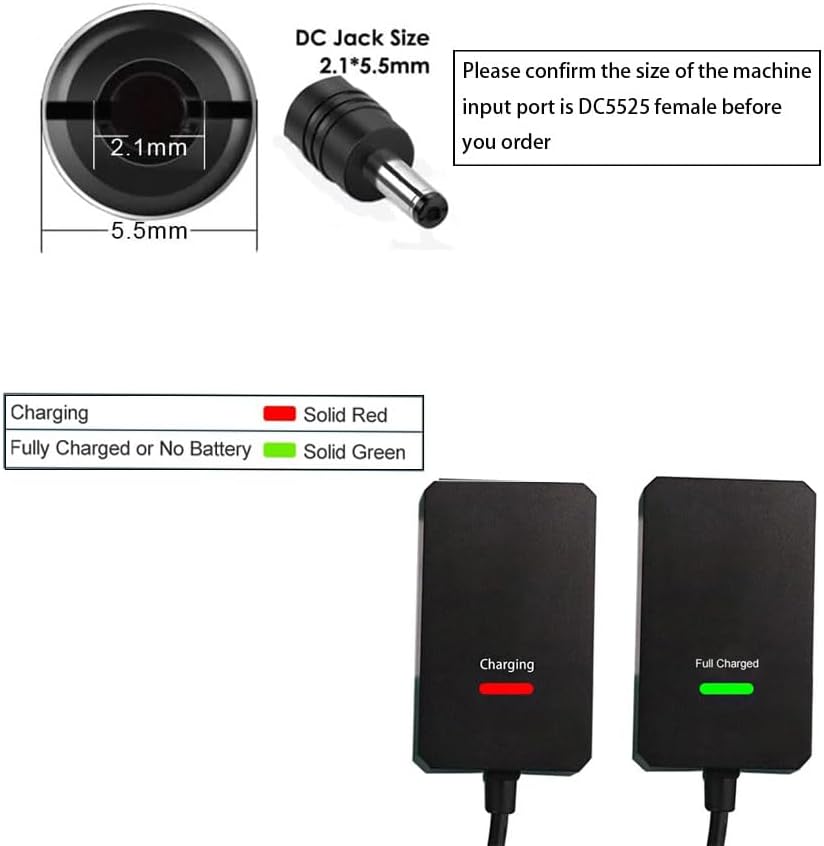

LED indicator: No load green light, load red light, full of green.

Key Points for Purchase & Use

Critical Matching: Must verify the output voltage (29.4V), connector type (5525 / 5521/4017/4817/40135/35135/6030, etc.) and plug polarity at the same time; all three are essential.

Battery Distinction: 29.4V chargers are only suitable for 7-series ternary lithium batteries. They must not be used for 8-series lithium iron phosphate batteries (full charge approx. 29.2V). Mixing them may cause overcharging or incomplete charging.

How to Confirm: Check the nominal voltage (29.4V) on the nameplate or battery pack, or the output voltage (29.4V) marked on the original charger.
