Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer in Saudi Arabia

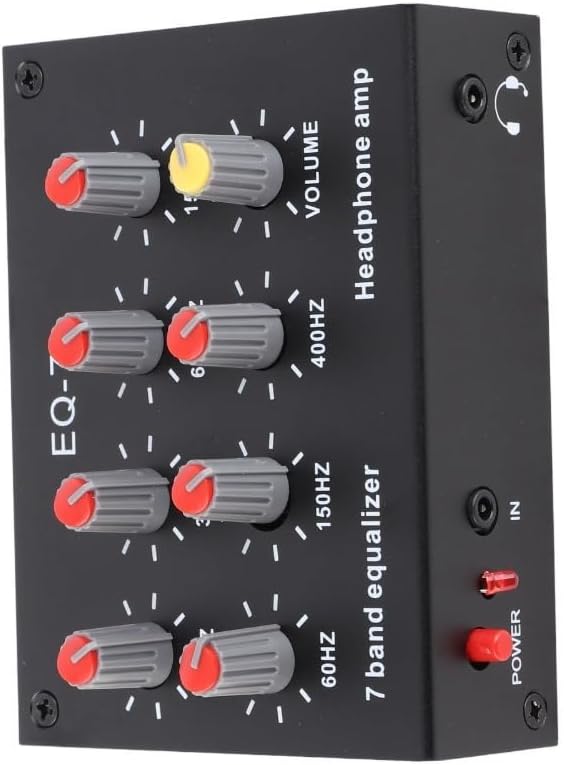

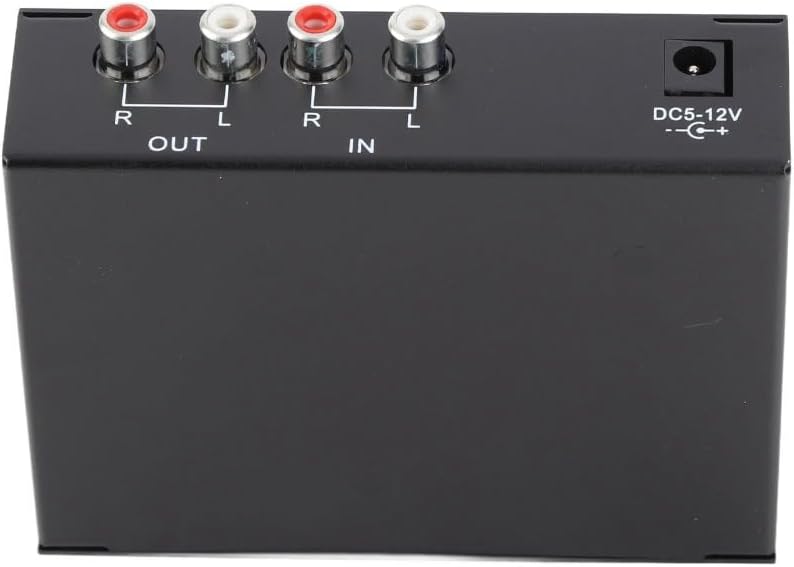

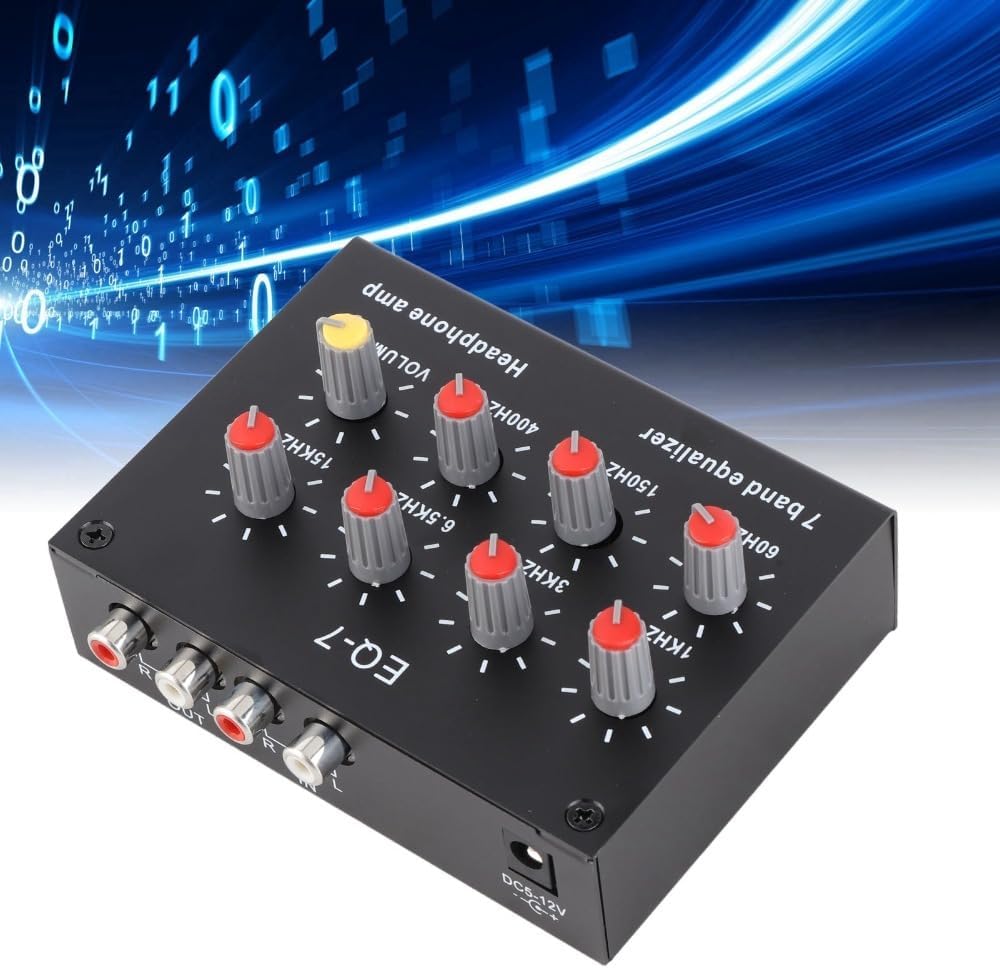

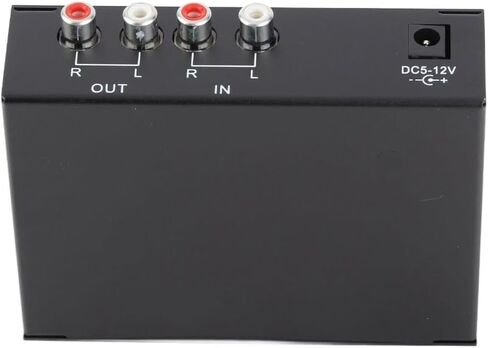

Aluminum Alloy EQ-7 Audio Signal Headset Amplifier, 3.5mm 12dB High Bass 7 Band Sound Equalizer, Adjustment Dual Channel Sound Equalizer

SAR 146
Brand
Anu Limen
Category
Car Electronics
Weight
300 g
– 1 +

Special Features

  • Material: The 7 band car sound equalizer is made of aluminum alloy, high strength, oxidation resistance, stable performance, DC5V-12V power supply, dual channel sound.
  • Basic Parameters: 7 band sound equalizer preamplification gain, 4580 classic op amp provides 5 times amplification (14dB); input impedance 20K, output impedance 600 ohms.
  • Control Range: 7 band equalization circuit control range ± 12dB, equalization band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ, by TI or ST original TL074 composition.

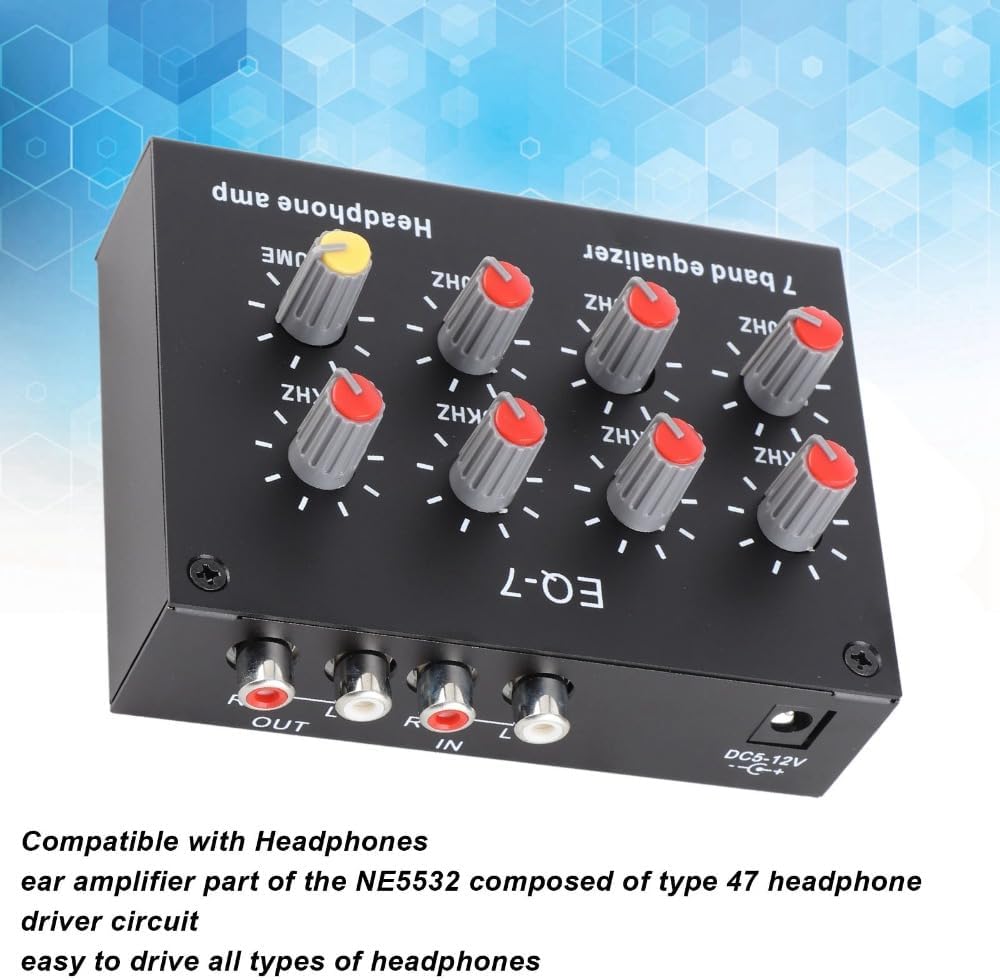

  • Compatible with Headphones: sound equalizer ear amplifier part of the NE5532 composed of type 47 headphone driver circuit, easy to drive all types of headphones, adjustable high and low.

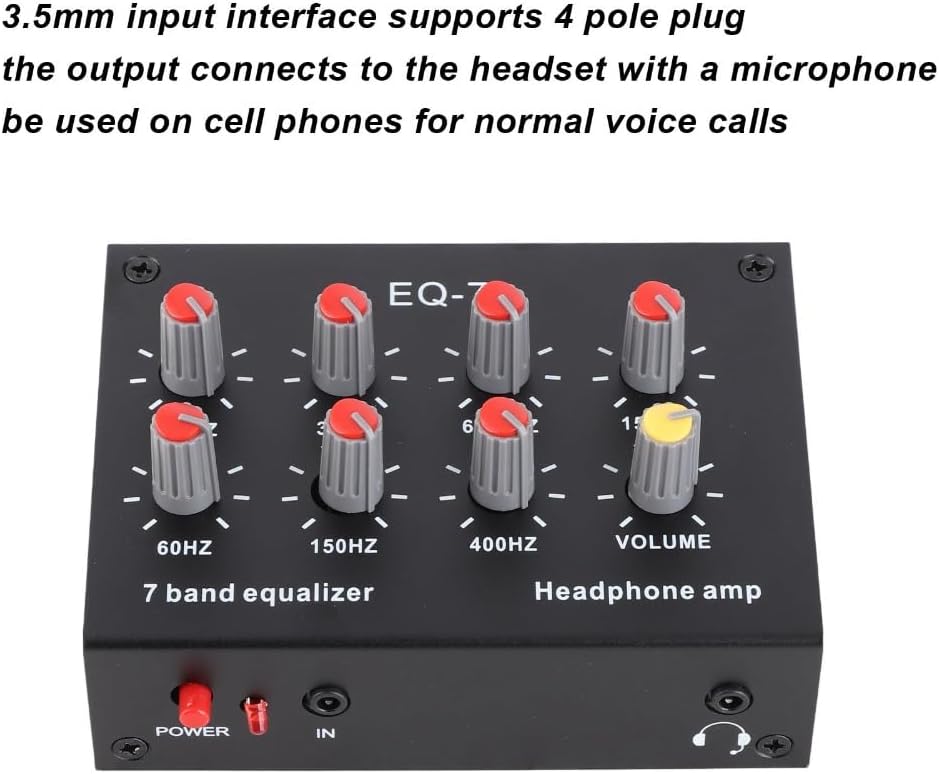

  • 3.5mm(0.14in) Interface: 3.5mm(0.14in) input interface supports 4 pole plug, the output connects to the headset with a microphone, which can be used on cell phones for normal voice calls, and another terminal with a group for lotus interface is available.

Description

Specification:
Item Type: 7 Band Sound Equalizer
Material: Aluminum Alloy
Color:Black

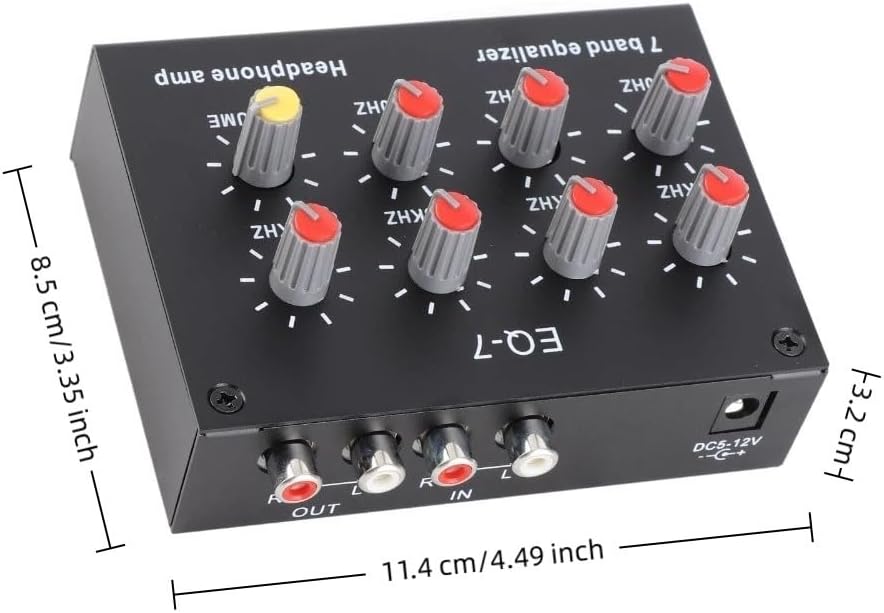

Size:11.4*8.5*3.2cm(4.49*3.35*1.26in)
Power Supply: DC5V-12V
Interface Specification: 5.5x2.1
Input Impedance: 20K
Output Impedance: 600 Ohms
Equalization Circuit Control Range: ±12dB
Equalization Frequency Band: 60HZ,150HZ,400HZ,1KHZ,3KHZ,6.5KHZ,15KHZ

Package List:

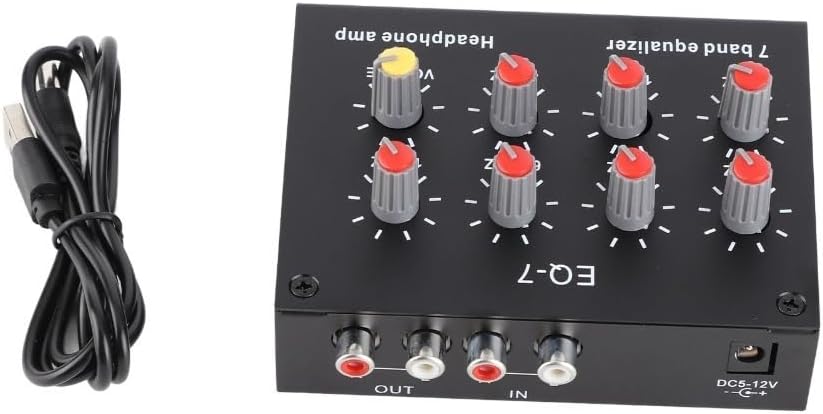

1 x 7 Band Sound Equalizer
1 x Supply Cable
