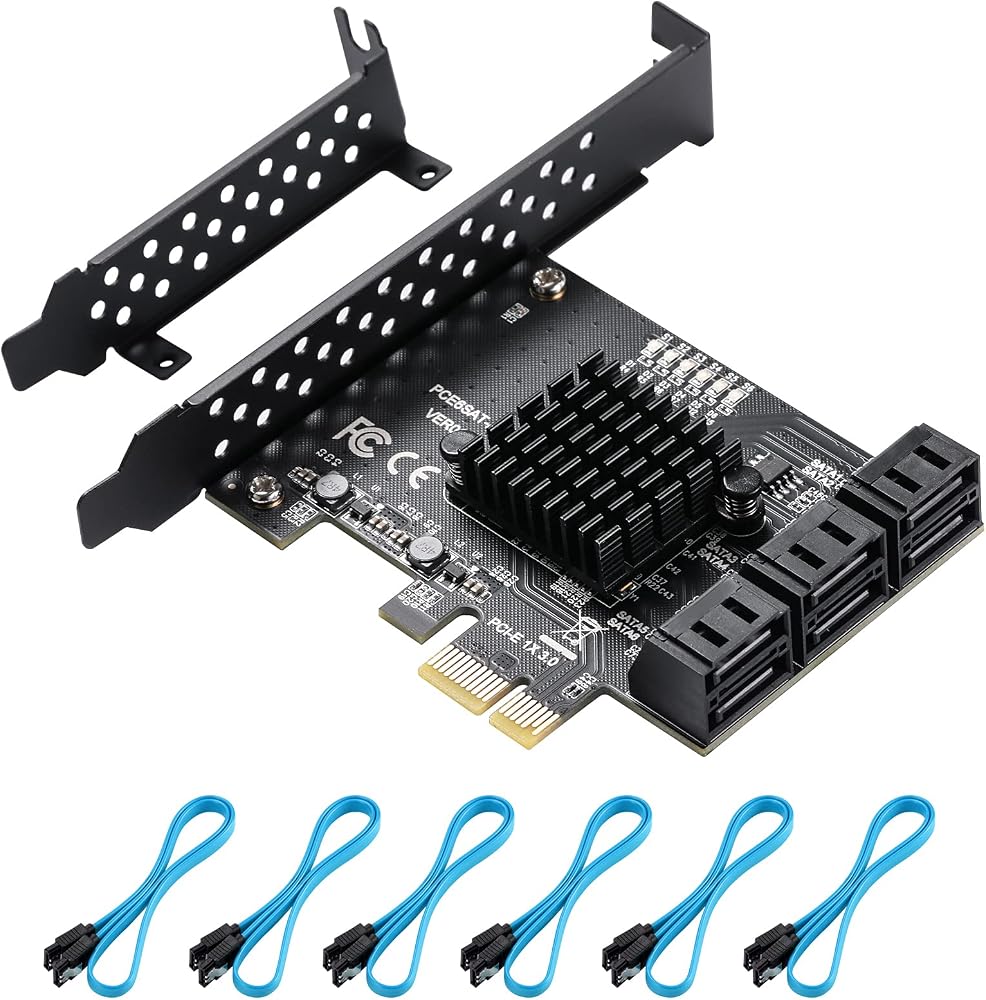

Product name: 6-port SATA3.0 expansion card

Product chip: ASMedia ASM1166

Product interface: PCIE 1X We recommend using with PCIE 3.0, which is faster

Support system: WIN10 / WIN8 / Linux / Ubuntu

Conforms to Serial ATA 3.0 specifications and backward compatible with SATA2.0 SATA1.0

Complies with PCI-Express v2.0 specifications and backward compatible with PCI Express v1.0

Supports communication speeds of 6.0 Gbit/s, 3.0 Gbit/s and 1.5 Gbit/s

Supports Gen 1i, Gen 1x, Gen 2i, Gen 2m, Gen 2x and Gen 3i

Supports AHCI1.0 mode and IDE mode

Supports 4 storage modes: RAID1, AHCI, SPAN, RAID0

Native command queue NCQ support

Supports FIS based on multiplier switch port or command switch

Supports hot hot swap; Compatible with SATA 6G, 3G and 1.5G hard drives

System requirements: One PCI Express 1x slot is available that supports 1x / 4x / 8x / 16x

Speed description information:

1. The best effect can be achieved with SATA 3.0.2 data cable; BOIS motherboard setting: the SATA mode should be changed to AHCI

2. Although some motherboards are PCIE version 2.0, by default BOIS does not enable gen2 high speed mode, which must be enabled manually; The maximum speed of PCIE 2.0 is 380 to 450 m/s; When connected to PCIE1.0, the speed is only 200 to 300 m/s; Different computer configurations and SATA SSDs have different speeds

3. SATA ports slow down when used simultaneously; This is not for users looking for speed; They are only used for expansion hard drive interfaces

Packing list:

1 x PCIE X1 to 6 SATA 3.0 card 6 x SATA cables

1 x Low profile bracket
