Woodworking Ball Screw Linear Guide Motion Rail Slide CNC Manual Linear Shaft Actuator Module Table Stroke Travel Engraving Tool(Kit,900mm Stroke)

SAR 5,900
Brand
KINBZQ
Weight
50 g
– 1 +

Special Features

  • Linear Motion Guide Actuators
  • High-Temperature Material:Constructed with aluminum-magnesium alloy, to high temperatures.

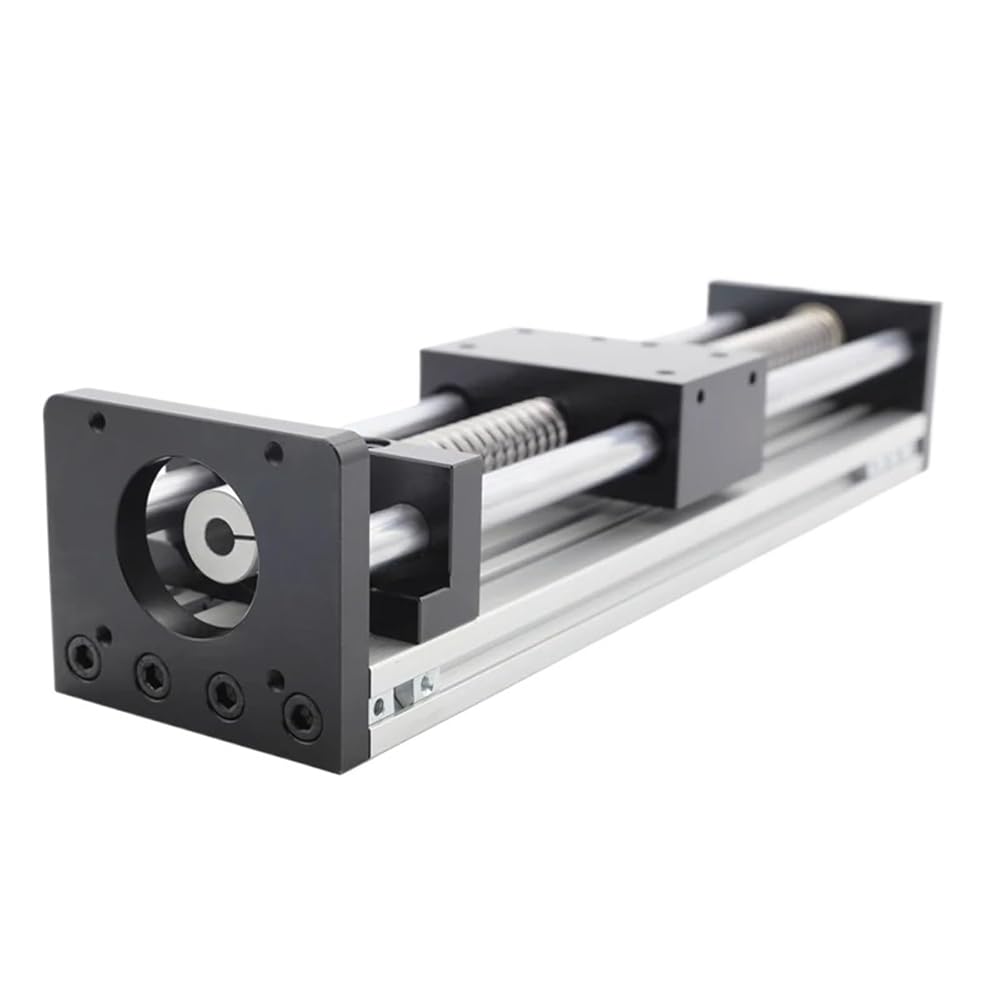

  • Diy Linear Actuator|Open Axis|Precision Ball Screw:Features a smooth, low-noise precision ball screw for accurate positioning.
  • Complete Kit:Comes with a 57 stepper motor, DM542 driver, intelligent controller, and limit switches.
  • High Load Capacity:Supports up to 20KG horizontal and 10KG vertical loads, ideal for heavy-duty applications.

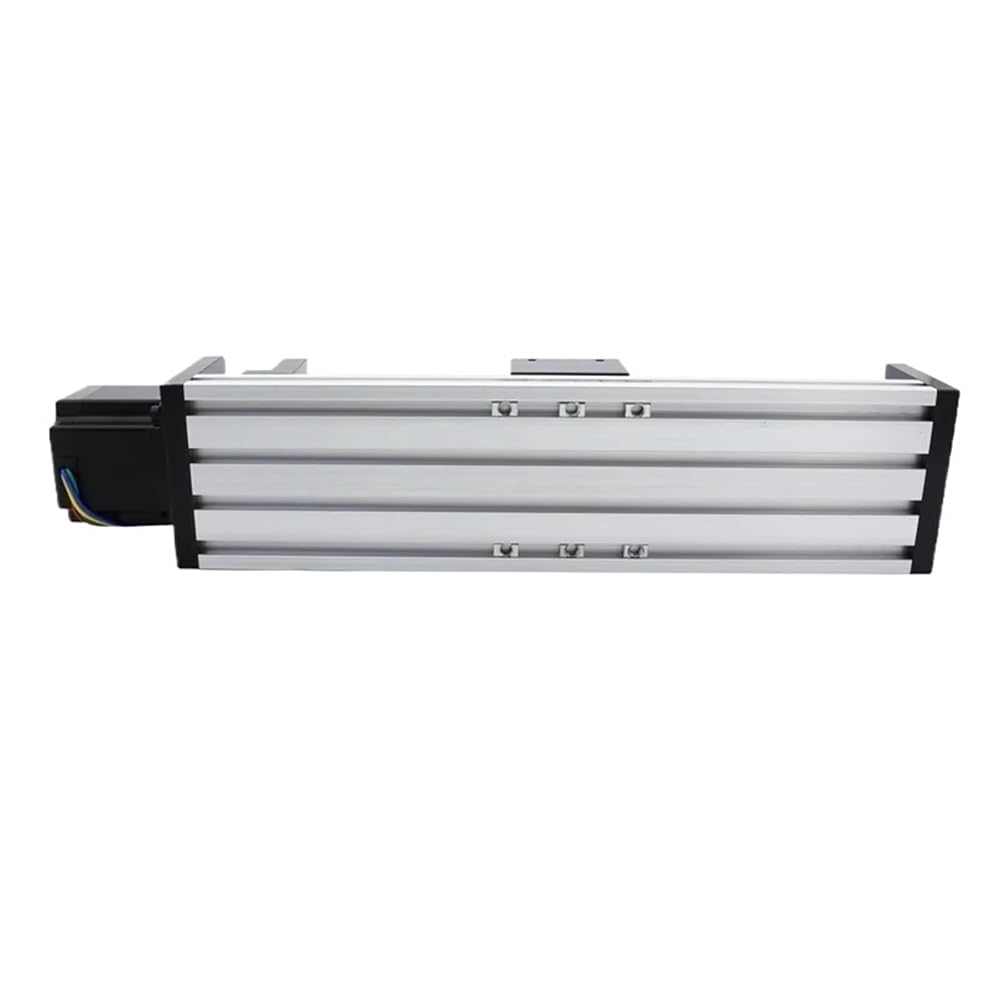

  • Easy Installation:Removable nuts on the sides and back for effortless installation of limit switches.

Description

Linear Motion Guide Actuators

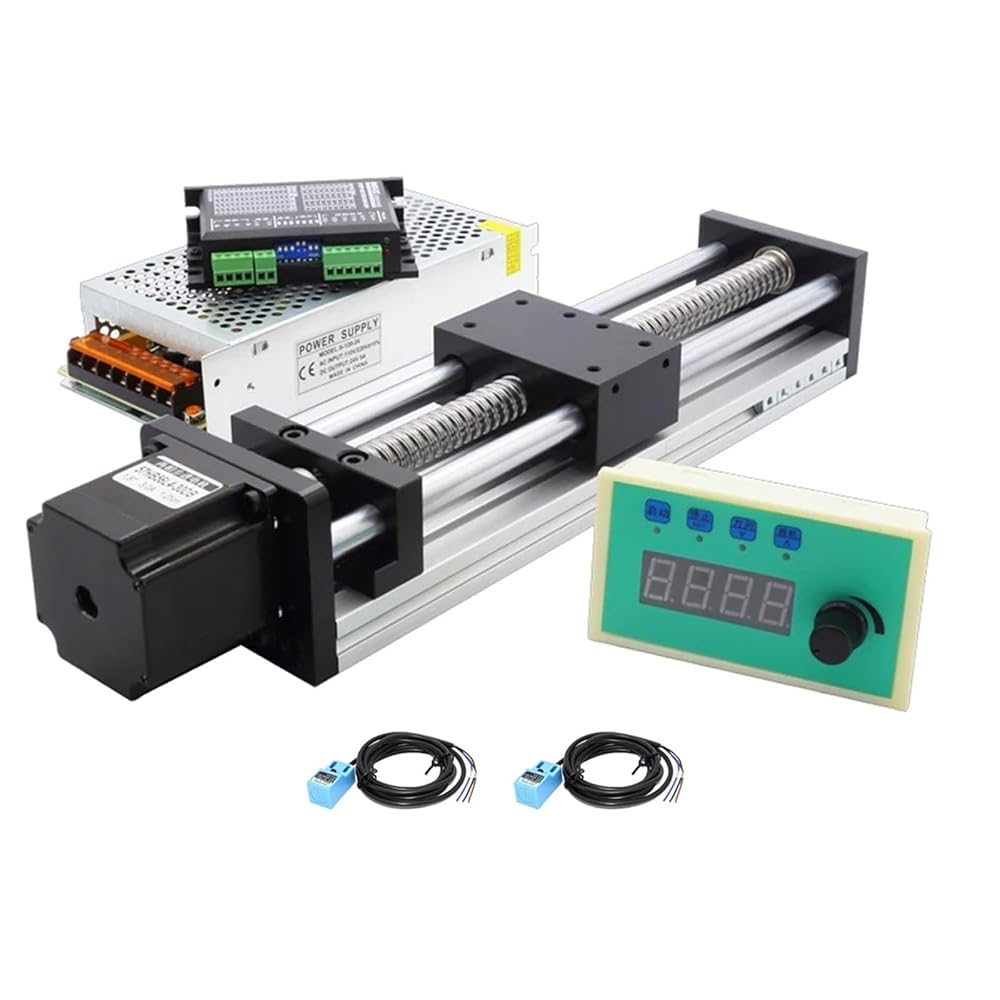

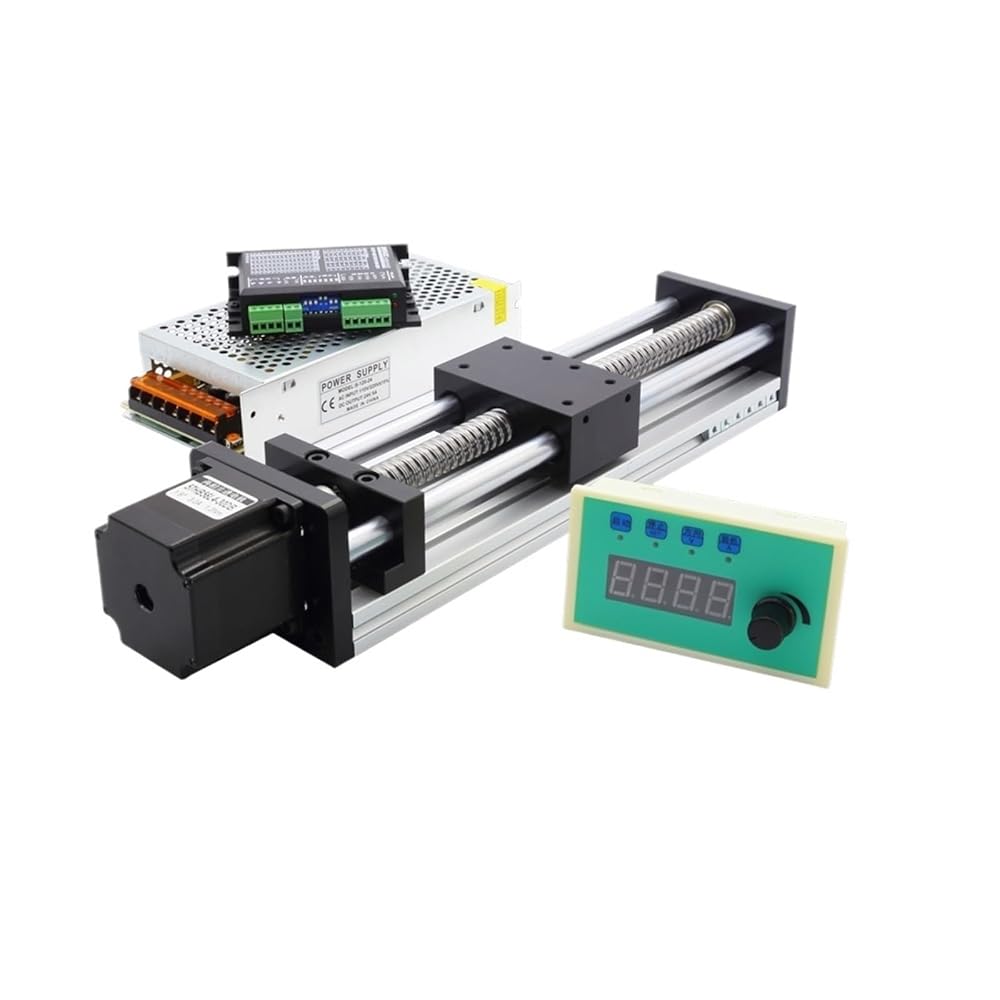

Package include:
Kit:
Actuator * 1

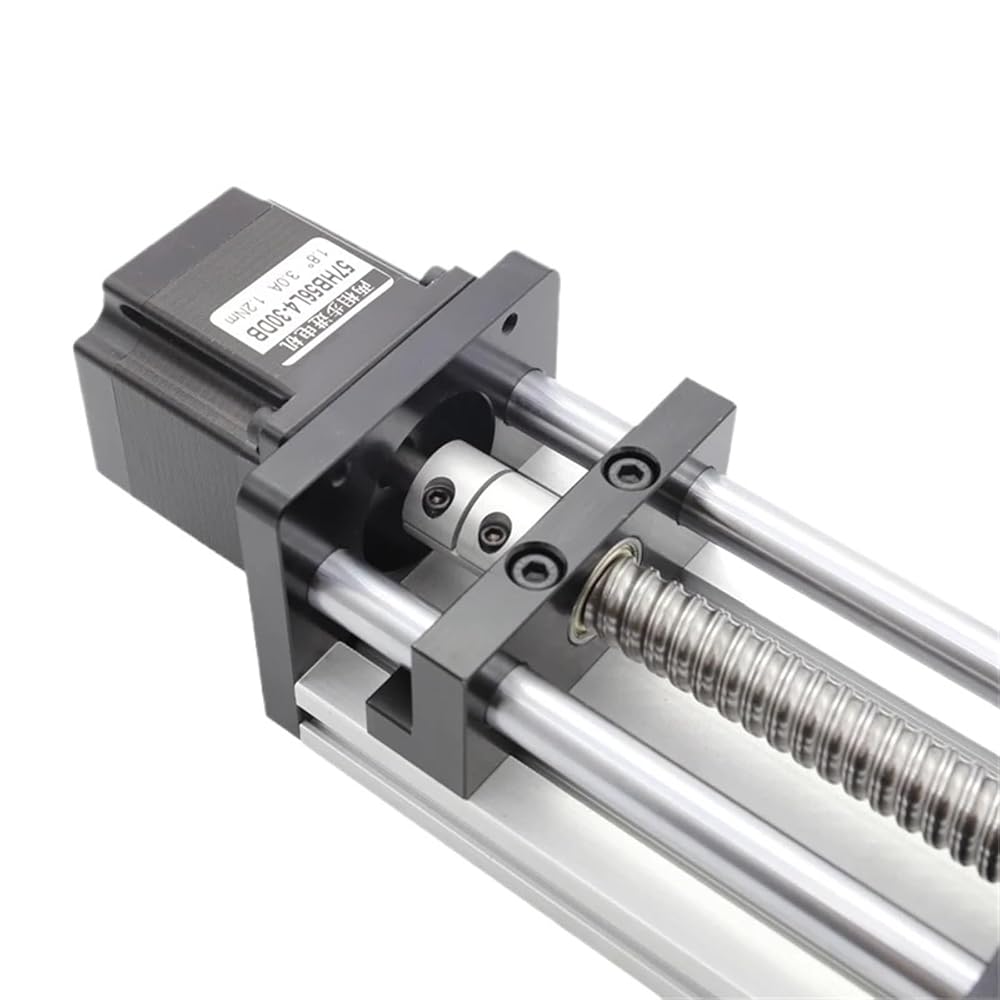

57 Stepper Motor(Nema23 1.2N) * 1
DM542 Driver * 1
Power Supply * 1
Controller * 1
Limit Switch * 2
With motor only :
Actuator * 1
57 Stepper Motor(Nema23 1.2N) * 1
Specification
Screw Type: 1605/1610/1204(default 1605 specification)
Horizontal load: 20KG
Vertical load: 10KG
Positioning accuracy: 0.03mm/100mm
Module weight: 1610G+460G/100mm
Number of phases: two-phase hybrid
Step angle: 1.8°
Phase current: 3A
Static : 1.2Nm
Wiring method: red and green to A+A-,Yellow and blue connected to B+B-
Input voltage: 220VAC
Output voltage: 24VDC
Output power: 120W
