Attention:
1.Include a shunt. It is necessary to take a shunt of 75mV to work even if 0.1 A. Or it will be burnt.
2.This meter is common ground point namely the "IN -" of the test terminal is connected with the "negative pole" of the power supply side so it is recommended to use a separate power supply (independent power supply).
Technical Parameters:
Power supply: DC5V 24V DC/AC8-12V selectable
Test current:AC50A
Dimension:79*43*25 mm
Mounting hole:76*39.5mm
Display mode: LCD with blue backlight
Measurement accuracy: 0.5% (± 2 digits)
Measurement rate: 2 times/S
Specification:
Package Include:

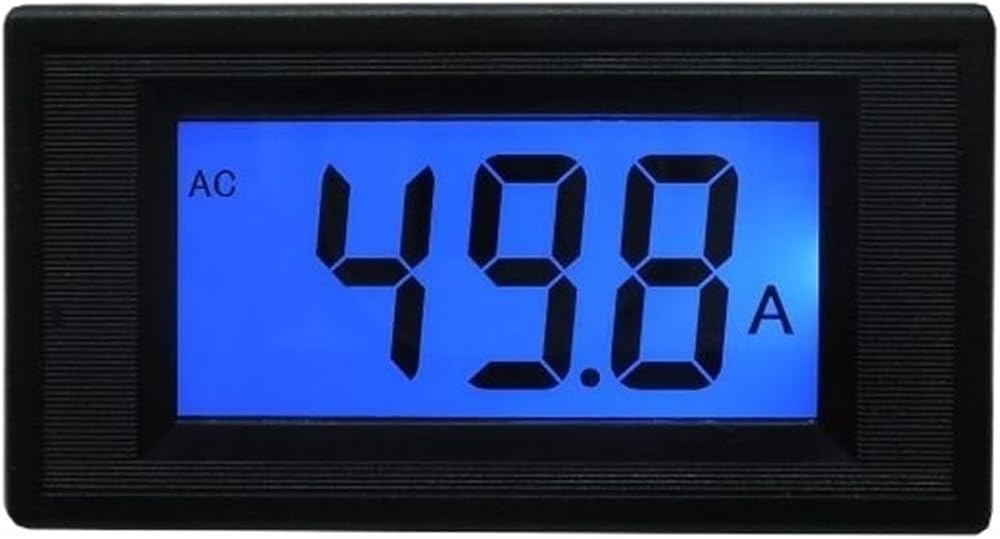

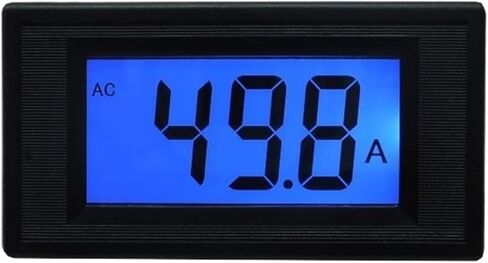

1 piece* LED Digital AC CurrentMeter + Shunt 50A/75mV
Suitable for "more than 10A or 10A" must need a shunt:
Working conditions:
Operating temperature: -10 ~ +50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
