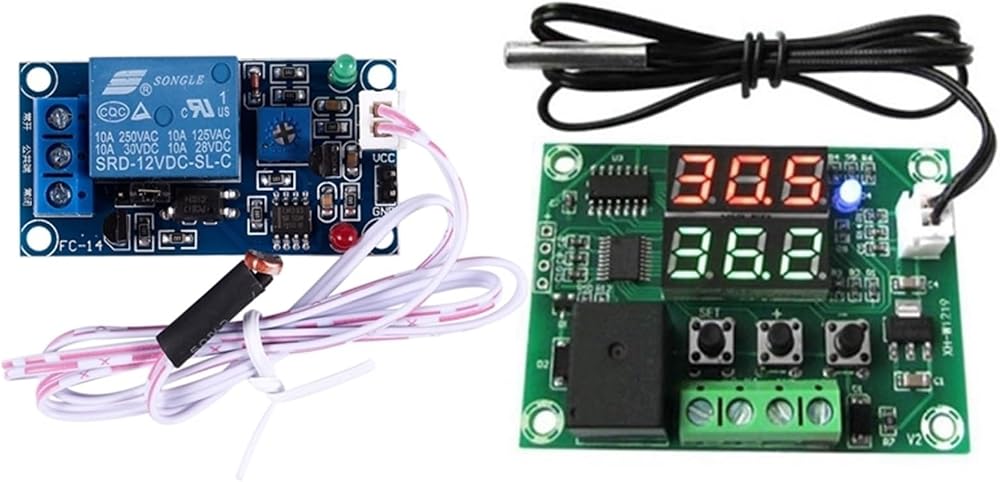

DC 12V Photoelectric Switch Sensor Relay Module & DC12V XHW1219 NTC Sensor Switch Regulator Sensor Module
set2 1 x Sensor Module 1 x Photoelectric Switch Sensor Relay Module

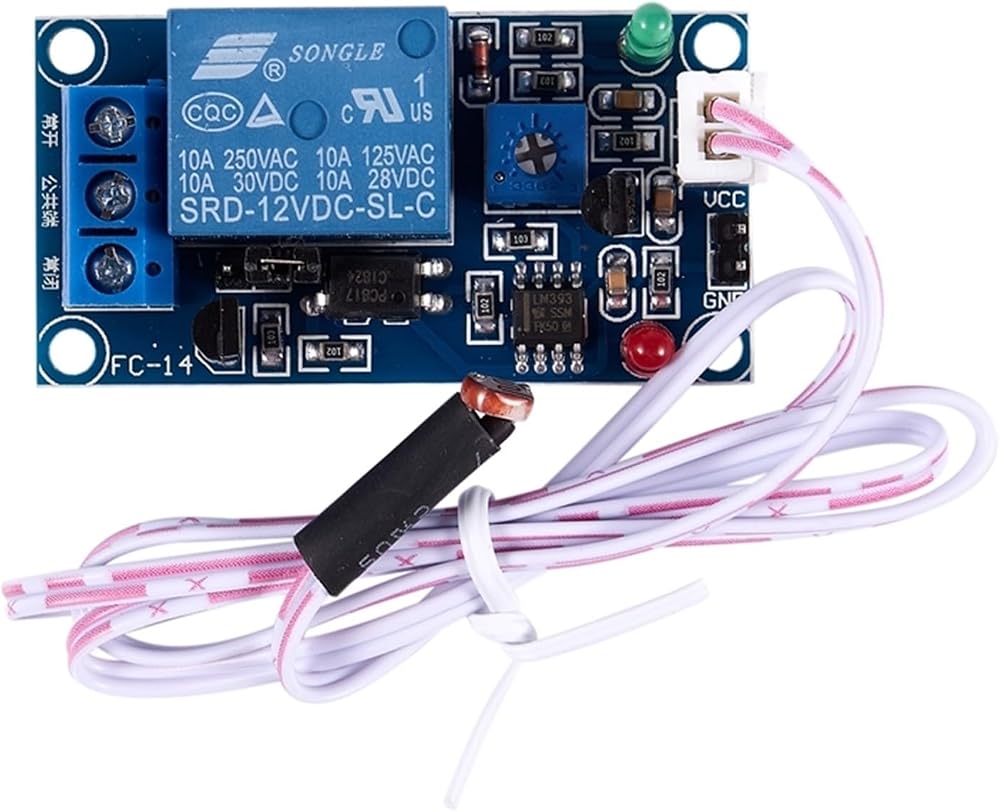

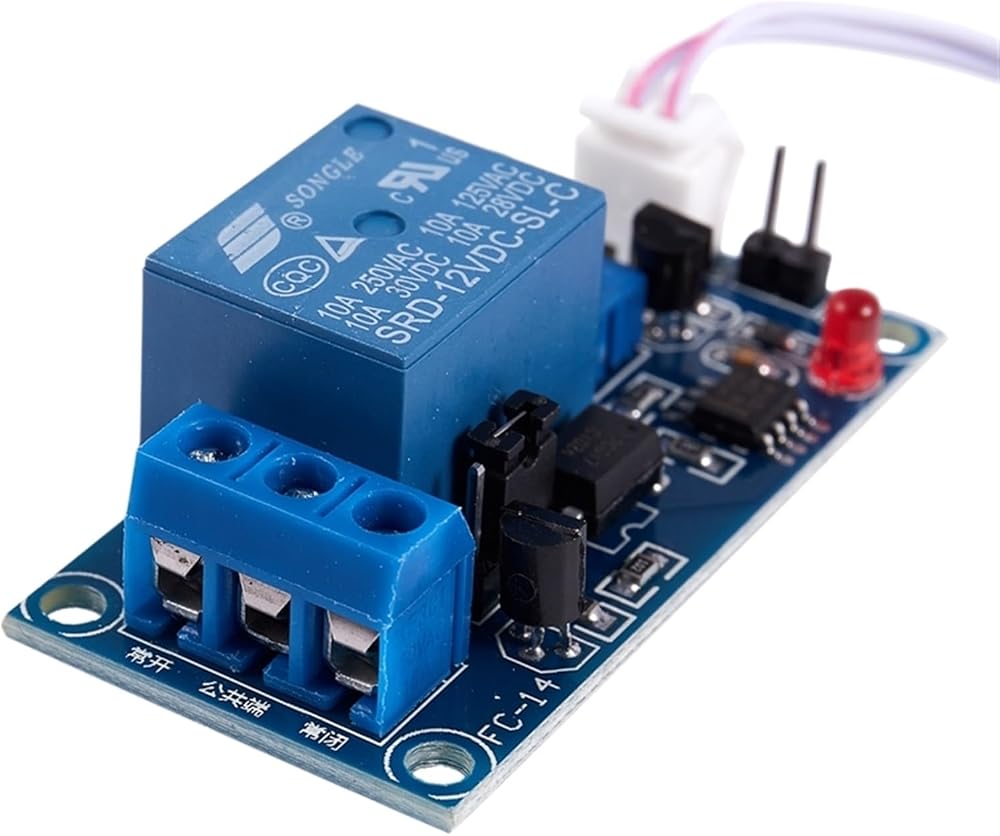

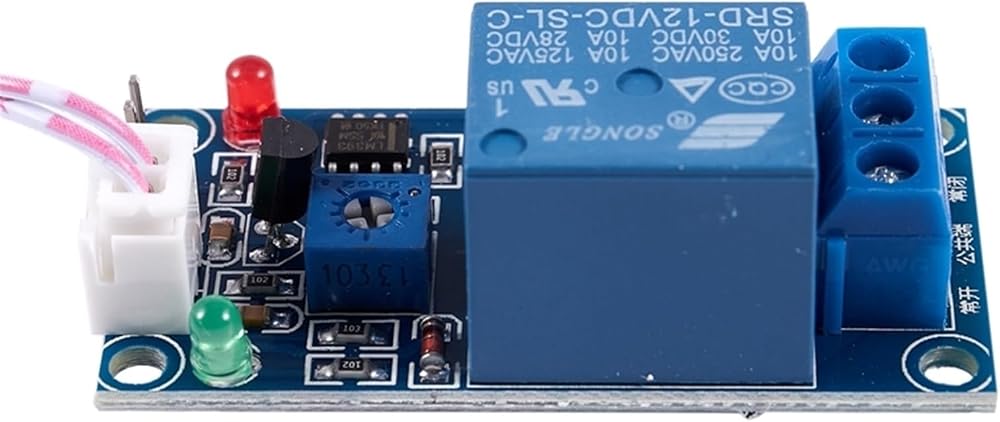

Indicator light one green for switch red one for power Built in a potentiometer for sensitivity control The module with Photoelectric Switch Sensor Relay Module can be use in street lamp automation equipment detecting the brightness etc. Module: XH-W1219. Function: Temperature Controller. Power Supply: DC12V. Product Name : Photoelectric Switch Sensor Relay Module
Mode : Light Actuation Mode. Working Voltage : DC 12V

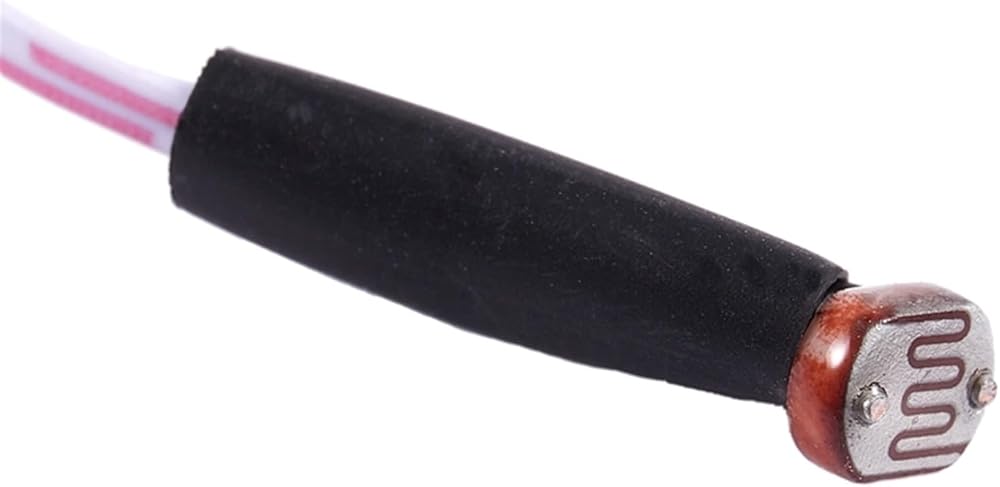

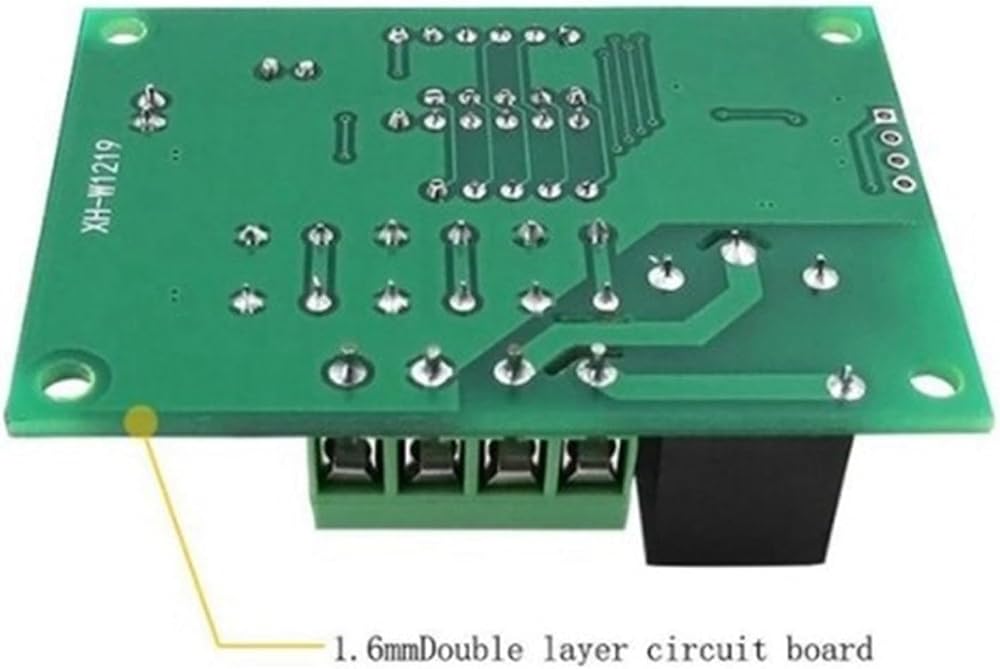

Relay Loading Voltage : AC 250V 10A DC30 V 10A. PCB Board Size : 50 x 25mm/ 2 inch x 0.98 inch (L x W) Sensor Size : 60 x 20.5mm/ 2.4 inch x 0.8 inch (L x W). Cable Size : 50cm/ 20 inch. Mounting Hole Size : 3mm/ 0.12 inch
Colour:As Shown. Material: plastic/Electronic Components Plastic. Sensor Module Size: 60x44mm
Please pay attention for your first use. You need wait 6s after your setting data the module will save the date you have set after 6s.
Short press button SET: If you start the time setting mode Nixie tube will blink. You could adjust the time T1 and T2 by button+ and button-. Please wait 5s after your setting date the module will save the date you have set after 5s.
Long press button SET: if you start the parameter setting mode. There are two group parameter for your choice : P0 and P1. You could switch P0 or P1 by short press SET. Under the parameter P0 and P1 you could set the timing mode by the button+ and button-.
P0--0: timing mode is 0--999 seconds; P0--1: timing mode is 0--999 minutes; P0--2: timing when the pattern is 0--999; P1--0: T1 time delay relay (T1 timer); P1--1: T1 delay time relay releases (T1 timer)
P1--2: time delay relay after T1 (T1 timer) then the delay time T2 successor electrical release (T2 timing) ends.
P1--3: T1 delay time relay releases (T1 timer) then the delay time T2
