2Pcs XH-W1219 Dual LED Digital Display Thermostat Temperature Controller Regulator Switch Control Relay Sensor Module
1. Please pay attention when using it for the first time. After setting the data you need to wait 6s and the module will save the setting date after 6s.
2. Short press the SET button: If the time setting mode is activated the digital tube will flash. You can adjust the time T1 and T2 with button + and button -. Please wait 5s after setting the date the module will save the date set after 5s
3. Long press the SET button: if the parameter setting mode is activated. There are two groups of parameters for you to choose: P0 and P1. You can switch P0 or P1 by short pressing SET. Under the parameters P0 and P1 you can use the button + and button-to set the timing mode.

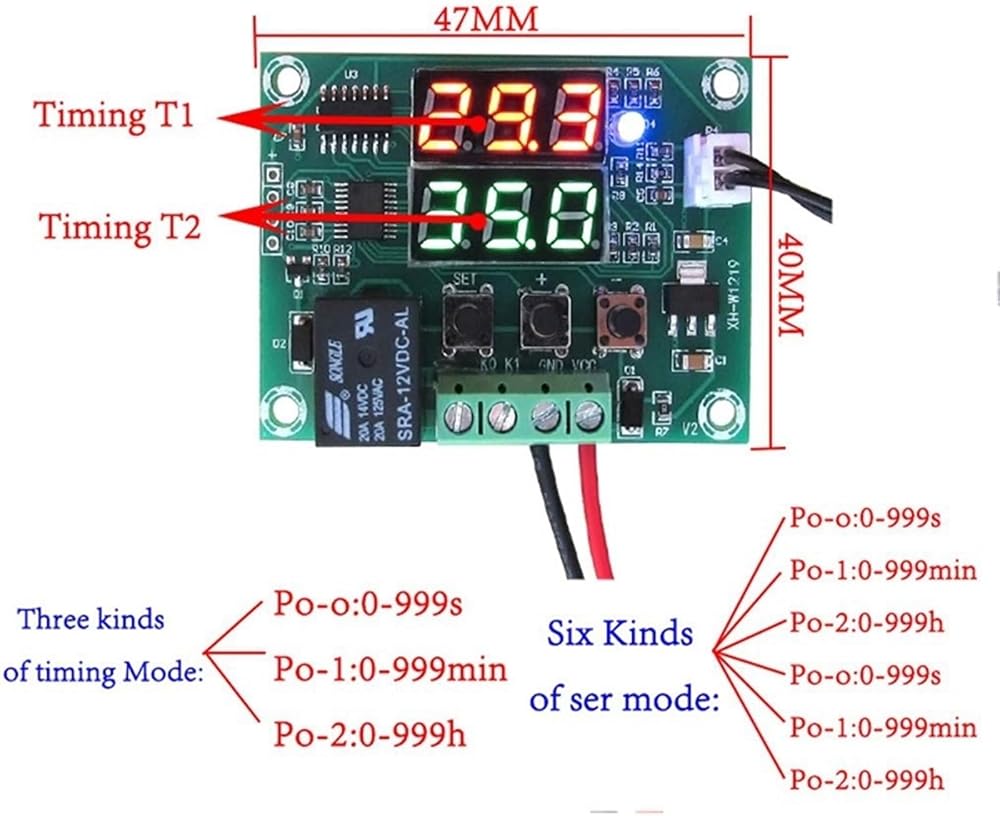

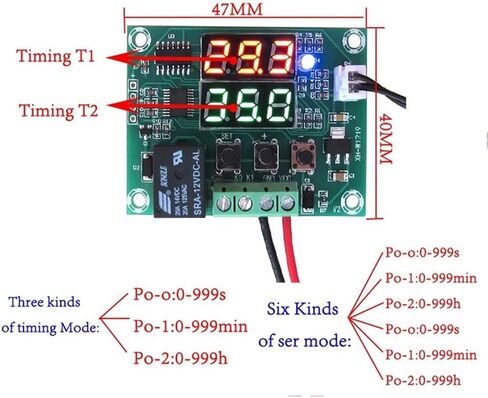

P0--0: The timing mode is 0--999seconds
P0--1: Timekeeping mode is 0--999minutes
P0--2: Timing when the mode is 0--999
P1--0: T1 delay relay (T1 timer)
P1--1: T1 delay relay release (T1 timer)
P1--2: Delay relay (T1 timer) after T1 and then delay T2 relay release (T2 timer) to end.
P1--3: T1 delay time relay is released (T1 timer) and then the delay time T2 relay is energized (T2 timing) ends.
P1--4: Delay relay after T1 (T1 timer) then delay T2 relay release (T2 timer) and repeat the cycle.
P1--5: T1 delay time relay is released (T1 timer) then delay time T2 relay is energized (T2 timer) and the cycle is repeated.
Power supply: DC12V
Relay current: less than 50mA
Colour: green
Material: electronic components
Size: about 60 x 43mm
Package Contents:

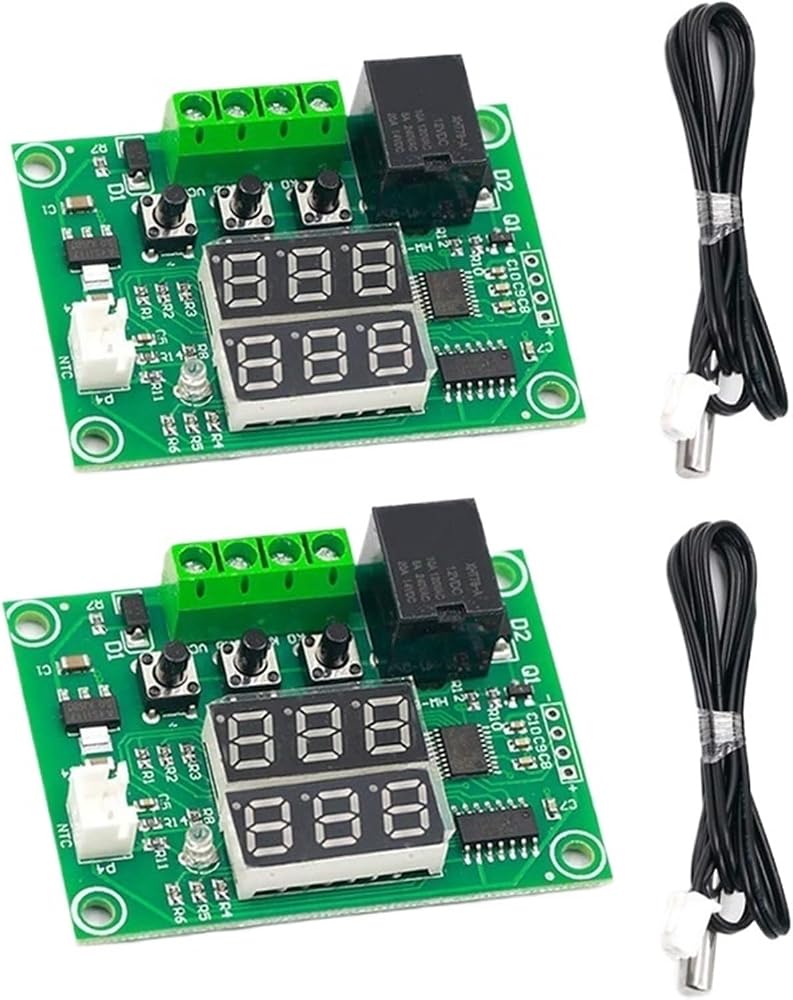

2 x digital thermostat
Only the above package content other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
