Fiber Optic Connectors
Nnector for APC/UPC polished SC standard FTTH networks for Drop Flat Fiber Cable.
Specifications:

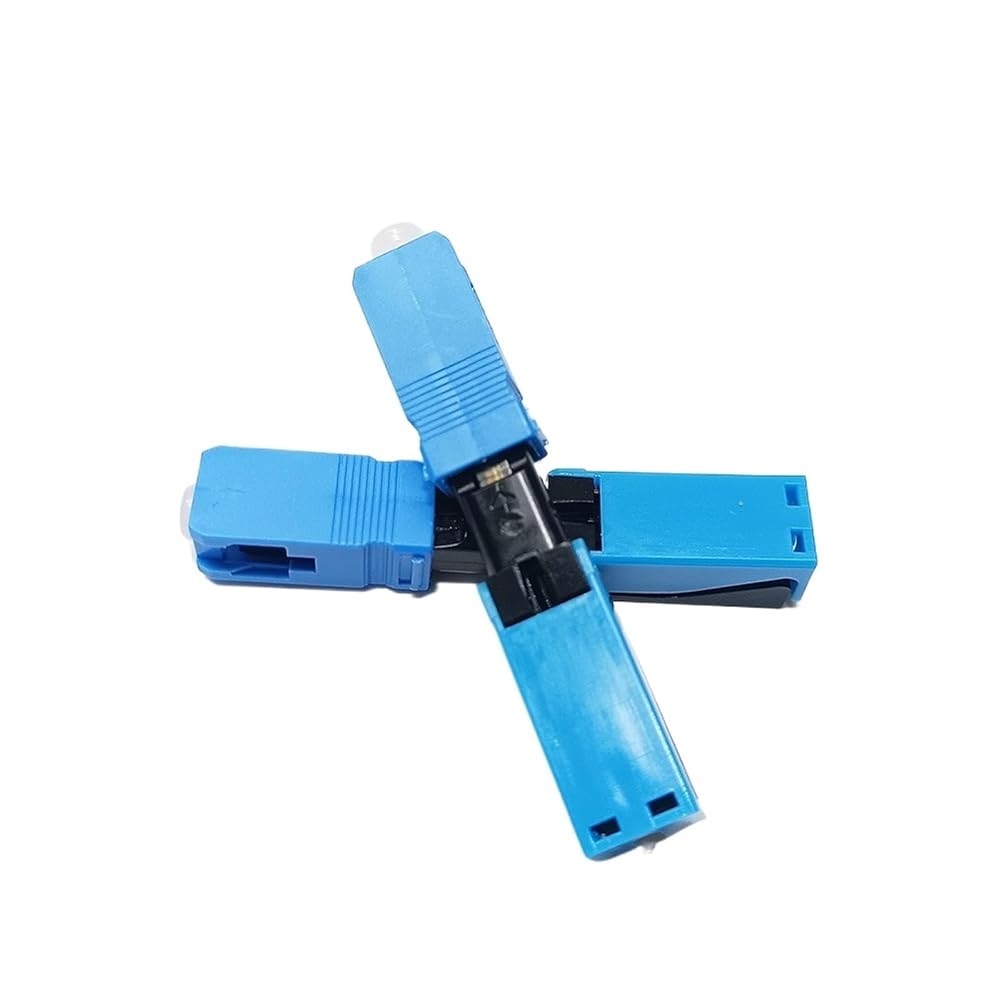

The Reusable SC Connector Field Optical Fast Connector is designed for field use in Drop Flat (Low Friction) cables up to 3 mm and / or 2 to 3 mm Optical Cords in FTTH networks.
Easily assembled, it does not require any special tools other than standard fiber optic preparation tools (cable stripper, fiber stripper, cleavage guide, cleaver and cleaning components).
It is designed for simple and fast mechanical termination in the field, making it possible to reuse without losing its characteristics.
Features:
Reusable connector without loss of features
APC/UPC pre-polishing
Simple and quick assembly
Lower installation time 3 min.
Low Insertion Loss = 0.3dB
Loss: = - 40dB
Reflection Rate: = 45 ~ 53dB
Operating Temperature: -40 ~ + 75 ° C
==========
Wireless function : No
High-concerned chemical : None
Fiber Type : Single Mode
Connector Type : SC/APC
Origin : Mainland
Certification : ,
Fiber Diameter : 125um
Coating Diameter : 250um
Insertion Loss : 0.2dB max. 0.5dB
Loss : Over 50dB
Tensile Strength : Over 30N
Assembly Repeatability : 5 times
Installation Durability : Over 500 times
Atmospheric Pressure : 60kpa~160kpa
Operating Temperature : -40 to 85 degree Celsius
Storage Temperature : -40 to 85 degree Celsius
