Linear Bearing LMF25UU LMF30UU LMF35UU LMF40UU LMF50UU LMF60UU ABEC-5 1pc Round Flange Type Bearings LMF UU Ball(LMF35UU) in Saudi Arabia

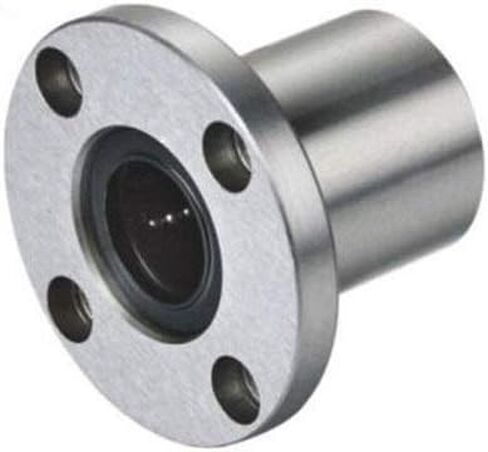

Linear Bearing LMF25UU LMF30UU LMF35UU LMF40UU LMF50UU LMF60UU ABEC-5 1pc Round Flange Type Bearings LMF UU Ball(LMF35UU)

SAR 506
SizeLMF35UU
– 1 +

Special Features

  • Air Bearings
  • Structure and Features
  • Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
  • The balls in the loaded area of the nut are in point contact with the LM shaft.
  • This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.

Description

Air Bearings
Details
Model:LMF25UU
Ball circuit: 6
Inscribed circle Diameter: 25 mm
Out Diameter: 40 mm
Length: 59 mm
Dynamic Cr: 100 kgf
Static Cor: 160 kgf
Weight: 340 g
Grade: ABEC-5
Quantity: 1 PC
Model:LMF30UU
Ball circuit: 6
Inscribed circle Diameter: 30 mm
Out Diameter: 45 mm
Length: 64 mm
Dynamic Cr: 160 kgf
Static Cor: 280 kgf
Weight: 470 g
Grade: ABEC-5
Quantity: 1 PC
Model:LMF35UU
Ball circuit: 6
Inscribed circle Diameter: 35 mm
Out Diameter: 52 mm
Length: 70 mm
Dynamic Cr: 170 kgf
Static Cor: 320 kgf
