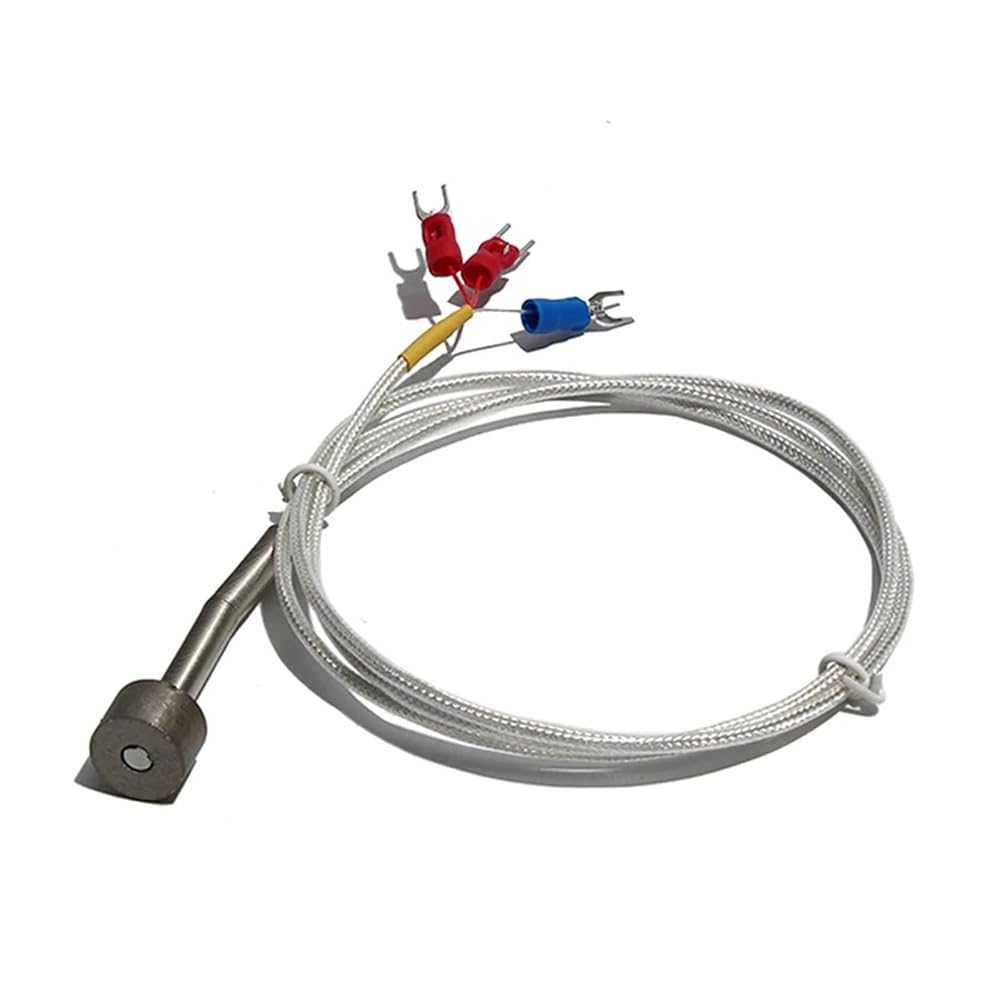

PT100 Magnet Attraction Type Temperature Sensor Magnetic Probe Adsorption RTD 360 to Ultra-high Temperature
Specifications:
Prooduct Name: Magnetic Attraction Temperature Sensor
Product Type: Ultra-high Temperature Type

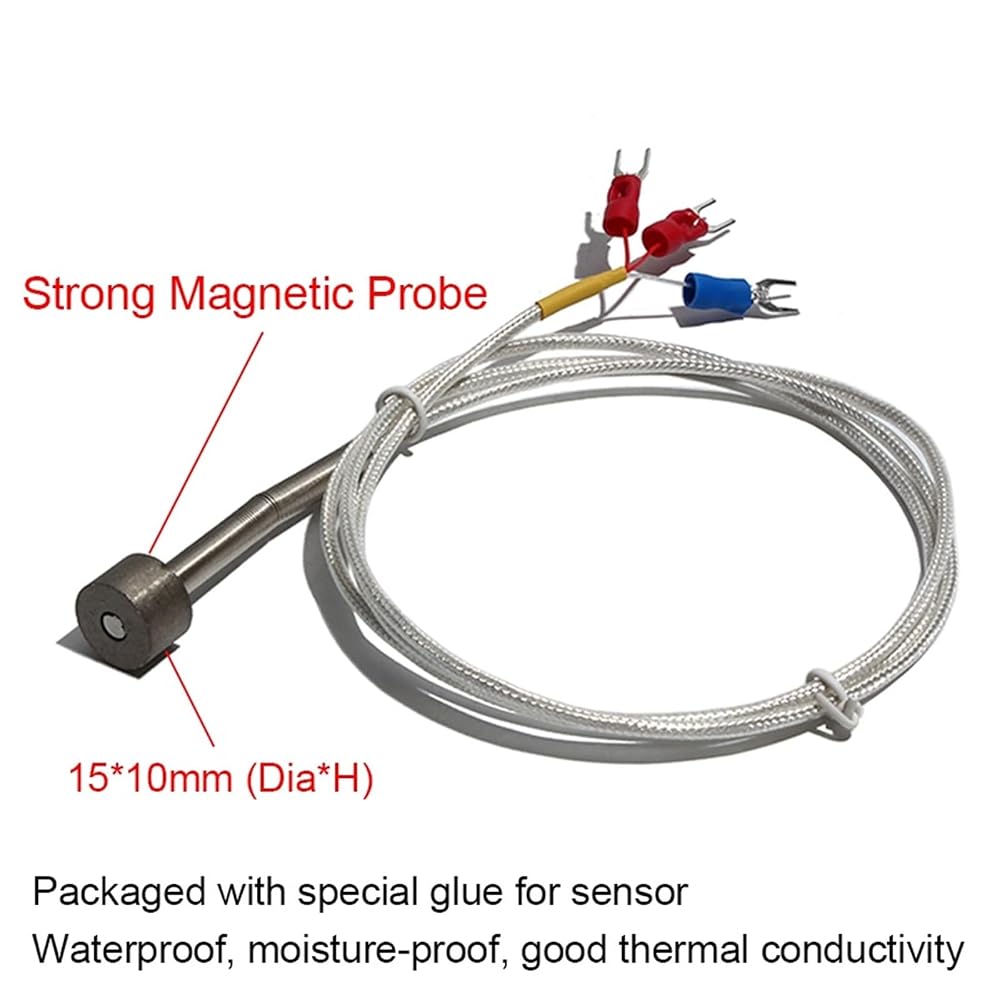

Probe Size: 15*10mm (Dia*H)
Cable Length: 0.5m/1m/2m
Probe Material: Non-nickel-plated Magnet
Cable Material: PTFE Waterproof Shielded Wire
Temperature Range: -60~350
Usages: Measure the surface temperature of the object, where the magnet can attract.
Application Range: Medical, electrical machinery, industrial, temperature calculation, etc.
Package Contents: 1 x sensor
Advantages: 1) The magnetic probe can be attached to various magnetic metals to measure the surface temperature, Punch-free installation to protect the integrity of the measured object.
2) The contact area between the magnet probe and the measured object is large and close. Easy to install, measure at any time, and can be taken off when not needed.
3) High accuracy of temperature measurement, fast response, small volume; strong magnetic probe, super suction, to ultra-high temperature, ect.
Applications: Measure the surface temperature of objects, such as the surface temperature of water pump motors; quickly detect the temperature of processed parts on the production line; portable measurement of the surface temperature of outdoor boilers, oil storage tanks, large motors, the surface temperature of various reducers, and the temperature measurement of various components in the central air conditioner; such as Compressors, heat exchangers, etc.
==========
High-concerned chemical : None
Type : Electric Water Heater Parts
Product Name : Magnetic Attraction Temperature Sensor
Product Type : Ultra-high Temperature Type
Probe Size : 15*10mm (Dia*H)
Cable Length : 0.5m/1m/2m
Materials : PTFE Waterproof Shielded Wire, Non-nickel-plated Magnet
Temperature Range : -60~350
