Interchangeability
Since the dimensional tolerances of the Linear Bush's components are standardized they
are in changeable. The LM shaft is machined through cylindrical grinding which can easily
be performed and it allows highly accurate fitting clearance to be achieved.
Highly Accurate Retainer Plate
Since the retainer which guides three to eight rows of balls is integrally molded it is capable
of ac-curately guiding the balls in the traveling direction and achieving stable running
accuracy.Small-diameter types use integrally molded retainers made of synthetic resin.It
reduces noise gen-erated during operation and allows for superb lubrication.
Application
The Linear Bushing is used in a broad array of applications such as slide units of precision
equipment including OA equipment and peripherals measuring instruments automatic
recorders and dital 3D measuring instruments industrial machines including multi-spindle
drilling machine punchingpress tool grinder automatic gas cutting apparatus printing
machine card selector and food packing machine.
Details

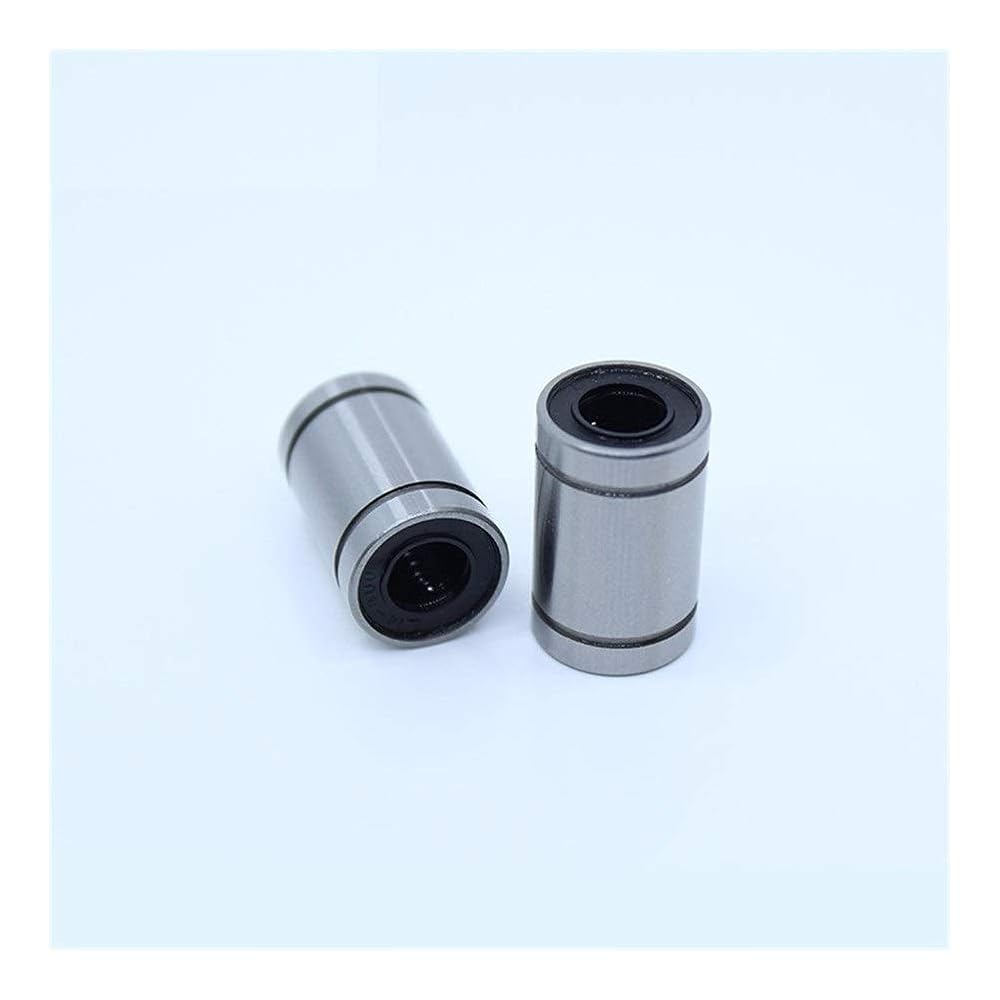

Model: LM25UU
Ball circuit: 6
Inscribed circle Diameter: 25 mm
Out Diameter: 40 mm
Length: 59 mm
Dynamic Cr: 100 kgf
Static Cor: 160 kgf
Weight: 206 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM30UU
Ball circuit: 6
Inscribed circle Diameter: 30 mm
Out Diameter: 45 mm
Length: 64 mm
Dynamic Cr: 160 kgf
Static Cor: 280 kgf
Weight: 240 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM35UU
Ball circuit: 6
Inscribed circle Diameter: 35 mm
Out Diameter: 52 mm
Length: 70 mm
Dynamic Cr: 170 kgf
Static Cor: 320 kgf
Weight: 370 g
Quantity: 1 Lot = 2 PCS
Grade: ABEC-1
Model: LM40UU
Ball circuit: 6
Inscribed circle Diameter: 40 mm
Out Diameter: 60 mm
Length: 80 mm
Dyn
