Mechanical
Only Clutch

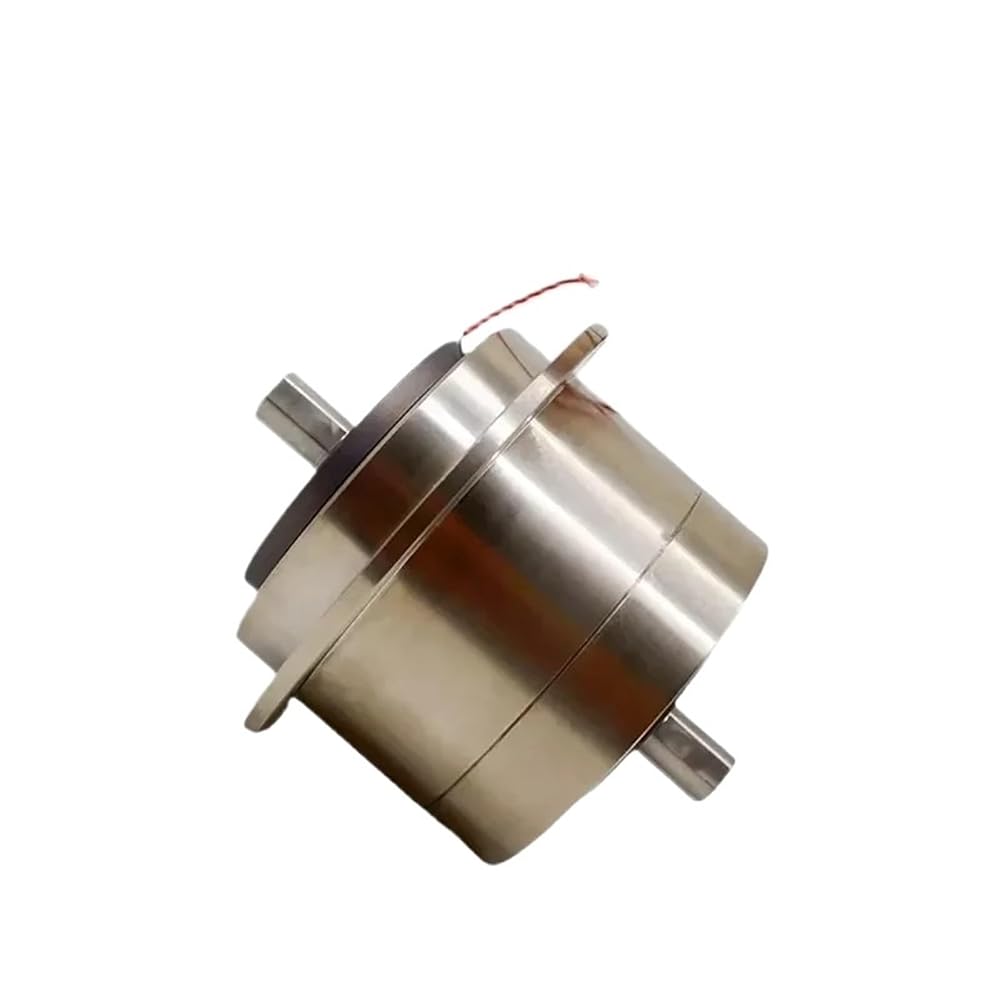

1* Double Shaft Magnetic Powder Clutch
Clutch with SJ-180A or TB-200S
1* Double Shaft Magnetic Powder Clutch
1* Manual Tension Controller
Clutch with KTC-812
1* Double Shaft Magnetic Powder Clutch
1* Manual/Automatic Tension Controller
1* Hall Sensor
SJ-180A---Small Tension Controller Parameters:
Model: SJ-180A
Input Voltage: DC24V
Output Voltage:DC24V
Out Current: 0~4A
Overall size: 96X69X32MM
Type: Manual controller / / Potentiometer
TB-200S---Tension Controller Parameters:
Input voltage: AC 180V-265V 50/60Hz
Output Voltage: DC0~24V
Output current: 0-3A
External Signal control: 0~10VDC or 0~5VDC (Switchable)
Precision: 0.01A
Type: Manual controller / / Potentiometer
Overall size: 160x100x70mm (width x height x depth)
Mounting size: 163x103x70mm (width x height x depth)
Installation methods: W all-mounted, floor-mounted, embedded
Control method: Manual adjustment of switching power supply
Output display: Digital display
Applicable machine: M agnetic powder brake, magnetic powder clutch
Auxiliary function:F ixed control current, short-current protection
Working environment: Corrosive gas, dust, rainwater are not allowed
Working temperature: -10~50
Working humidity: Below 80%
KTC-812---Auto Tension Controller Parameters:
Power Supply: 185V-265VAC 50/60Hz
Out Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A
Type: Manual controller / / Potentiometer
Working Temperature: -10~40 degree centigrade
Parameter characteristics:
Manual/automatic operation
Encoder or Hall switch can be connected
It can store the parameters of 9 different materials
Constant tension/taper tension control
Output 0 - 2 4 V/4 A, automatic overcurrent protection
All parameters and states of the automatic memory system
Adjustable magnetic powder brake/clutch compensation
==========
High-concerned chemical : None
Voltage : 24V
Model Number : ZKG-AN
Origin : Mainland
Certification :
