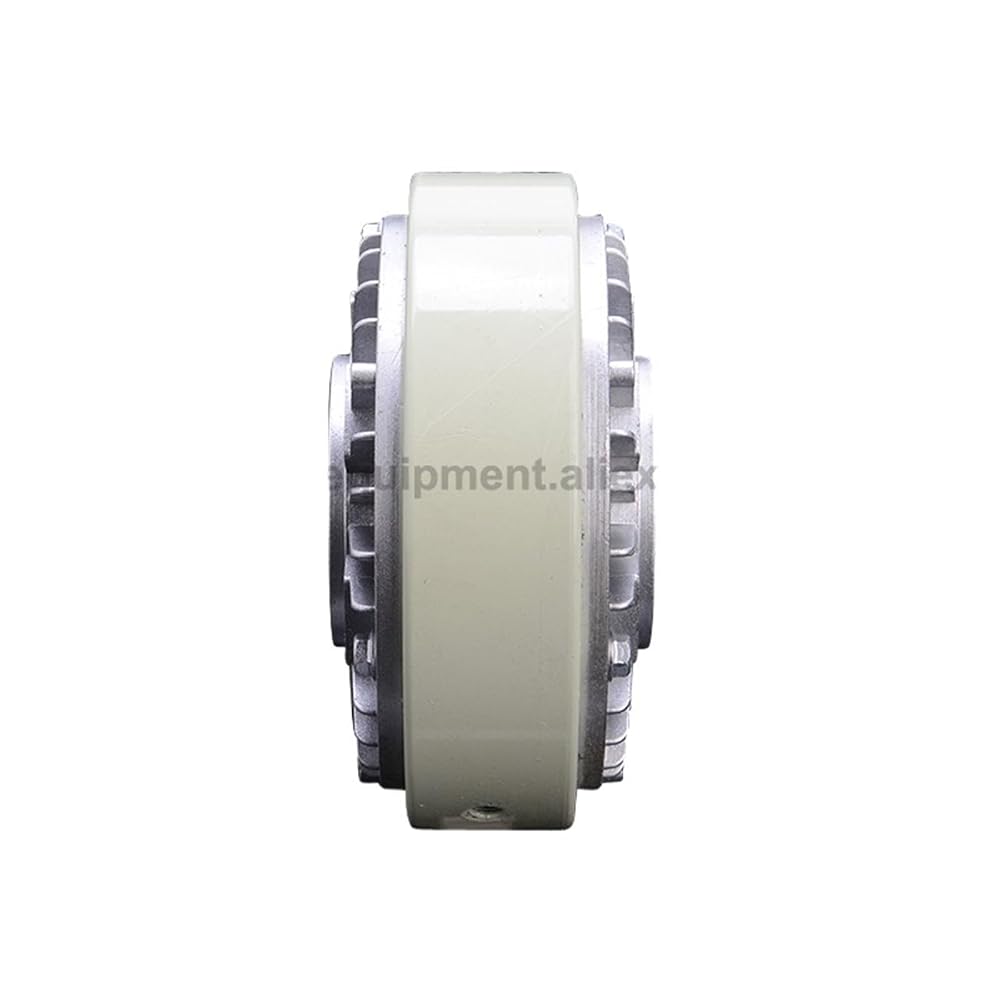

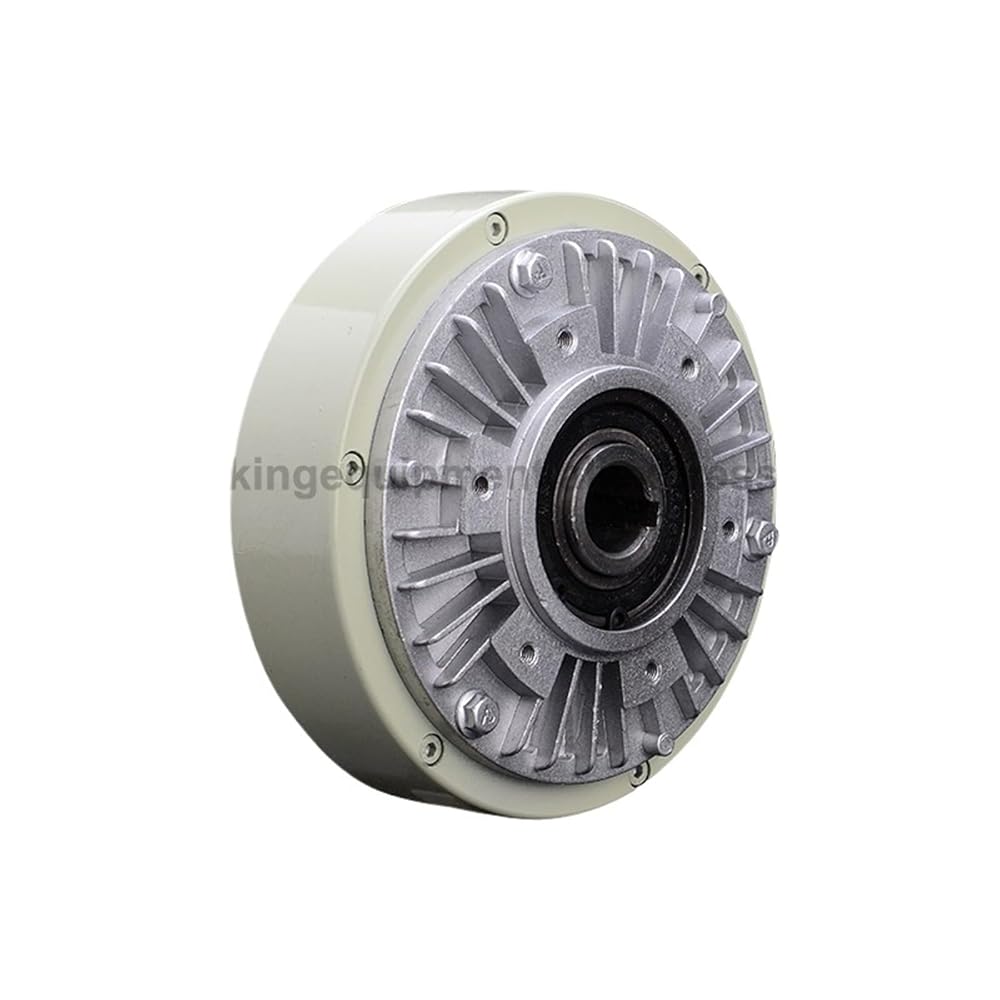

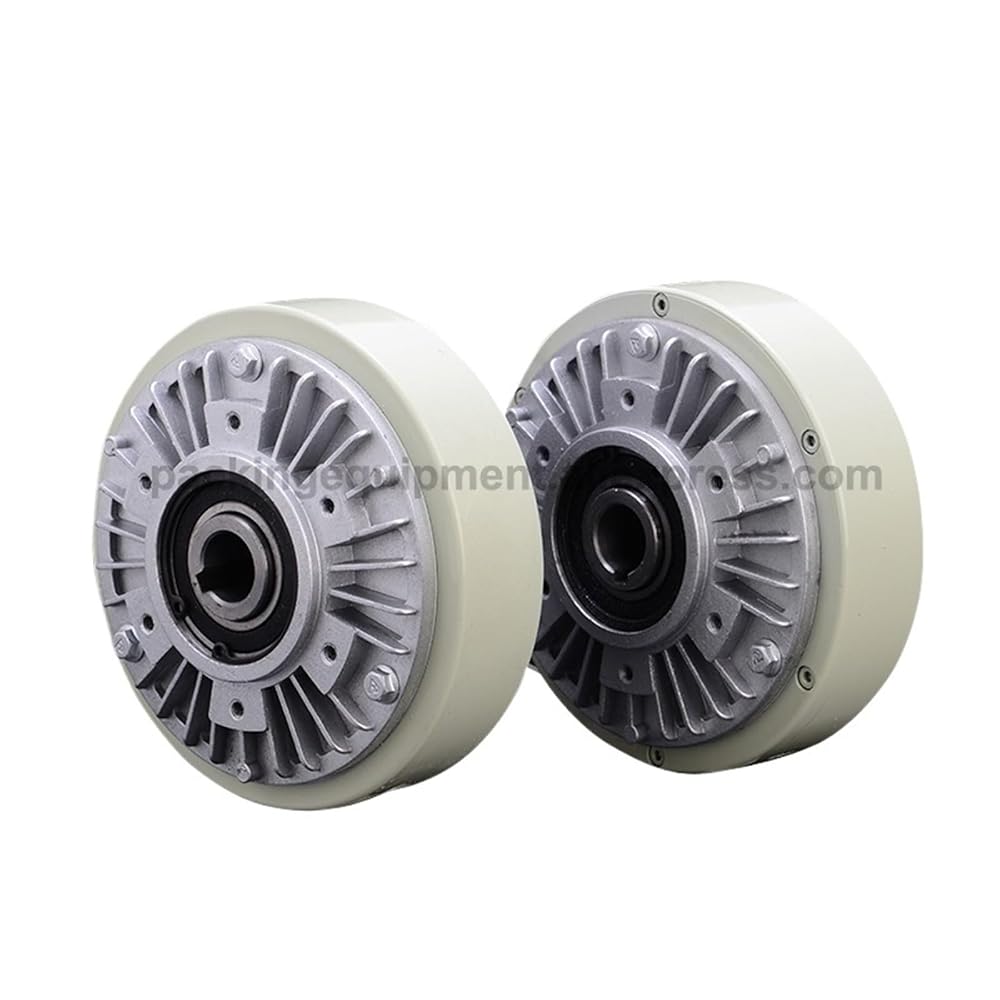

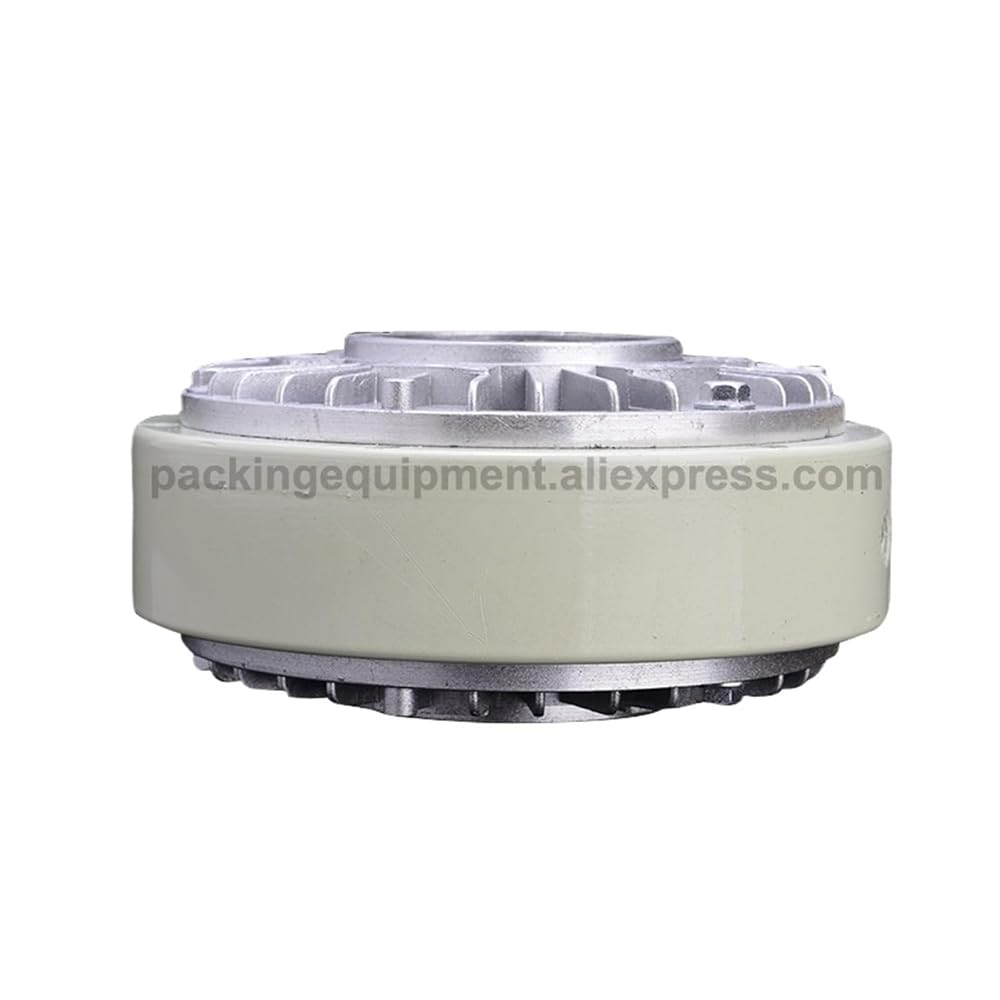

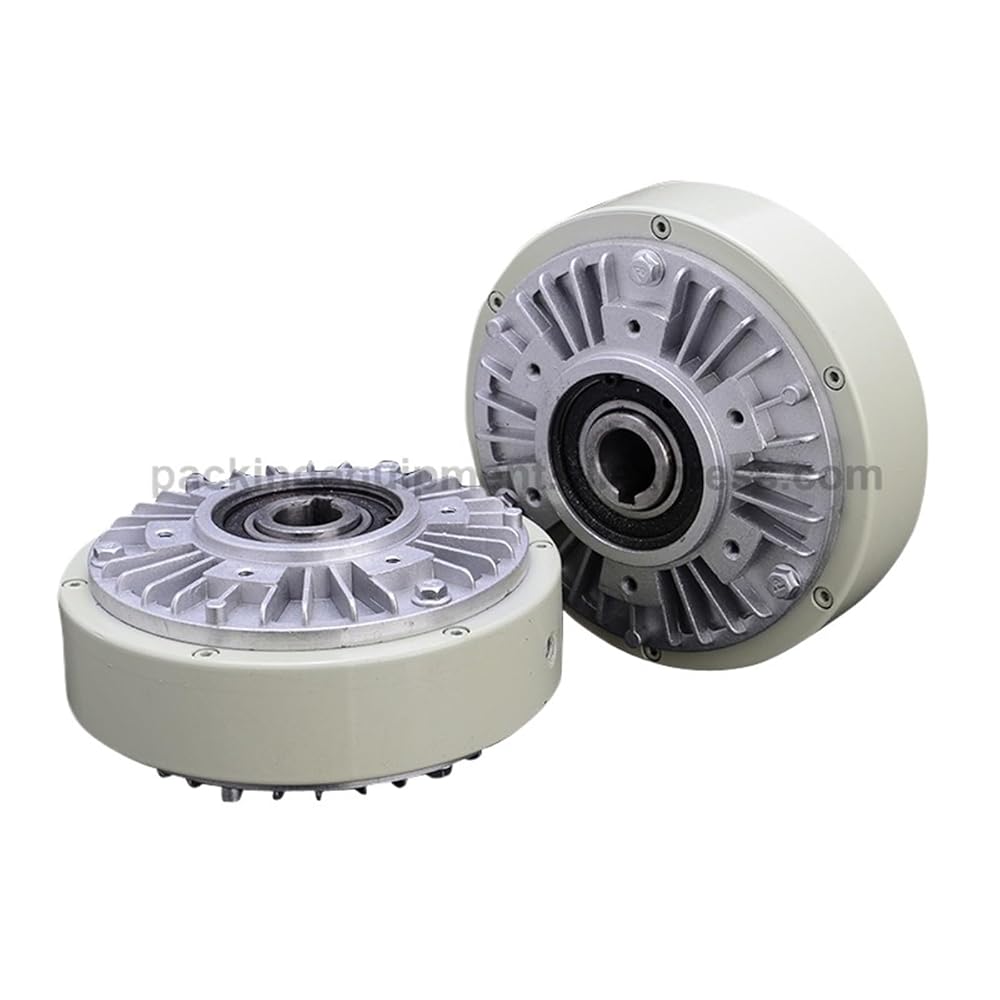

20KG FZ200K-1 Hollow Magnetic Powder Brake DC24V Powder Clutch Tension Control Correction System
The magnetic powder brake is an excellent automatic control component, which is a combination of a transmission unit and a driven unit. It uses magnetic powder as the working medium and uses the excitation current as the control means to achieve the purpose of controlling braking or transmitting . Its output has a good linear relationship with the excitation current, and has the advantages of fast response speed and simple structure. It is suitable for wire, cable, printing, packaging, textile, leather, metal foil strip processing, paper making and paper processing. In the automatic tension control system for the take-up device.
model
Technical parameters
dimension
Net weight
(kg)
(N.m)
voltage
Rotate
speed
Max
current
D1
D2
D3
L1
L2
L3
6-S
d t
FZ6K-1
6 24V
1000
0.8A
130
62
52
3 57
60
M4
16
6 3
FZ12K-1
12
1.0A
150
82
65
4 68
72
M5
20
6 4.5
FZ25K-1
25
1.5A
182
110
90
4 80
84
M6
25
4.5
7.5
FZ50K-1
50
1.8A
219
130
110
5 90
95
M8
30
8 12
FZ100K-1
100
800
2.0A
260
140
120
5 105
110
M10
35
8 20.5
FZ200K-1
200
2.8A
335
170
150
5 115
120
M10
45
14
30
Working Principle:
The magnetic powder brake is an excellent automatic control component, which is a combination of a transmission unit and a driven unit. It uses magnetic powder as the working medium and uses the excitation current as the control means to achieve the purpose of controlling braking or transmitting . Its output has a good linear relationship with the excitation current, and has the advantages of fast response speed and simple structure. It is suitable for wire, cable, printing, packaging, textile, leather, metal foil strip processing, paper making and paper processing. In the automatic tension control system for the take-up device.
Products Feature:
It adopts super-alloy magnetic powder with excellent heat resistance, low temperature rise, constant output , fast response speed and high frequency operation. The use of high-temperature coils and bearings makes the operation stable, without vibration, impact and noise during start-up, operation and braking. With overload protection, in the case of overload, the automatic slip line acts as an overload protection. Small size, light weight, easy installation and long service life.
More products pls kindly click here :Lixinsheng Packing Equipment Co.,Ltd Store
As the following is a table ofotherspec.,pls choose the perfect match standardyou need.
==========
Voltage : DC24V
Material : Cast Iron
Model Number : FZ200K-1
Origin : Mainland
