Radio Frequency Filters

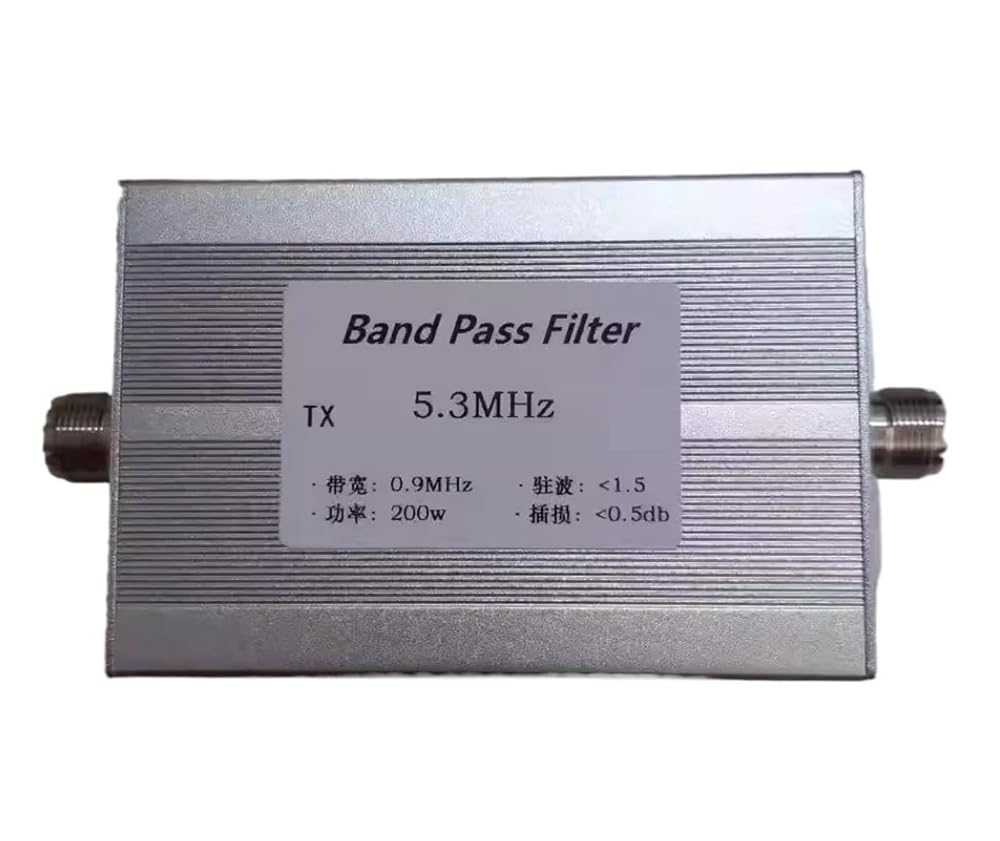

Short Wave Band Pass Filter (BPF): BPF-5.3
1. Center frequency: 5.3MHz
2. Bandwidth: 1.2MHz
2. Input impedance: 50 ohms; output impedance: 50 ohms.
3. Power: 200w
4. Standing wave: less than 1.5
5. Interface: SL16-F (M seat)
6. Insertion loss: less than 0.6db
7. External dimension: 150*76*48mm(Installation hole size: 130 * 42mm)
