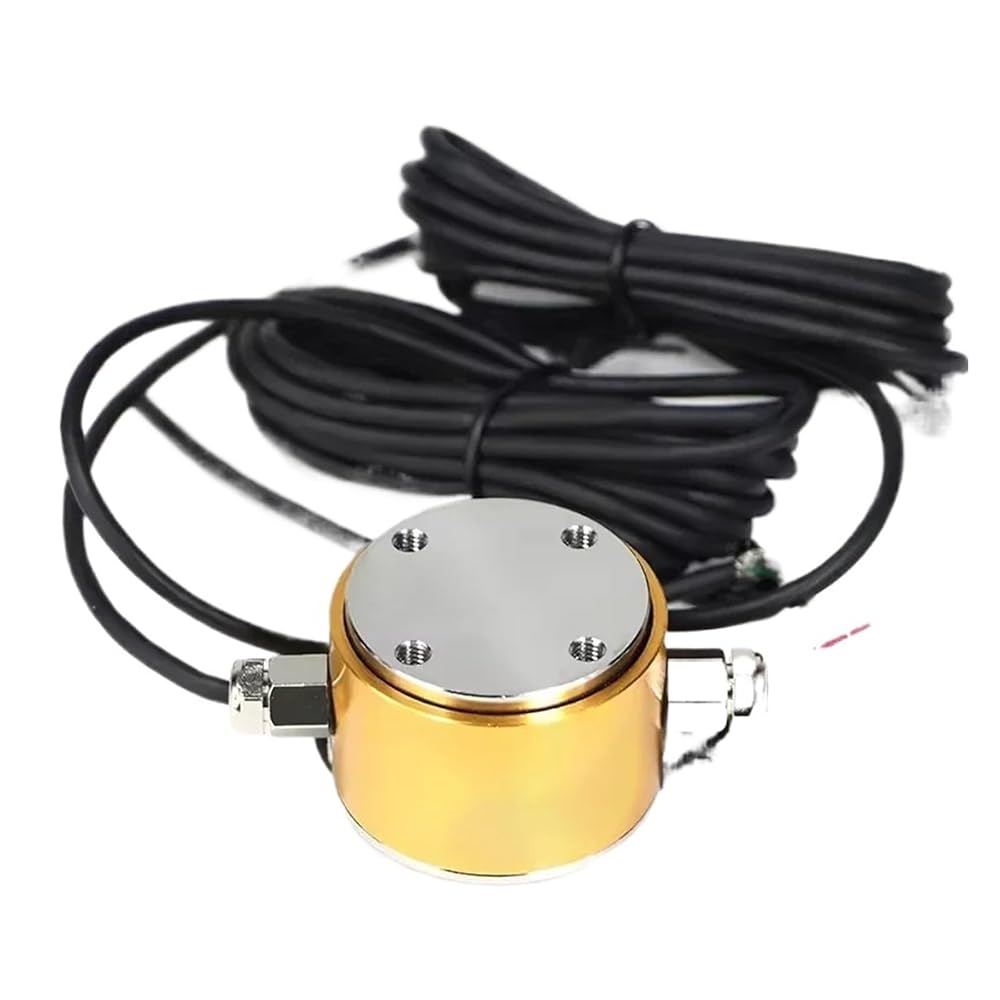

XYZ Multidimensional Load Cell 100-1000N 2 Axis Force Sensor(300N) in Saudi Arabia

1000N

SAR 8,196
Size1000N
– 1 +

Special Features

  • sensor
  • Torque sensor is a strain gauge sensor for static torque measurement or torque wrench calibration
  • Compact structure
  • It can measure both forward and reverse torque
  • Measurement of torsional moments and conversion of physical changes into information
  • The principle of operation is based on the resistive strain principle

Description

sensor
Specification
Capacity
1-50N.m 50-1000N
Response frequency
10kHz
Rated Output
2.0±10%mV/V
Material
Alloy Steel
Non-Linearity
0.1%F.S.
Impedance
350
Hysteresis
0.1%F.S.
Working voltage
5-10V
Repeatability
0.1%F.S.
Safe Overload
120%
Creep(30min)
0.05%F.S/30min
Maximum Overload
200%
Zero Balance
±2%F.S.
Cable Specifications
3*2m
TempEffect on Zero
0.05%F.S./10
Operating Temp Range
-20-80
Model Number : DSDW-003
