Radio Frequency Filters

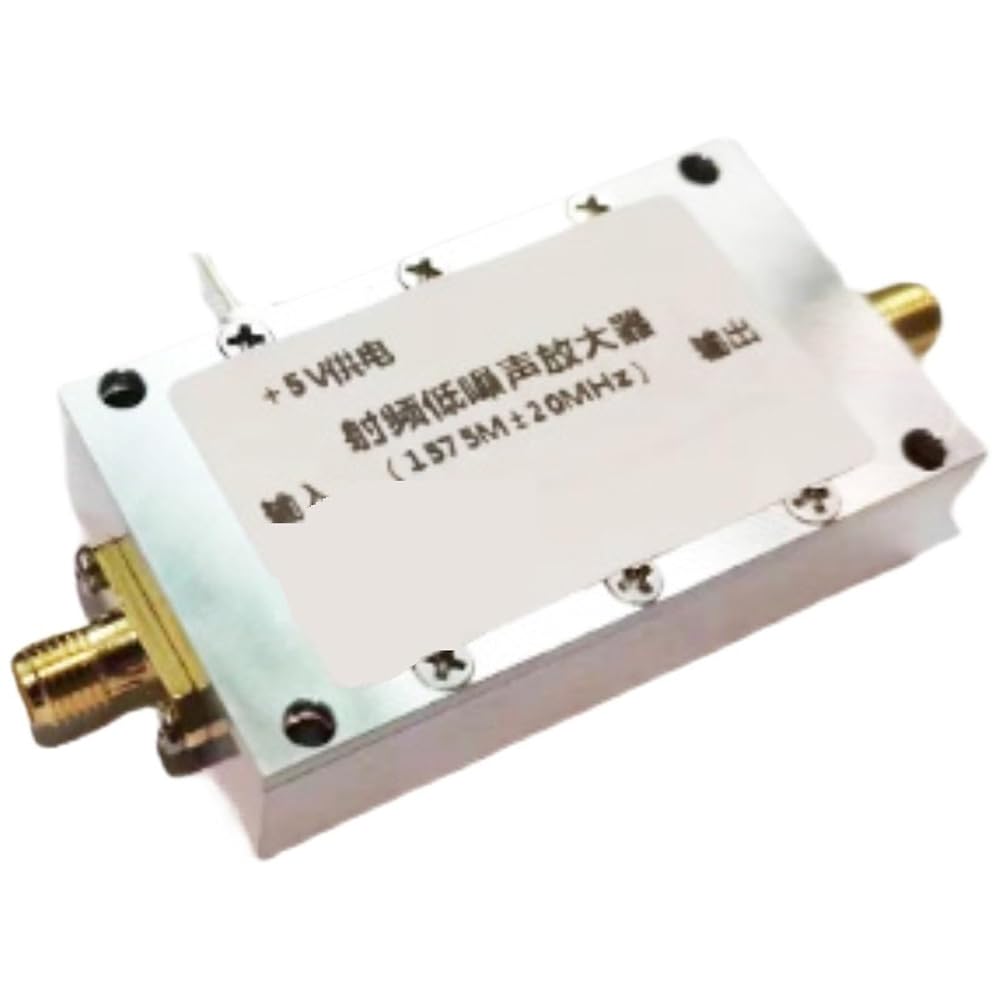

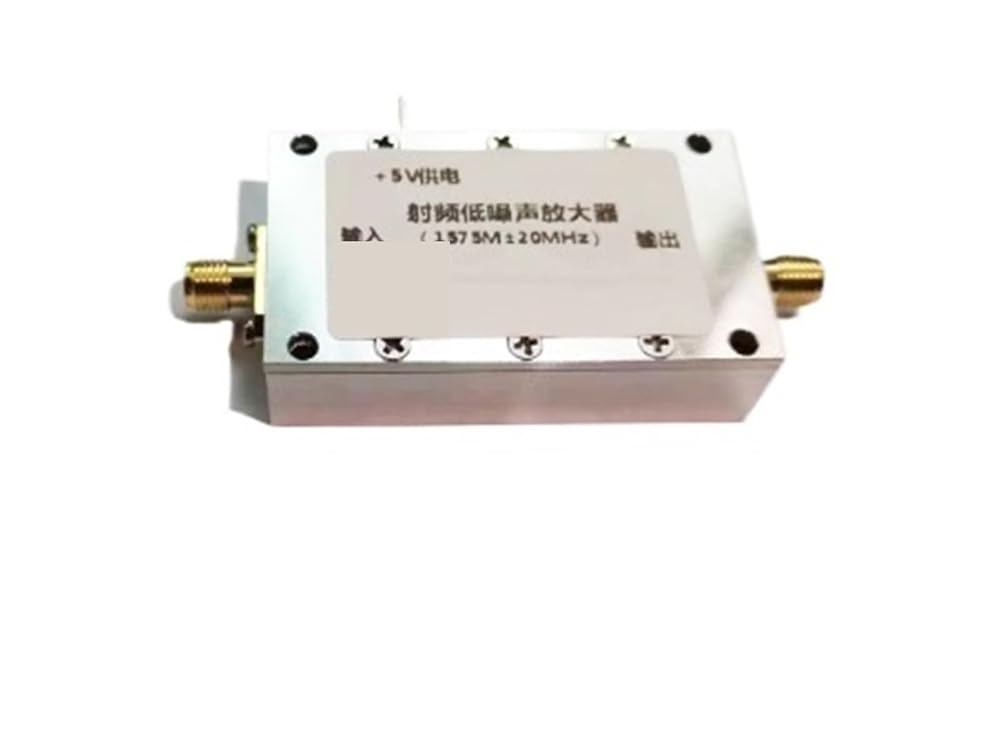

Module model: QM-LNA157540S;
Working voltage:+5V single power supply;
Working current: 80mA (low power consumption);
Working frequency: 1575M 20MHz (built-in narrowband filtering);
Gain:30dB@1575MHz (Refer to the test curve);;;;P1dB output power: 18dBm;
Noise coefficient: 0.6dB;
Input/output interface: SMA (outer screw inner hole);
Module size: 53 * 30 * 13mm (excluding connectors);
With installation fixing holes;
Module hole position:
