Radio Frequency Filters

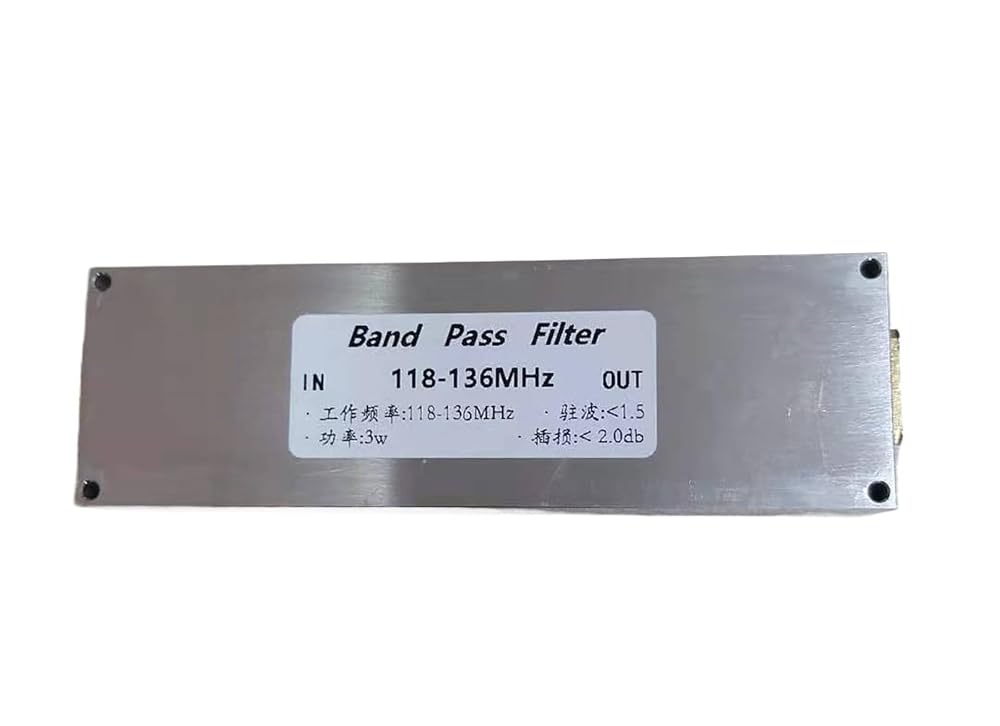

118-136MHz bandpass filter (BPF) for aviation band reception: BPF-118-136
1. For detailed technical parameters, please refer to the following information (1.5-30MHz or 3-30MHz or 7-30MHz can also )
2. Input impedance: 50-75 ohms; output impedance: 50-75 ohms.
3. The passable bandwidth is 118-136MHz
4. Insertion loss: less than 2.0db
5. TX is connected to the radio, and ANT is connected to the antenna.
6. Power: 3w (any mode)
7. Standing wave: less than 1.5

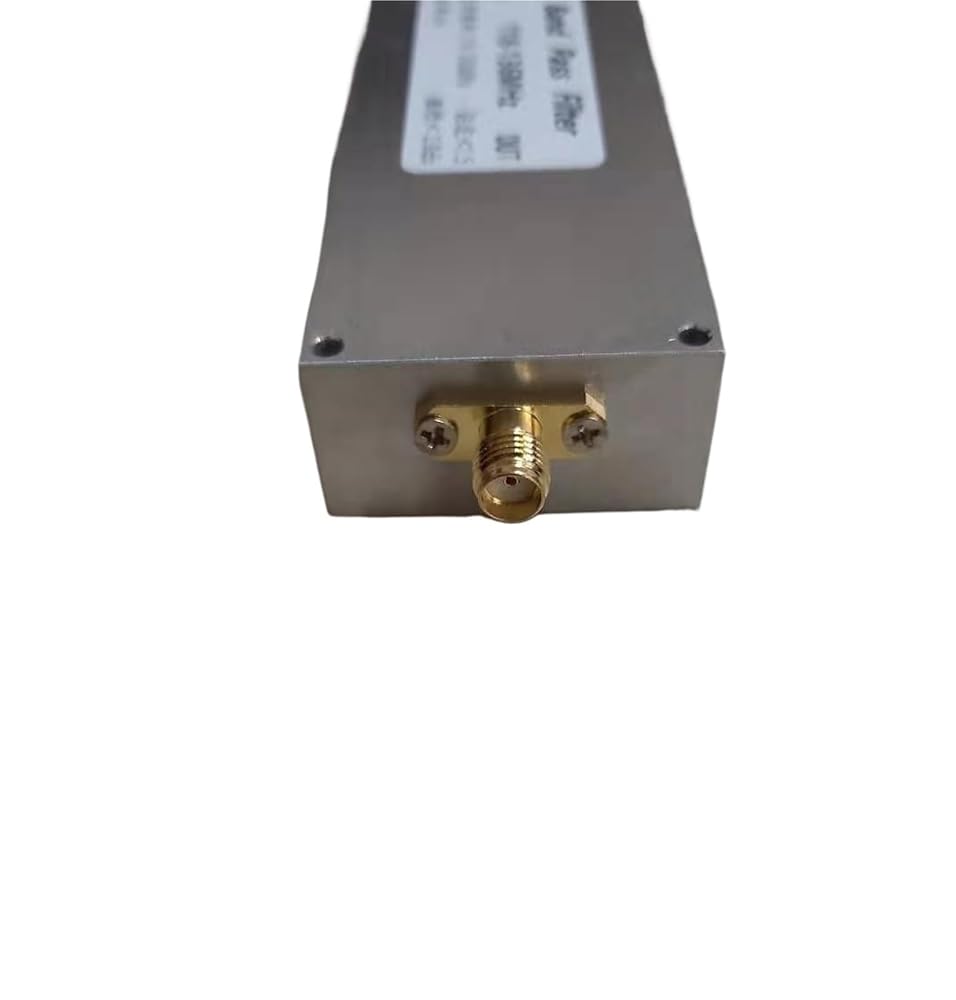

8. Interface: SMA-F

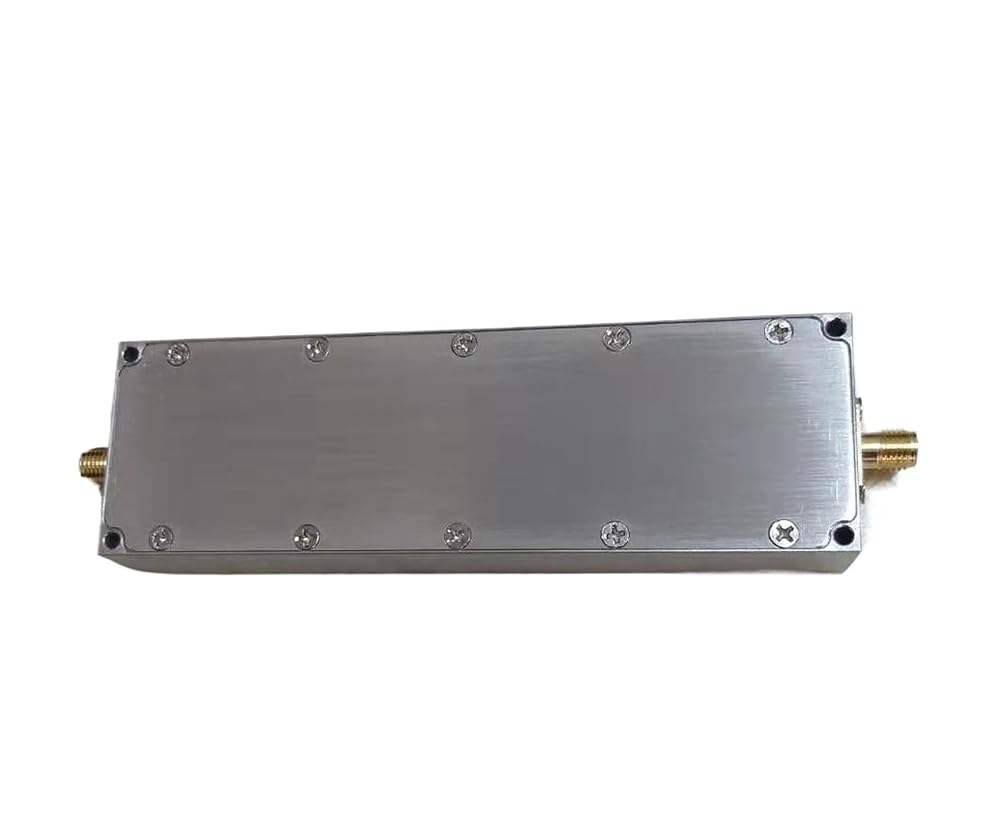

9. Outer size: 130*34*17mm (hole installation size: 105*29.5mm)
10. Net weight: 95 grams
