Radio Frequency Filters

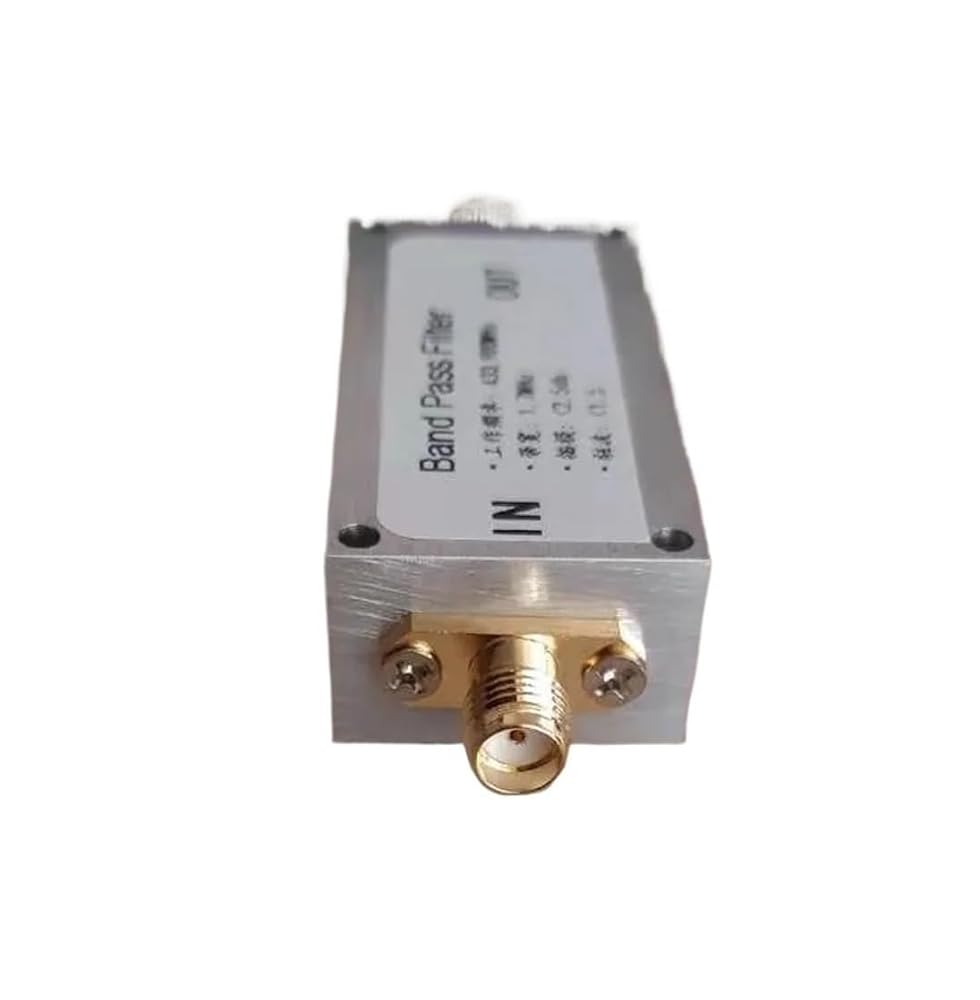

433.920MHz Band Pass Filter BPF
1. Operating frequency: 433.900MHz
2. Bandwidth: 1.7MHz
3. Passable frequency: 433.050-434.750MHz
4. Insertion loss: less than 2.5db
5. Input impedance: 50 ohms
6. Output impedance: 50 ohms
7. Maximum input signal strength: 10dbm (10mw)
8. Input interface: SMA-F (SMA female seat)
9. Output interface: SMA-J (SMA male)
10. No power supply required
11.70*31*14mm (including the protruding part)
12. Net weight: 35 grams
