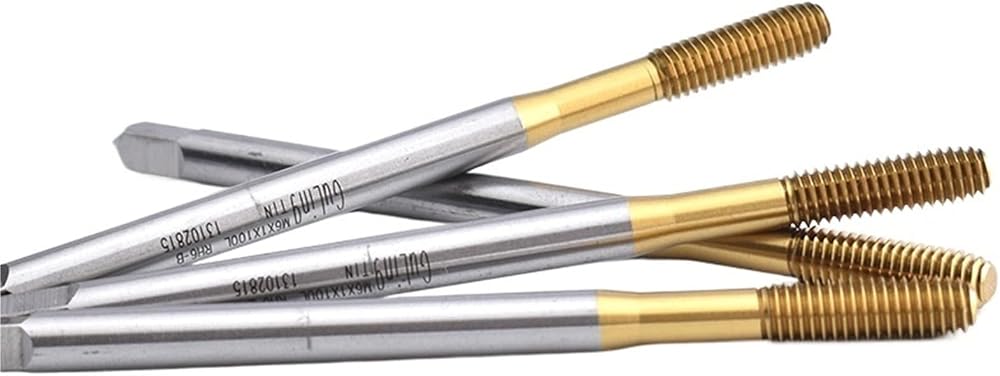

Spiral Point Taps
HSSE-M42 Metric Long Shank 100mm With TIN Forming Tap M1.4 M1.6 M2 M2.5 M2.6 M3 M3.5 M4 M5 M6 M8 M10 M12 Machine Screw Thread Taps
Overall length: 100mm
Material: HSS-E-M42
Standard Finishes: Tin coating
Type: Forming Tap
Applicable Workpiece:
suitable for low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, copper and alloy castings, etc., which does not produce crushed chips; the processing effect of steel is better.
Note:
Extrusion wire tapping is a plastic forming method in which the grinding material is embossed in the lower hole to form a thread. Therefore, no chipping occurs, and there is no chip flute, so it is also called a ditchless (chip) wire tap. This tapping does not damage the thread or the tapping due to problems such as chipping. Extrusion tapping is best suited for plastic materials such as aluminum, copper, zinc, brass and mild steel. When using the extrusion tapping, the size of the lower hole must be selected according to the precision requirements, so that the high-precision, thread can be molded. For the material characteristics and coating conditions, we have a variety of different precision grades. For customers to use.
==========
High-concerned chemical : None
Thread Direction : Right
DIY Supplies : Metalworking
Type : Tap
Origin : Mainland
