Pressure Gauges
Measure range:0-2kg/cm2, 0-4kg/cm2, 0-5kg/cm2, 0-7kg/cm2, 0-10kg/cm2, 0-15kg/cm2, 0-25kg/cm2, 0-35kg/cm2, 0-50kg/cm2, 0-70kg/cm2, 0-100kg/cm2, 0-150kg/cm2, 0-250kg/cm2, 0-350kg/cm2, 0-400kg/cm2, 0-600kg/cm2
The unit of below 4KG is MPA and KG dual scale
The unit of above 5KG is PSI and KG dual scale

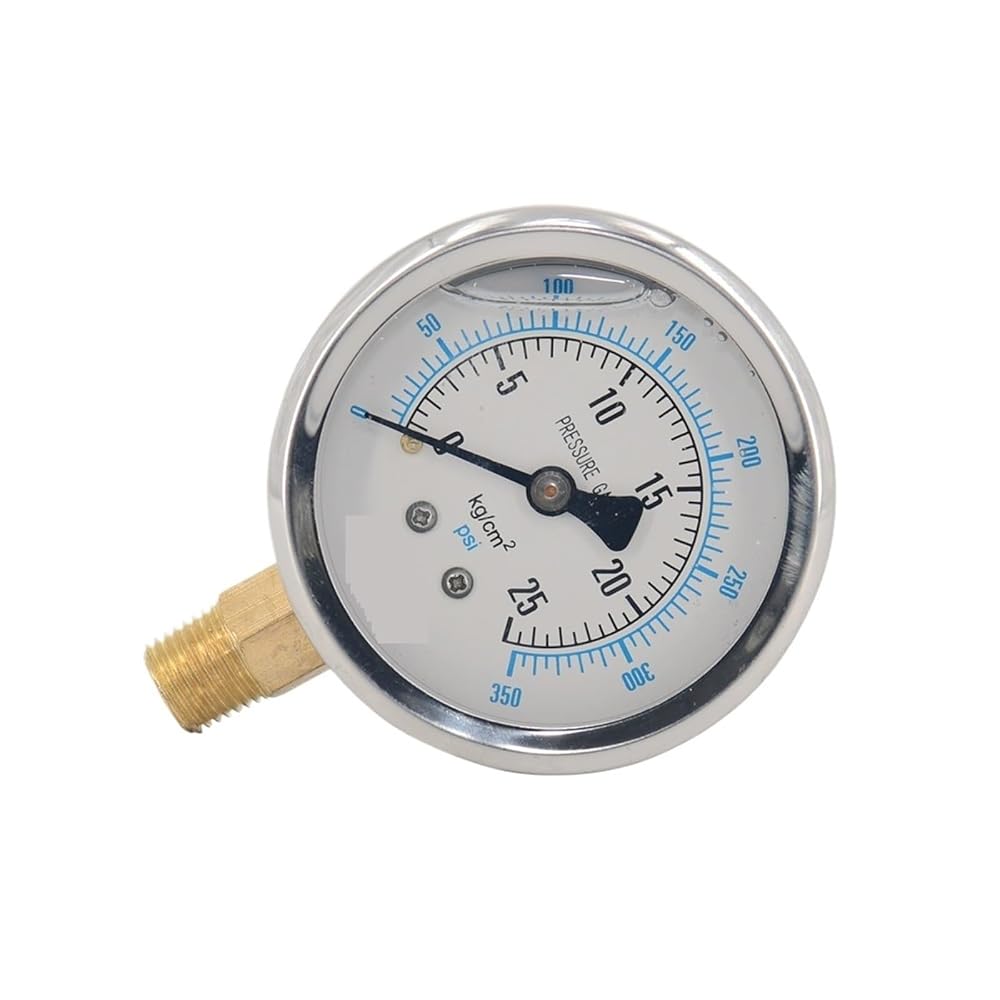

Specifications Model: YN-60 pressure gauge
Dial diameter: 60mm
Connector size: PT1/4" inch thread
Measuring range: 0-250KG Mounting: Radial
Accuracy: 2.5
Material: Stainless steel shell, movement brass, brass fittings, internal oil-filled
Color: silver metallic body, metallic joints
Environmental conditions: -5 ~ 55 , relative humidity less than 85%
Temperature: Temperature deviation from 20 ± 5 , not more than 0.4% / 10
Weight: 0.25KG
==========
Model Number : Y60
Max Measuring Range : 50 - 99 PSI
Display Type : analog
Dial Diameter : 1.9 Inches & Under
DIal size: : 60MM
connection: : brass and bottom
Thread : PT1/4"
Accuracy : 2.5
movements: : Brass
is_customized : Yes
