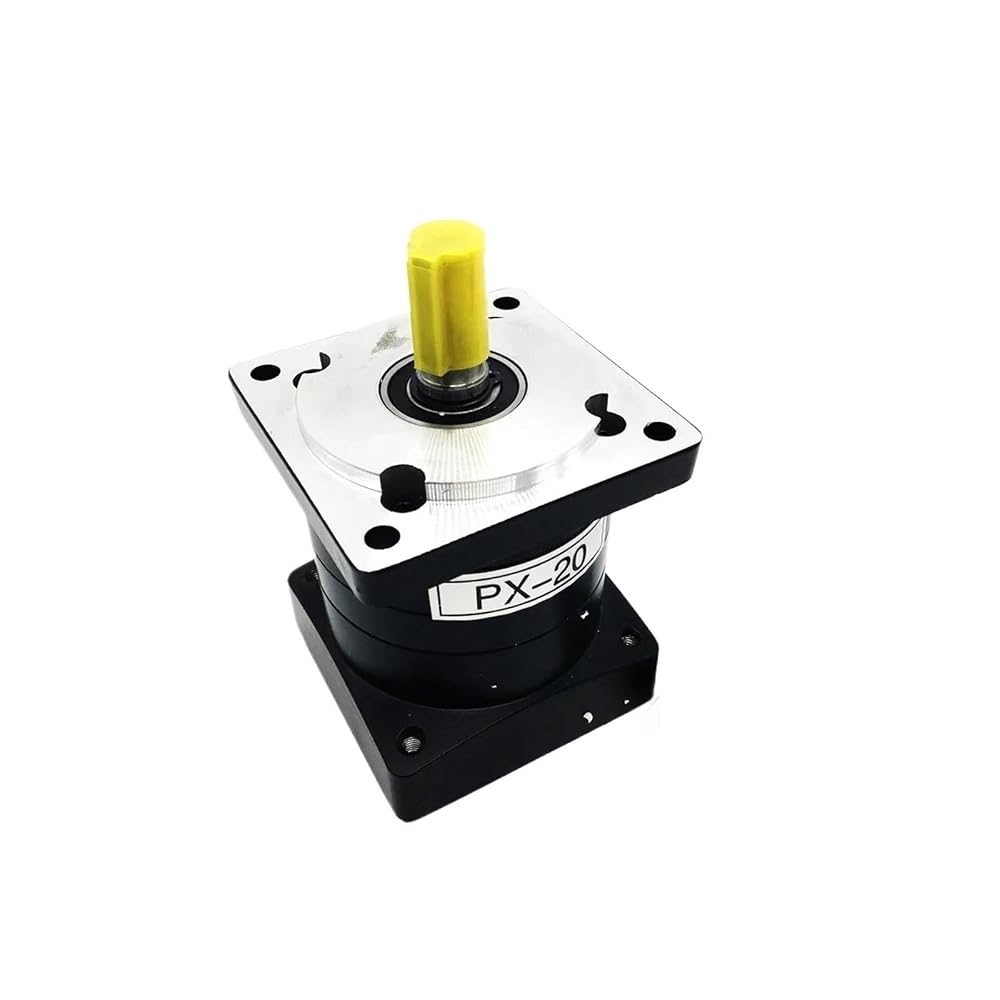

Nema 23 Planetary Gearbox Ratio 3 4 5 6 10 16 20 24 362161 Planetary Gear Gearbox Stepper Motor Nema23 24 Reducer Low Noise
Package list :
1x Planetary Gearbox
1x Key
4x Install screws
Technical Parameters
Nema23 Reducer For Stepper Motor
Stage
Stage 1(L1)
Stage 2(L2)
Stage 3(L3)
Reduction ratio
3.25/4/5/6/10
16/24/36/
30/40/50/60
100/120/150/200
Input (MM)
6.35/ 8
6.35/ 8
6.35/ 8
Output shaft (MM)
14
14
14
Keyway (MM)
5
5
5
Body length (MM)
76
90
104
Rated load (N.M)
15
30
40
Maximum load (N.M)
25
40
50
Full load efficiency (%)
95
90
85
Backlash Precision (arcmin)
15
30
50
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
