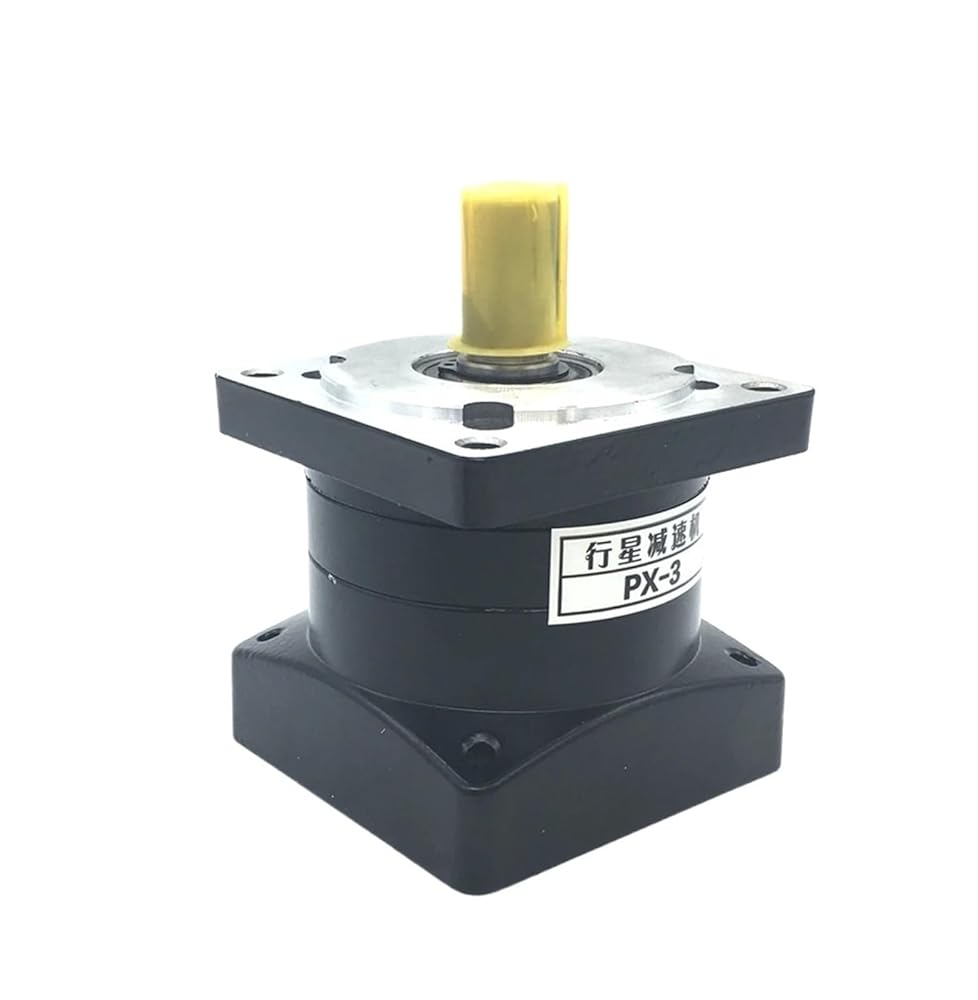

Nema 34 Planetary Gearbox Gear 86mm Speed Ratio 3:1 5:1 10:1~216 Input 1/2 Inch 12.7/14mm Nema34 Stepper Motor Reducer Step-down
Package list:
1x Planetary Gearbox(Input:14mm)
1x Key
4x Install screws
86PX Reducer Technical Parameters
Stage
Stage 1(L1)
Stage 2(L2)
Stage 3(L3)
Speed Ratio
3/4/5/6/8/10
15/20/24/30/
36/40/50/60
100/120/150/200
Input (MM)
12.7/14
12.7/14
12.7/14
Output shaft (MM)
16/14
16/14
16/14
Keyway (MM)
5 5 5
Body length (MM)
80
95
107
Rated load (N.M)
30
50
60
Maximum load (N.M)
50
80
100
Full load efficiency (%)
95
90
85
Backlash Precision (arcmin)
18
25
35
Rated input speed (RPM)
3000
3000
3000
Protection level (IP)
65
65
65
Noise (dB)
60
60
60
Average service life (H)
20000
20000
20000
Gear material
20Cr Carbon steel
20Cr Carbon steel
20Cr Carbon steel
