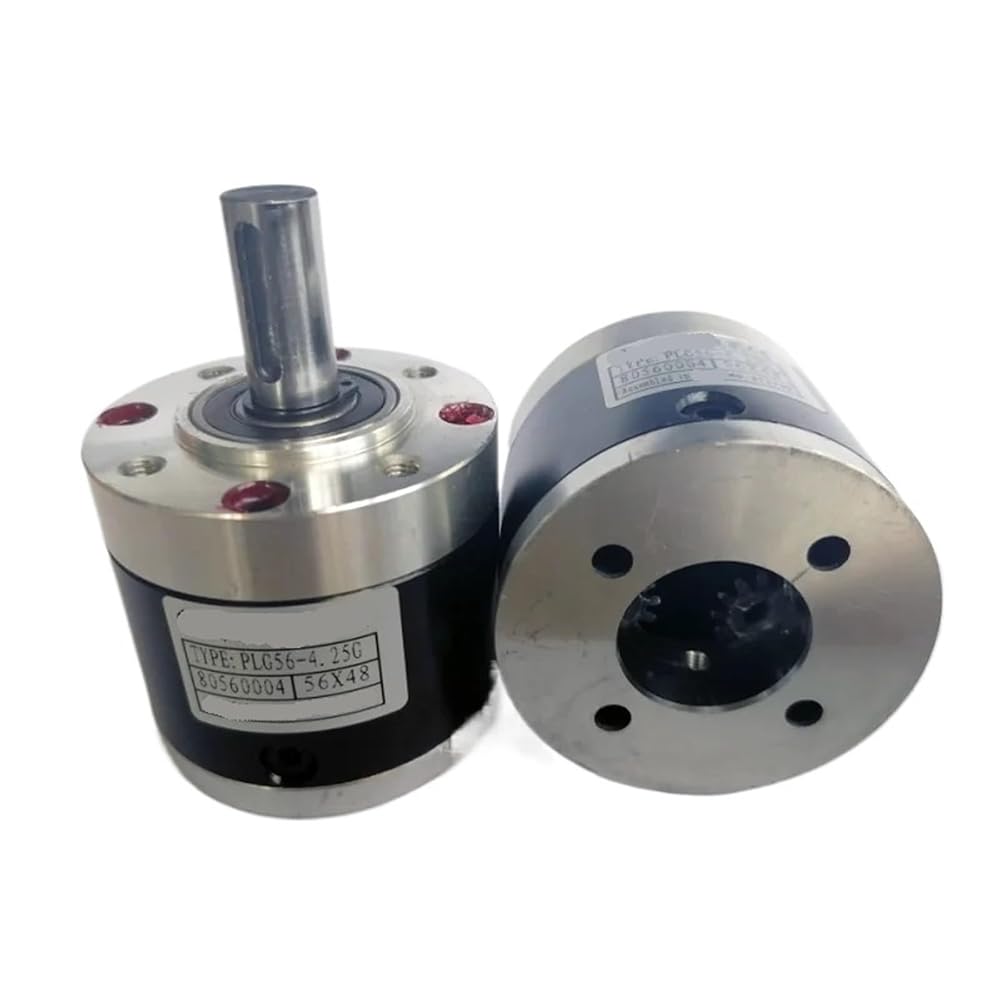

1pcs/lot Planet Reducer 56mm Speed Ratio 13:1 15:1 18:1 Round Input Flange for DC
Motor with Shaft Diameter 6mm or 6.35mm or 8mm
NOTE:
this reducer is used for DC motors with motor shaft diameter of 6mm or 6.35mm or 8mm. you can choose according to your needs.
planetary reducer*1pc+shaft key slip*1pc+screws*4pc+adaptor pinion*1pc
Note: the adaptor pinion is used to connect the motor and the planetary reducer. screws to fix the motor and reducer.
Note: This link for Stage2 speed ratio 13: 1 and 15:1 and 18:1.
this reducer is used for DC motors with motor shaft diameter of 6mm or 6.35mm or 8mm.
L=61mm for Level2 speed ratio
The round input flange:
The of the planet reducer:
If need other speed ratio click below "Level" to check more.
Stage 1(3.6:1 and 4.25:1)
Stage 3(ratio 47:1 77:1)
Stage 4(ratio 168: 1 307:1 326:1)
Note: The planetary reducer with round input flange usually used for dc motor and shaft diameter of the dc motor can be 6mm 6.35mm or 8mm shaft length is about 21mm.
