General

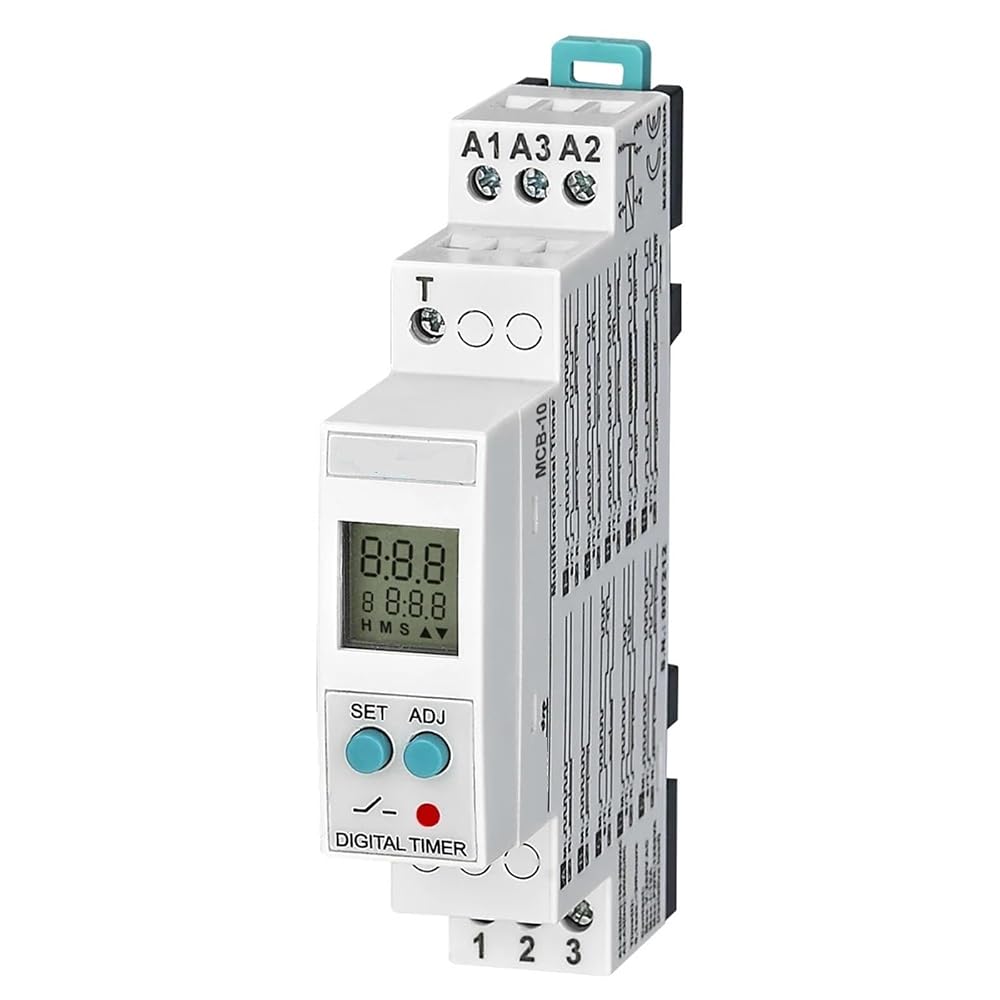

MCB-10 time relay is specifically designed for controlling the time and incoming data and can be used in industry, residential, facilities.
Device Display and Buttons
It indicates the remaining time.
Set time: It shows the time set by the user.
Up / Down (/): Up/Down ()(): lt shows that the counting starts from set time or continues until the set time. It blinks during the set time while the device isrunning.
Function: lt shows the device operating function.
Time Unit: lt shows time unit which is set time.
LED Indication: It shows relay On or Off status.
Button
(SET)(ADJ):Press and hold for 3 seconds at the same time to enterthe settings menu.
(SET): lt confirms parameters in function selection menu and time adjustment.
(ADJ): lt adjusts parameters in function selection menu and time adjustmentmenu.
Function Button(Fn)
-A- ON Delay
After the device is powered on, the delay starts, the M Led flashes during , and the relay is output after the delay ends, relay Led is on and the M Led is on.
Re-execution requires power-off reset.
-b- OFF Delay
After the device is powered on, Relay immediately output, relay Led on, delay starts, the M Led flashes during , and the relay is stop output after the delay ends, relay Led off and the M Led is on.
Re-execution requires power-off reset.
-C- Control ON Delay
After the device is powered on, when the T signal is turned on, the delay starts, the M Led flashes, and the relay outputs after the end, relay Led on and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.
-d- Control OFF Delay
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.
-E- Single Shot Leading Edge With Control Input
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of .
-F- Single Shot Trailing Edge With Control Input
After the device is powered on, when the T signal is turned on, continue waiting, When the T signal is detected to be turned off relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of .
-G- ON Delay And 0FF Delay With Control
After the device is powered on, when the T signal is turned on, the delay starts, the M Led flashes, and the relay outputs after the end, relay Led on and the M Led is on. When the T signal is detected to be turned off, the M Led flashes, and the relay stop outputs after the end, relay Led off and the M Led is on.
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared.
-H- Pulse Output With Control
After the device is powered on, when the T signal is turned on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.When the T signal is turned on again, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on.
If the T signal is turned off during the delay, it will not interruption of .
-L- Equivalent Timed Flasher (t=ton=toff)
After the device is powered on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on. Re-delay, the M Led flashes, and the relay outputs after the end, relay Led is on and the M Led is on.(Infinite loop)
If the T signal is turned off during the delay, it will not interruption of .
-N- Equivalent Timed Flasher With Control (t=ton=toff)
After the device is powered on, relay immediately output, relay Led on, the delay starts, the M Led flashes, and the relay stop outputs after the end, relay Led is off and the M Led is on. Re-delay, the M Led flashes, and the relay outputs after the end, relay Led is on and the M Led is on.(Infinite loop)
If the T signal is turned off during the delay process, the delay will be stopped and the delayed will be cleared and the stop relay output.
Not_1:
Function Selection MenuProgram Selection
Specifications
Operating Voltage(A1-A2)...: 220VAC Or 110VAC
Operating Voltage(A2-A3)....: 24V AC/DC
Operating Frequency.......: 50/60 Hz.
Trigger Voltage(TR).........:24V-240V
Operating Temperature..: -20°C.....+55°C
Time(t).................................: 0.1sec, - 999hours
Display:.................: LCDx1, LEDx1
Connection Type..............: Terminal connection
Contact....................:5A/250V AC (Resistive Load)
Mounting.................: Assembled on the din rail
Protection Class...........: IP20
Cable Diameter.................: 2,5mm²
