Relays
Operating voltage: 85 ~ of nominal voltage
Electrocution capacity: 5A / AC220 (resistance)
Mechanical lifetime: 2.1 million cycles
Product power consumption: 3W
Control precision: 0.2% + 0.05 sec
Electric appliance life: 100000 times
Ambient temperature: - 10 ° C - 50 ° C
Altitude: 2000 m
Installation: panel or 35mm rail type
Product model
Dh48s-s: group 1 power down delay band cycling with pause and reset features
Power on time lapse of dh48s-1z: 1 group without cycling, with pause and reset functions
Power on time lapse of dh48s-2z: group 2 without cycling, without pause and reset functions
Power break in group dh48s-2z-s|2 delays band cycling without pause and reset
Dh48s-2zh: group 1 transient and group 1 time lapse without cycling, without pause and reset functions
Manual power restart without reset is required to reset time

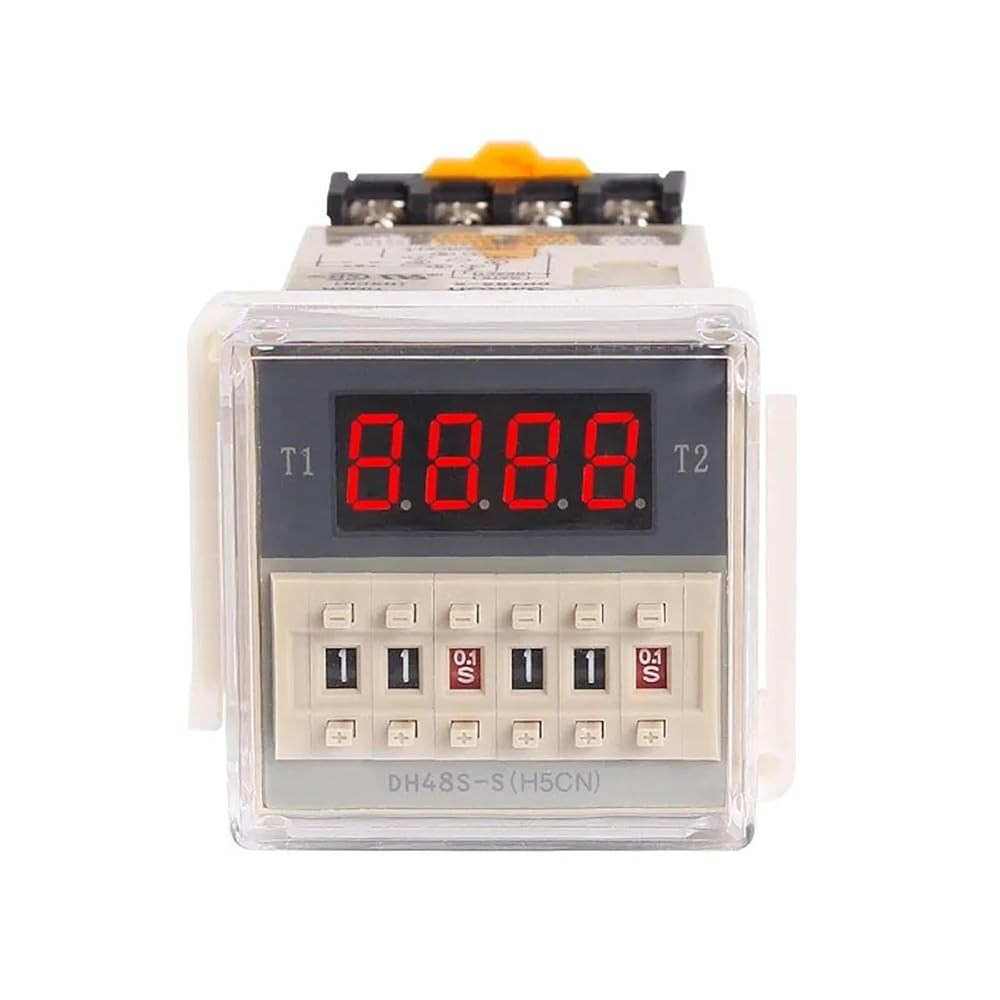

Digital time lapse time relay
model
Dh48s-s: 0.1 sec-99 HR
Dh48s-1z: 0.01 sec -99.99 HR
Dh48s-2z: 0.0 sec -99.99 HR
Contact capacity: 5A / AC220
Control precision: 0.2% 0.05s
Ambient: - 10 ° C 50 ° C
Optional voltage: common voltage 220v14v 12V
==========
