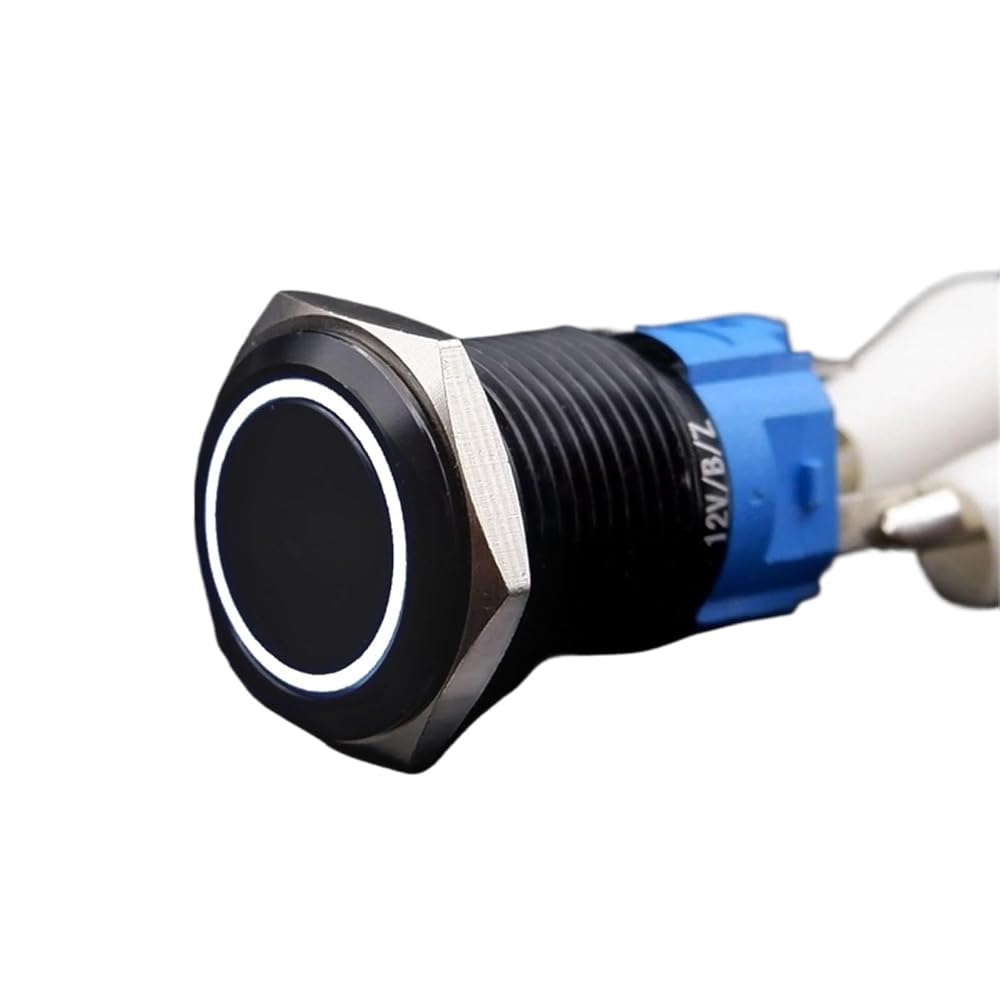

Metal PC Button Switch 22mm Oxidation Black Car Power Start With Led Waterproof Momentary Locking 5V 12V 220V, 1pcs
Note: Connectors need to be purchased separately, you can click the following image to purchase.
Switch type:power switch button
Hole diameter:16/19/22mm
Led color:red/orange/green/blue/white
Operation method:Momentary self-reset/Latching self-locking
Led Voltage:3-6V/12-24V/110-220V
Maximum current:4A
Waterproof level:IP66
Contact type:1NO1NC
Manual measurement, there may be a little error.The protruding part of the high head push button is about 2mm.
Switch push button with rubber sealing ring, waterproof and dustproof.
Difference between Momentary self-reset and Latching self-locking:
1.Momentary/Self-reset: When you press the button, press-key will automatically return.(Like a car horn switch.Press it-power on, release it-power off.)
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.(Like a light switch.Press it-power on, press it again-power off.)
How to connect?
(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.
Certificate authentication
Wiring Diagram(16/19/22mm)
1,The button turns the LED light on and off,the circuit is alway open unless press the button.
2,LED lights are always on,the circuit is alway open unless press the button.
3, The button turns the LED light on and off,the circuit is alway close unless press the button.
4,LED lights are always on,the circuit is alway close unless press the button.
High-concerned chemical : None
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Current : 4A
Material : Alloy
Switch Type : Push Button Switch
Is Smart Device : No
