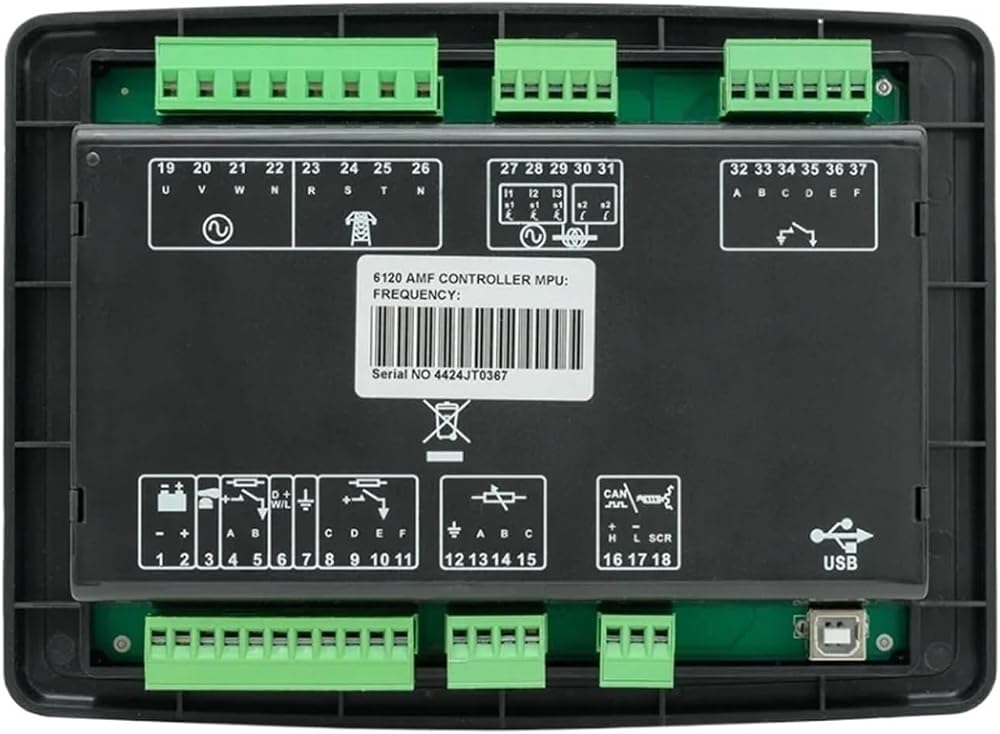

Phase Angle Controllers
Specification
Operating Voltage DC8.0V to DC35.0V,Continuous Power Supply.
Alternator Input Range 15V - 360 V AC (ph-N)
3-Phase4-Wire 26V - 620 V AC (ph-ph)
3-Phase3-Wire 15V - 360 V AC (ph-N)
Single-phase2-wire 15V - 360 V AC (ph-N)
2-Phase3-Wire:
Alternator Frequency 50/60Hz
Speed Sensor voltage VPP 2.2 - 100Vpp (Peak to peak)
Speed Sensor Frequency 10000Hz (max)
Start Relay Output 16Amp Controller Power Voltage Output
Fuel Relay Output 16Amp Controller Power Voltage Output
Programmable Relay Output 1 7Amp 250VAC Voltage Free Output
Programmable Relay Output 2 7Amp 250VAC Voltage Free Output
Programmable Relay Output 3 16Amp 250VAC Voltage Free Output
Programmable Relay Output 4 16Amp 250VAC Voltage Free Output
Case Dimension 210mm x 152 mm x 48 mm
Panel Cutout 186mm x 141mm
