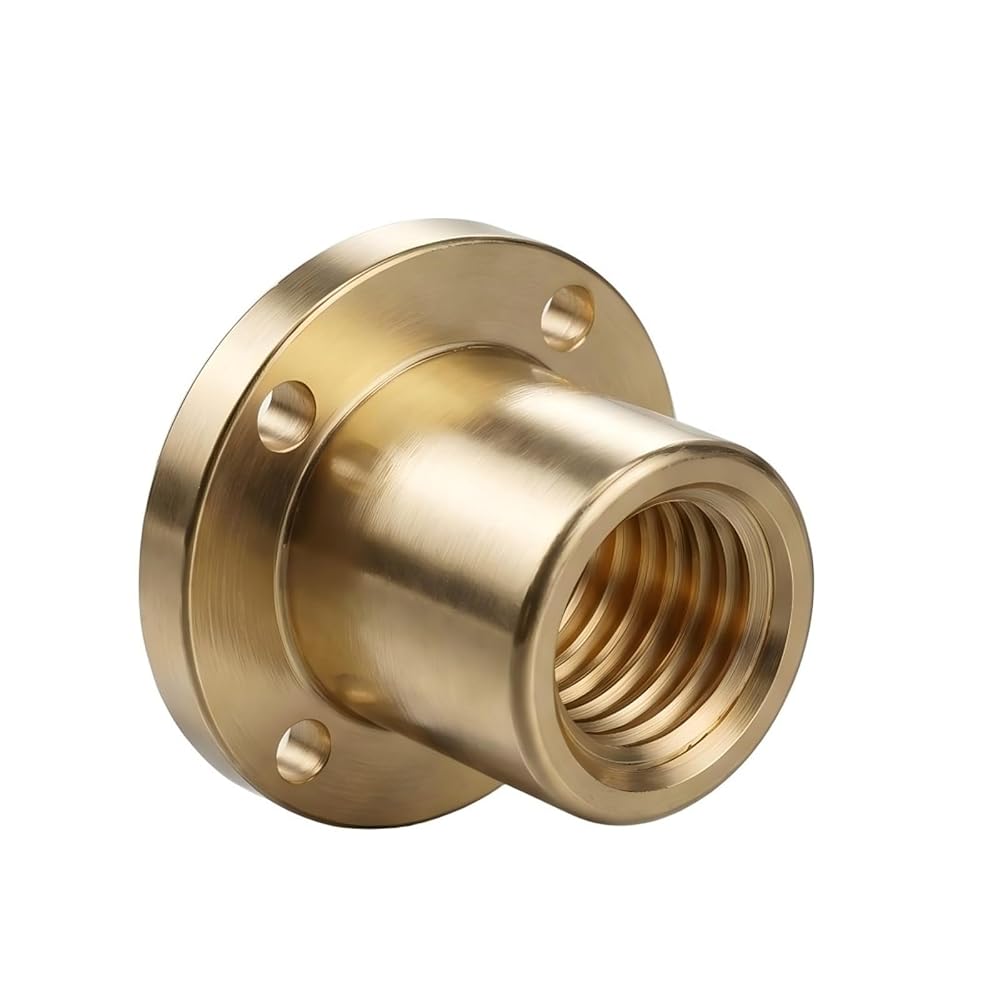

Tr22 Lead Screw Flange Nut, Brass, Right Hand Trapezoidal Thread, 22mm Diameter Thread, 4mm 5mm Pitch, Single Start (TR22X4) in Saudi Arabia

TR22X5

SAR 106

Weight
180 g
SizeTr22X5
1 +

Special Features

  • MATERIAL: Crafted from brass, this T22 lead screw flange nut offers excellent durability and corrosion resistance
  • THREAD SPECIFICATIONS: Features a right hand trapezoidal thread with a 22mm diameter, available in 4mm or 5mm pitch options to suit your application
  • Tr22x4 CONFIGURATION: The Tr22x4 nut has a 22mm diameter thread, 4mm pitch, 4mm lead, single start, and single head design for precise linear motion
  • Tr22x5 CONFIGURATION: The Tr22x5 nut has a 22mm diameter thread, 5mm pitch, 5mm lead, single start, and single head design for smooth and accurate movement
  • WIDE COMPATIBILITY: Designed as a flange nut for easy mounting, this lead screw nut is ideal for CNC machines, 3D printers, and other linear motion systems

Description

The T22 Lead Screw Flange Nut is a precision engineered component crafted from brass, making it a reliable choice for linear motion applications. Featuring a right hand trapezoidal thread with a 22mm diameter, this flange nut is available in two pitch options: 4mm and 5mm. The Tr22x4 configuration offers a 22mm diameter with a 4mm pitch, 4mm lead, and a single start design, while the Tr22x5 configuration provides a 22mm diameter with a 5mm pitch, 5mm lead, and a single start design. The trapezoidal thread profile ensures efficient load transfer and smooth linear movement, making it well suited for use in lead screw assemblies, CNC machines, and other precision mechanical systems. The brass construction provides excellent durability and resistance to wear, ensuring long lasting performance. The flange design allows for easy mounting and secure positioning within your assembly. Whether you are building or maintaining a linear motion system, this lead screw flange nut delivers consistent and dependable results.
