24V Permanent Magnet Power Off Brake for 60mm NEMA 24 Stepper Motor | 4.8W, 2.5 N·m, 8mm Shaft Hole, 60mm NEMA 24 Motor, Emergency Power Loss Stop, Automation Equipment

SAR 349
Weight
151 g
– 1 +

Special Features

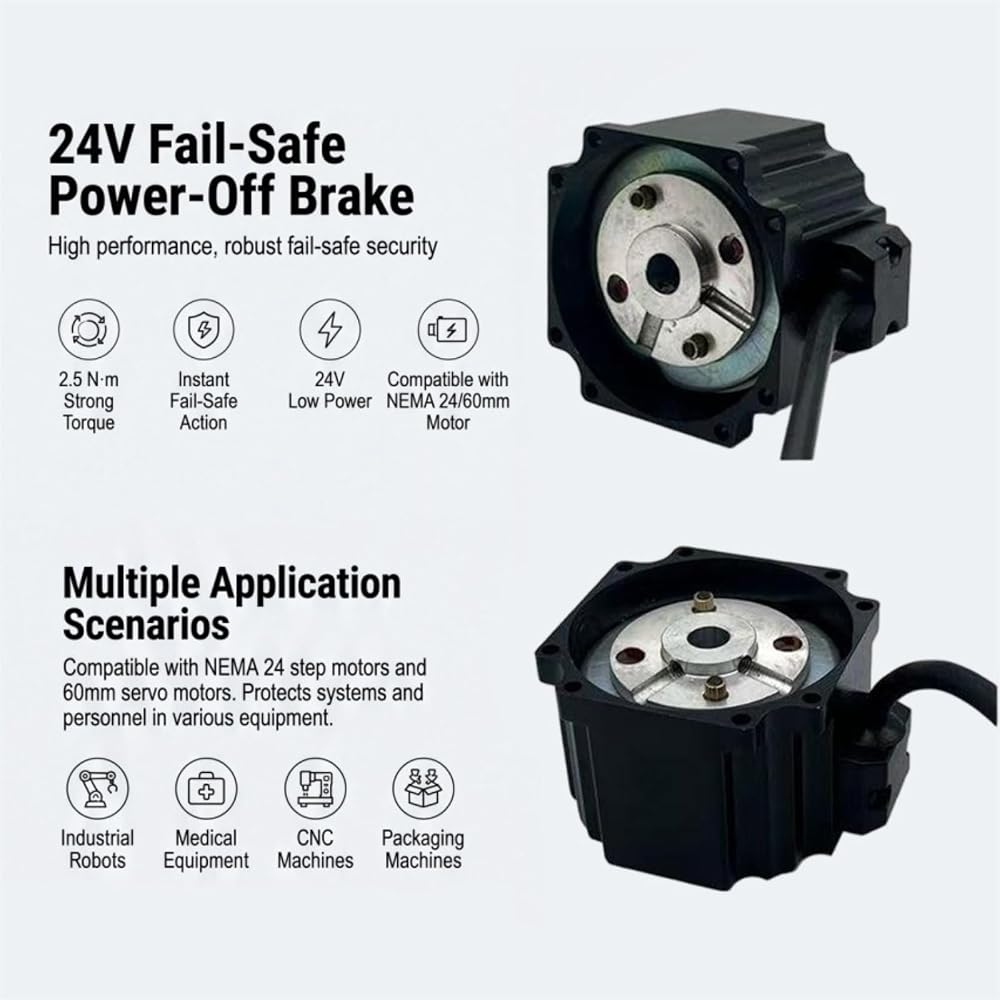

  • SPECIFICATIONS: Operates at 24V with 4.8W power consumption, delivers 2.5 N·m of holding torque, and features an 8 mm (approx. 0.315 in) bore diameter
  • COMPATIBLE WITH: Designed specifically to fit 60 mm NEMA 24 stepper motors for seamless integration into existing setups
  • FAIL SAFE BRAKING: Permanent magnet design securely holds the friction plate when power off, ensuring reliable emergency stopping during power loss
  • WORKING PRINCIPLE: When powered, the coil's magnetic field cancels the permanent magnet's force, releasing the friction pad to rotate freely with the shaft
  • WIDE APPLICATION: Ideal for automation equipment, chemical and food processing, machine tools, printing, packaging, and other machinery requiring emergency braking

Description

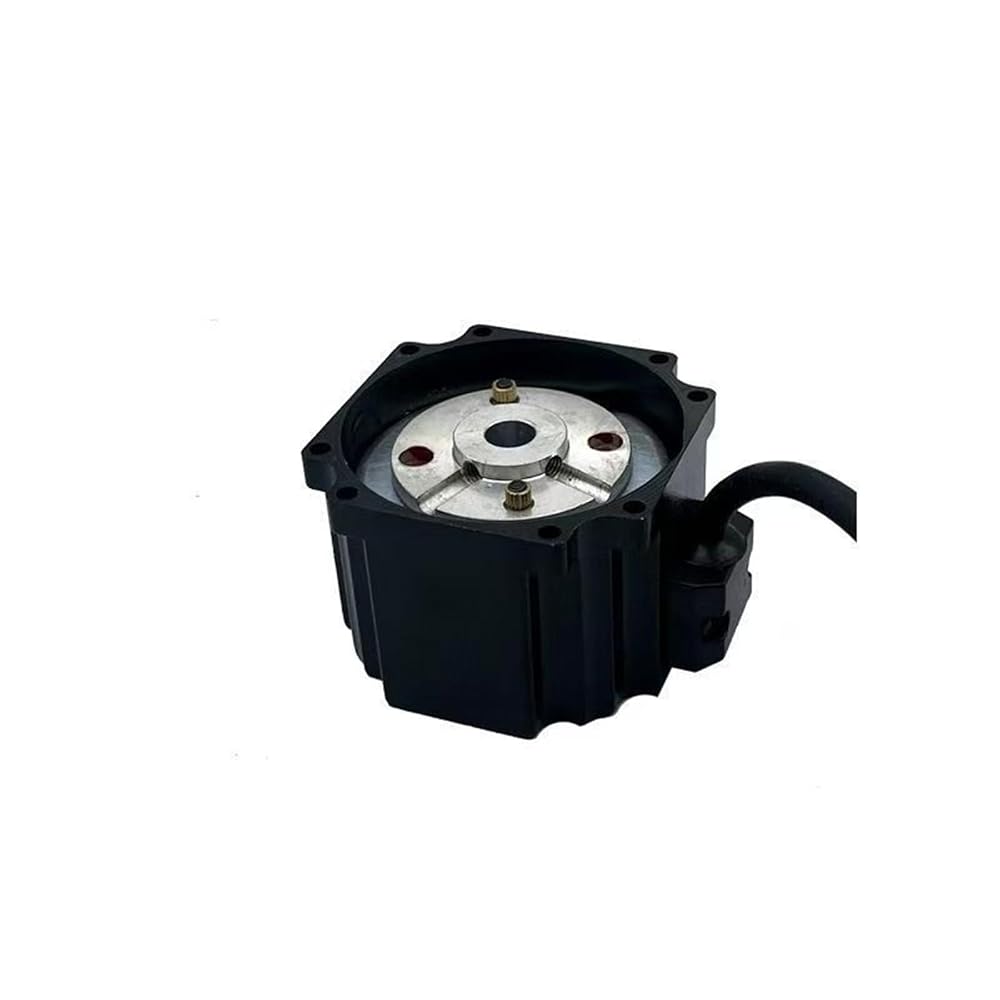

Model: Permanent Magnet De-energized Brake
Voltage: 24V
Power: 4.8W
Torque: 2.5 N·m

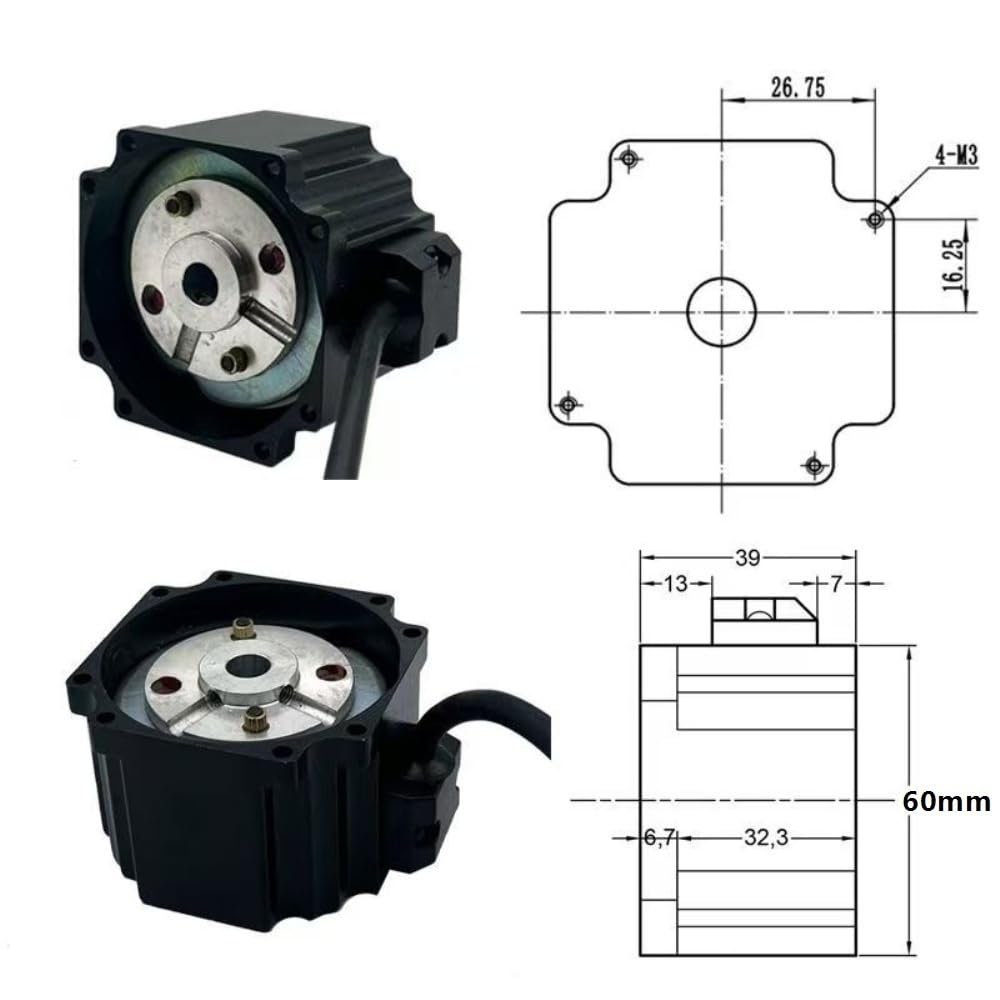

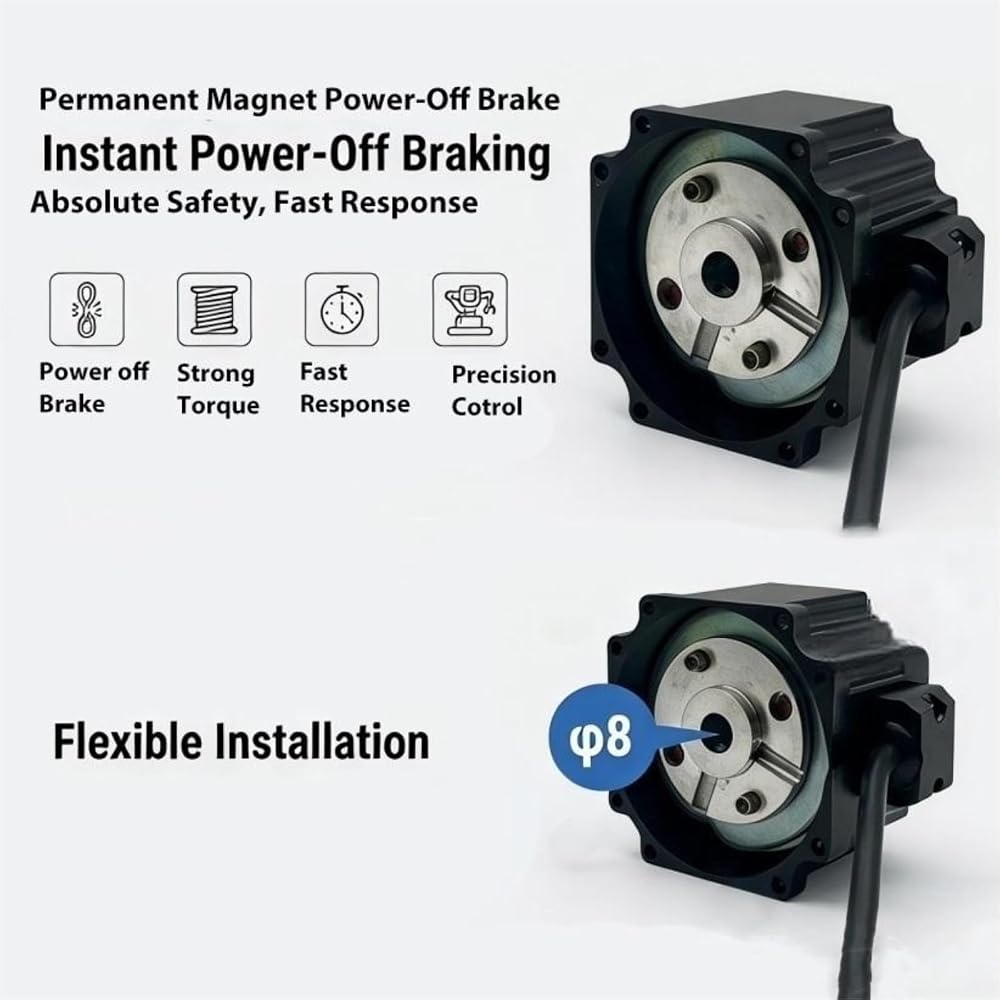

Bore Diameter: 8 mm

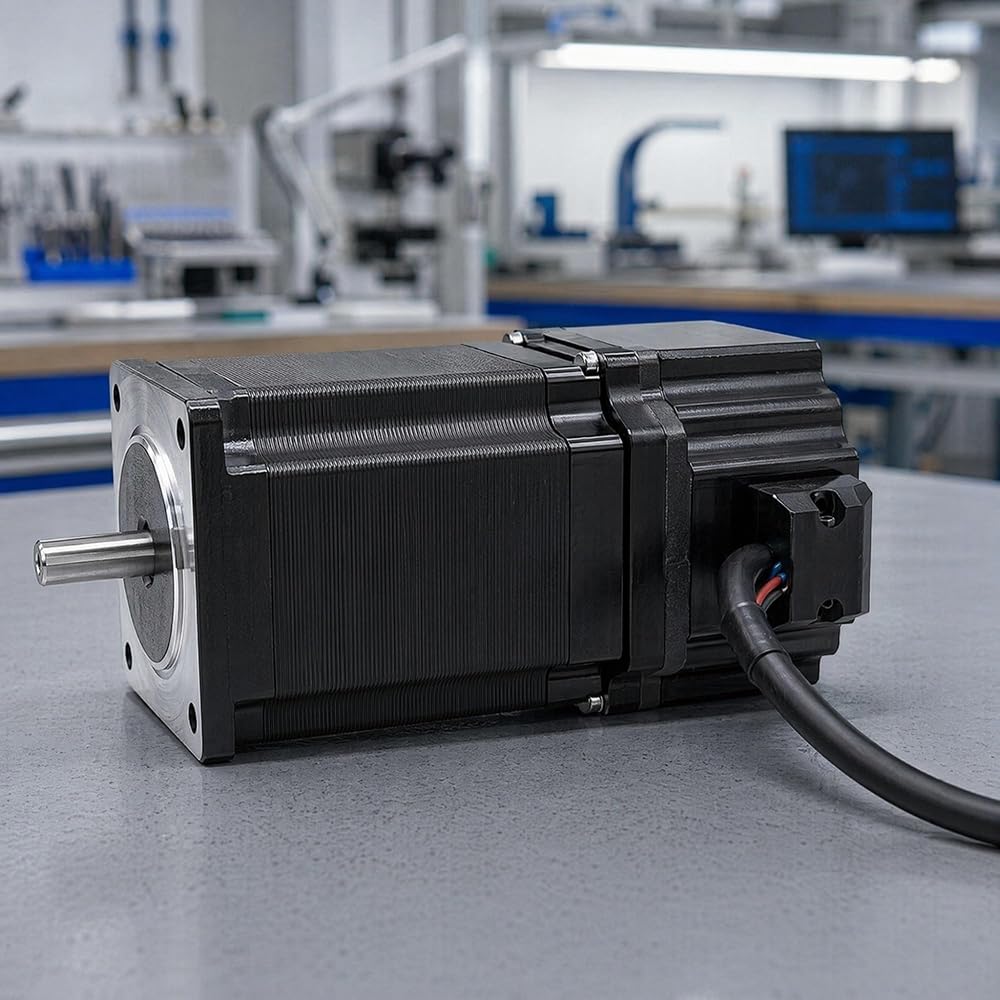

Compatible Motor: 60 mm NEMA 24 stepper motor
Working Principle of the Permanent Magnet Brake: When power off, the strong magnetic force of the permanent magnet securely holds the pure iron friction plate in place; When power is applied, the magnetic field generated by the coil cancels out the magnetic field of the permanent magnet. At this point, the pressure spring on the friction pad assembly rebounds, and the friction pad rotates with the shaft.
Applications: Widely used in machinery such as automation equipment, chemical processing, food processing, machine tools, printing, packaging, and medical equipment, as well as in applications requiring emergency braking when power is lost.
