3Pcs ADUM1201 Dual-Channel Digital Isolator Module Magnetic Isolation SPI/CAN Bus Transceiver High Reliability Low Power Consumption

SAR 42
– 1 +

Special Features

  • High-Speed Data Transfer up to 125 Mbps with the ADUM1201 serial port dual-channel digital isolator module, ensuring reliable and fast communication for SPI, CAN bus, and other critical applications
  • Low Power Consumption at just 0.8 mA, the ADUM1201ARZ magnetic isolation board is ideal for low-voltage systems, offering 1/10th the power usage of traditional optical isolators
  • Enhanced Performance with higher timing accuracy and better transient common mode rejection, the ADUM1201 ensures robust signal integrity in industrial and medical environments.
  • Compact Design saves 40% more PCB space compared to photoelectric isolators, making the ADUM1201ARZ a perfect fit for space-constrained designs in RS-232, RS-422, and RS-485 transceiver isolation.
  • Bi-Directional Communication with two isolated channels, the ADUM1201ARZ provides minimal crosstalk and is ideal for versatile applications, including SPI and CAN bus transceiver signal isolation.

Description

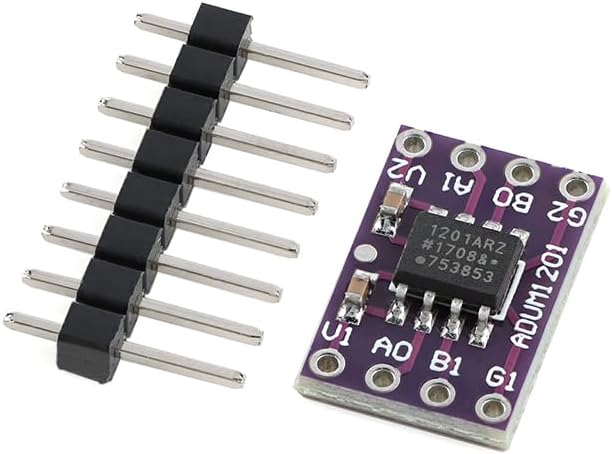

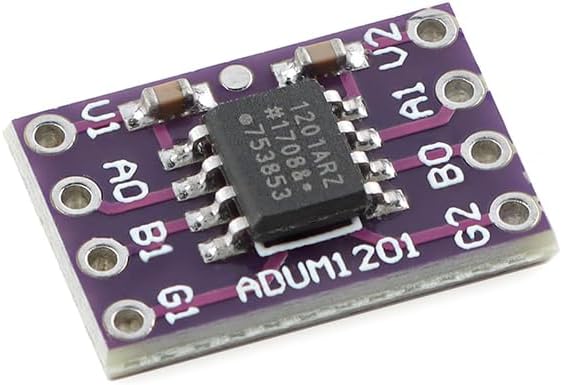

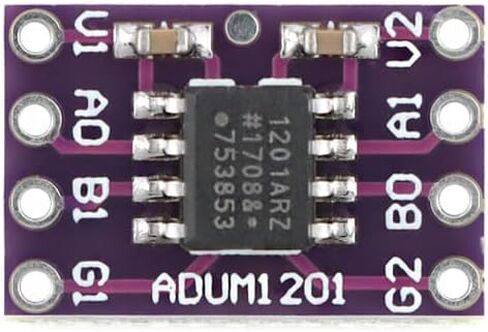

ADUM1201ARZ Digital Isolator Board - High-Speed, Low-Power Signal Isolation

Key Features:
- High-Speed Data Transfer: Up to 125 Mbps
- Low Power Consumption: 1/10th of traditional optical isolators, with a minimum operating current of 0.8 mA
- Enhanced Performance: Higher timing accuracy and better transient common mode rejection
- Compact Design: 40% smaller PCB area compared to traditional photoelectric isolators
- Bi-Directional Communication: Ideal for RS-232/RS-422/RS-485 transceiver isolation

Technical Specifications:
- Power Supply Voltage Range: 2.7V to 5.5V
- Capacitor Requirement: 0.01μF to 0.1μF capacitor between the power supply and reference ground, within 20mm distance for optimal filtering
- Isolated Channels: Two isolated channels with minimal crosstalk, designed for bi-directional transmission and reception

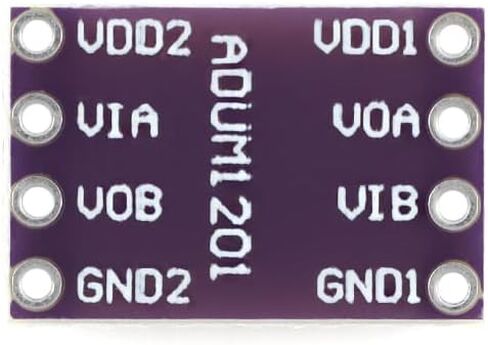

- Reference Grounds: GND1 and GND2 are separate reference grounds to ensure proper isolation
- Operating Current: Minimum 0.8 mA

Benefits:
- Energy Efficiency: Reduces system power consumption, ideal for low-voltage applications
- Reliability: Enhanced performance with higher timing accuracy and better channel matching
- Space-Saving: Compact design saves valuable PCB space
- Versatility: Suitable for a wide range of communication protocols, including RS-232, RS-422, and RS-485

Package Includes:

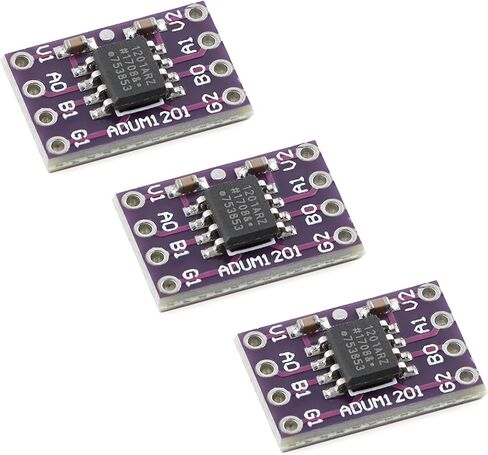

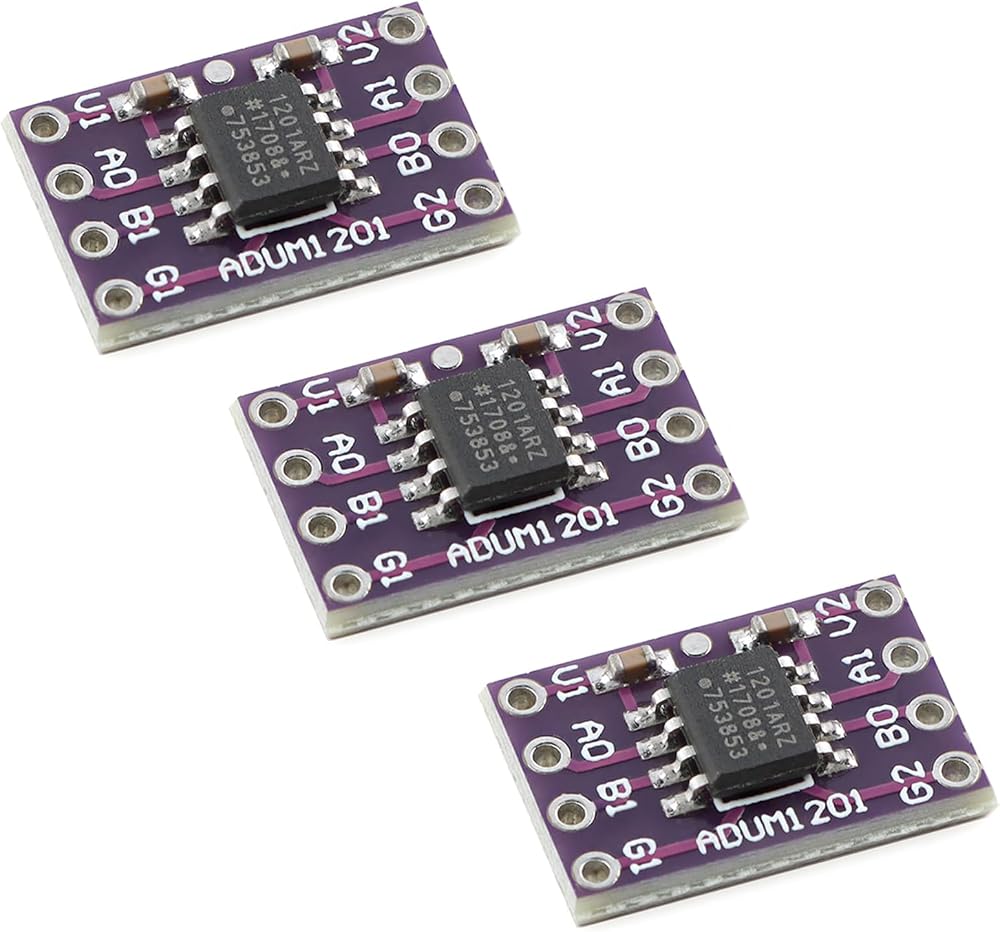

- 3pcs ADUM1201ARZ Magnetic Isolator Boards

Color: Purple
Material: Metal
Size: 2210mm

Application:
- RS-232/RS-422/RS-485 Transceiver Isolation
- Industrial Automation
-
- Telecommunications

Note:
- Ensure both power supplies are connected simultaneously for proper operation.
- GND1 and GND2 must be kept separate to maintain isolation.
