Optical Isolation Module 8 Channel 12V to 3.3V Converter – 20KHZ Signal Conversion Board for PLC, Differential Input NPN PNP Level Shifting

SAR 73
Brand
MOPFOL
Weight
64 g
– 1 +

Special Features

  • Robust Construction: This optical isolation module engineered with industrial-grade components, can converts 12V signals to 3.3V logic levels while maintaining electrical isolation between input and output circuits
  • High-Frequency Signal Conversion: The optical isolation module achieve precise 20KHZ limit switching frequency for stable PLC and microcontroller signal isolation with minimal latency
  • Wide Compatibility: The module supports common anode, common cathode and differential signal inputs for versatile integration with industrial automation systems

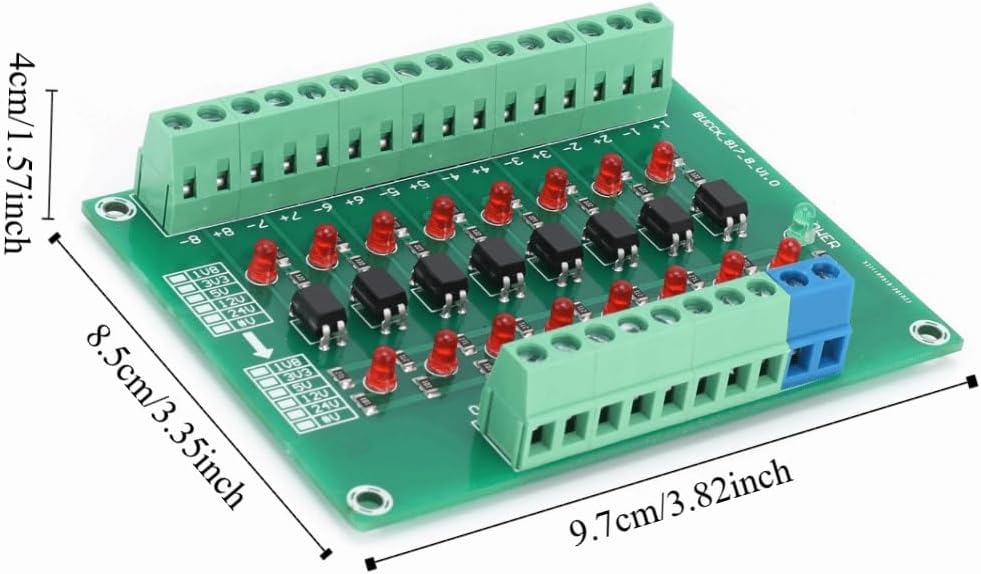

  • Space-Efficient Design: The optical isolation module with compact 85 x 97 x 40mm board dimensions allow easy installation in control cabinets and embedded applications
  • Complete Package: You will receive 1pcs DST-1R8P-N optical isolation module ready for immediate deployment in your signal conversion projects, suitable for signal isolation and level conversion between signals in single-chip microcomputers, PLCS, etc., as well as conversion from PNP and NPN to NPN

Description

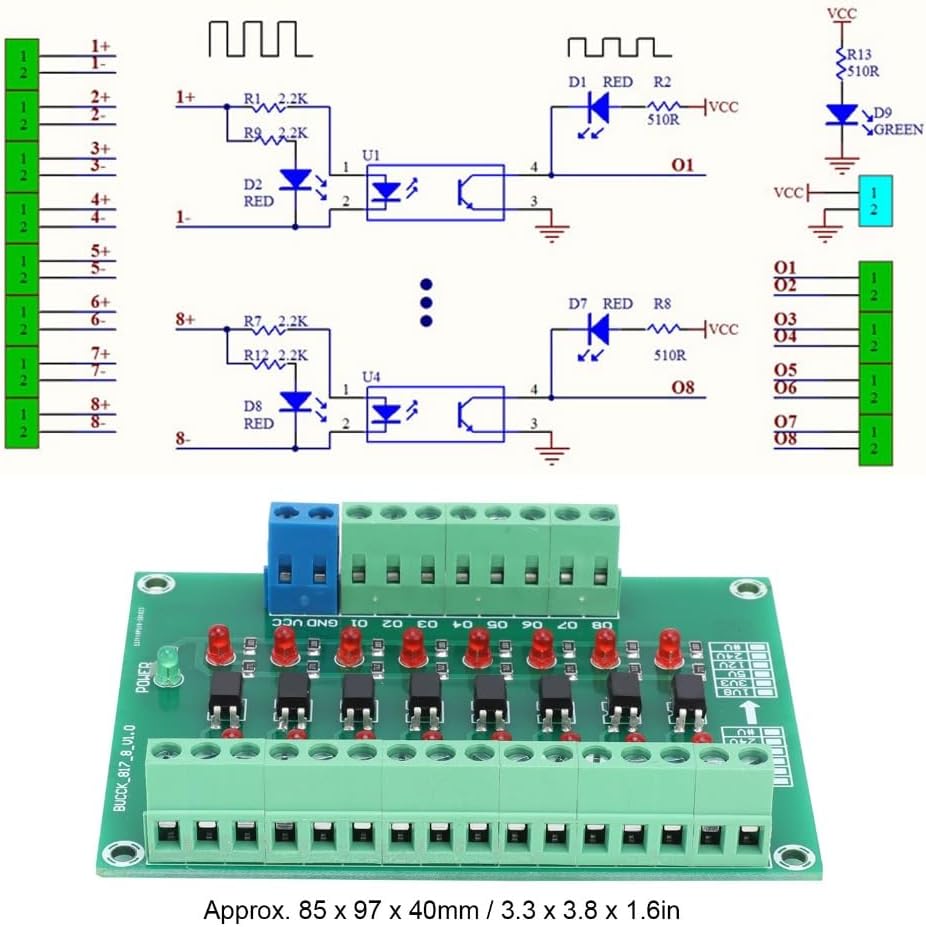

Module connection has common anode signal input, common cathode signal input, and differential signal input.
Using sophisticated production technology, and the limit switching frequency can be up to 20KHZ.
Has excellent performance, fast and stable signal conversion speed, high work efficiency and simple usage.
Made of premium materials, this optical isolation module is sturdy, durable, not easily damaged, and has a long service life.
Wide range of uses, can be used for signal isolation, level conversion between single-chip, PLC and other signals, PNP, NPN to NPN.
Specification
Item Type: Optical Isolation Module
Model: DST-1R8P-N
Number of Channels: 8 Channel
Voltage Conversion Specification: 12V to 3.3V
Limit switching frequency: 20KHZ.
Module Size: Approx. 85 x 97 x 40mm /3.35 x 3.82 x 1.57in(Length x Width x Height)
Board Color: Green

Package List
1 x Optical Isolation Module

Note
1. This model is DST-1RBP-N (not including rail mounting frame). Model analysis: DST (digital signal converter)-1R (one-way transmission) 8P (8 channels)-N (NPN output).
2. The output signal is a few V, and the module power supply uses a few V.
