1PCS too weak small motor shaft signal current 360° continuous rotation without tangle super stable and conductive slide
Slip ringΦ
12mm
series
Slip ringΦ
18mm
series
Slip ring Φ22
mm
series
Hat type high current collector ring

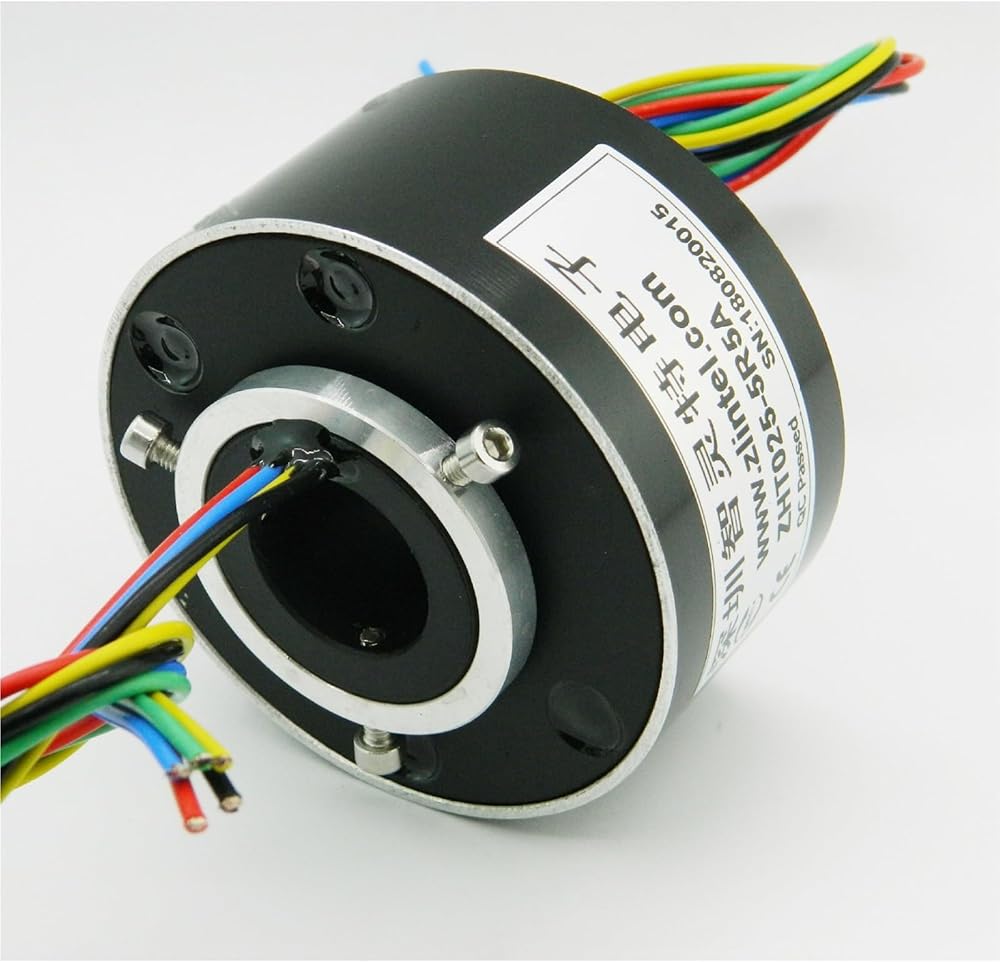

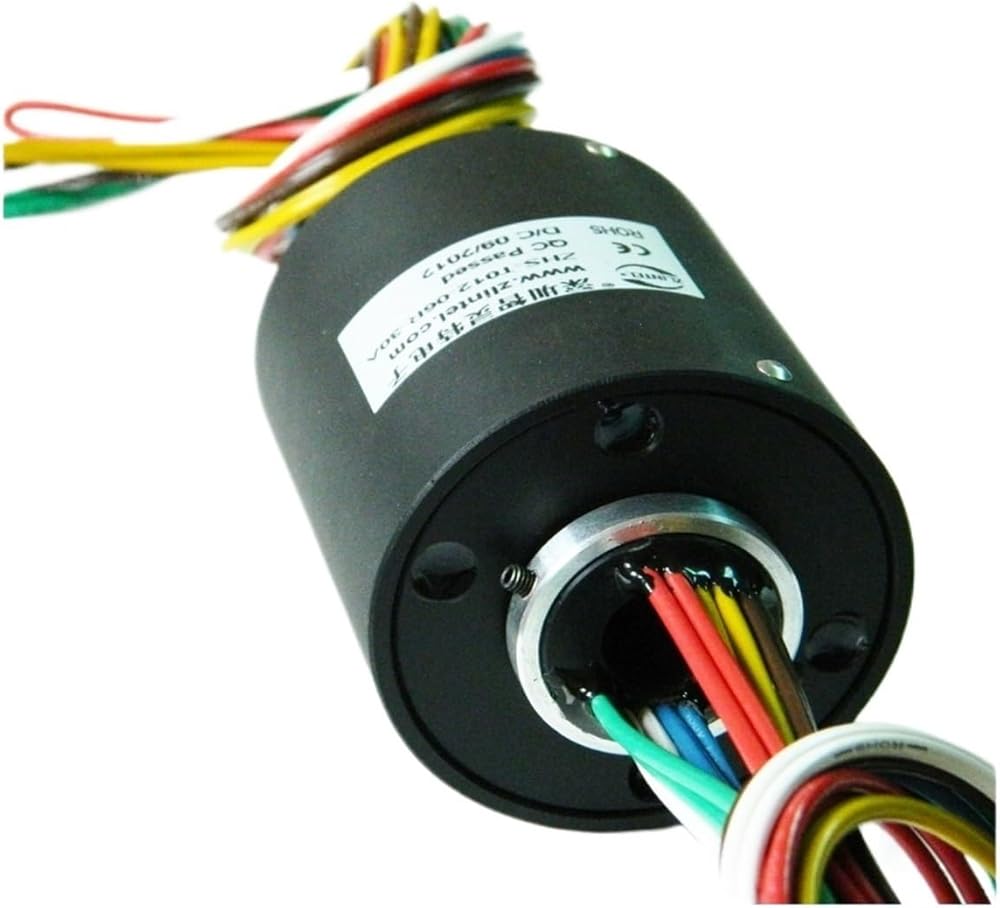

Through hole hollow slip ring series

model
ZHT012-06*30A
Number of channels
6
Rated current
2 A/channel signal current assembly rated voltage
240VAC/DC
Speed
0-200rpm
outer diameter
12mm
Contact material
Precious metal
Shell material
Aluminum alloy
dynamic resistance
Minimum 1mΩ
electrical noise
Wire specifications
AWG16 silver plated Teflon
Compressive strength
500VDC@50Hz,10s
Wire length
Standard 250mm
Dielectric strength
500MΩ@500VDC,10s
Protection level
IP54
working temperature
-20℃ ~+60℃
Working humidity
10%-85% RH
Why choose slip rings?
When the connection between electrical and mechanical parts needs to provide 360° unrestricted continuous electrified rotation, we usually encounter the problem of wire twisting and twisting. At this time, the use of conductive slip rings can completely solve the problem of twisting or twisting of wires. , with the continuous innovation and advancement of technology, conductive slip rings can simultaneously provide large current power transmission and signal rotation connection.
