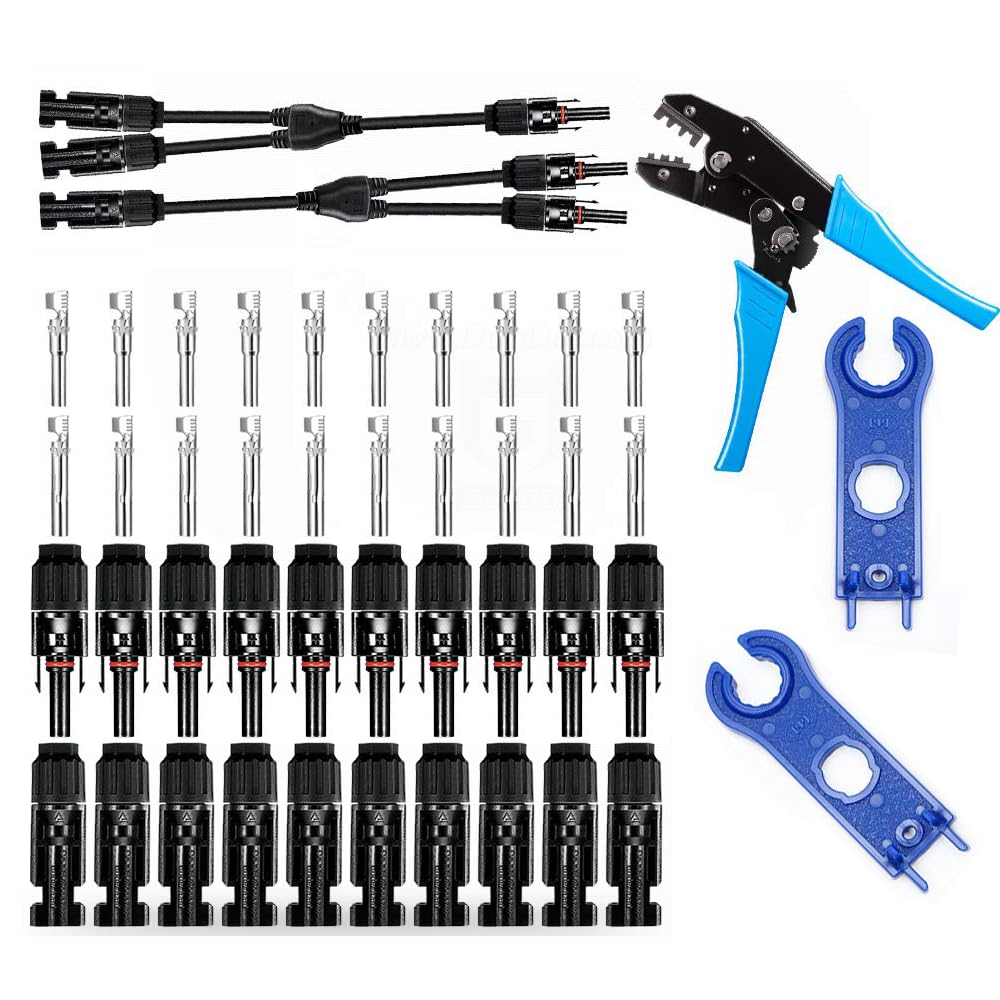

5 Pairs Solar Connectors M-C-4 Male/Female IP67 Waterproof Solar Panel Cable Connectors with Spanners in Saudi Arabia

10p Mc4+1p Mc-y+a Crimper+1p Spanner

SAR 47
Brand
iSunergy
Weight
140 g
Color10p Mc4+1p Mc-y+a Crimper+1p Spanner
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • 【MC4 Connectors】5 pairs M-C-4 solar panel cable connectors (5pcs Male + 5pcs Female) and 1 pair of spanners.
  • 【Compatibility】Compatible with different insulation diameters (1.5m㎡--6m㎡/14AWG - 10AWG).
  • 【High-Quality Materials】PPO/PPE insulation material with excellent aging resistance and UV endurance. The thickened copper core and galvanized material ensure exceptional performance and durability.
  • 【Durable and Resistant to Extreme Weather】Solar connectors feature an IP67 waterproof rating. The waterproof gasket at the connection can perfectly block moisture and dust, preventing corrosion. Operating temperature range: -40°F to +194°F.
  • 【Easy to Assemble】UL certification fastness of male and female points with stable self-locking system which is easy to lock and open.

Description

Product Description
Features
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument.
Compatible with PV cables with different insulation diameters.
Resistance of extra high & low temperature and fireproof.
Load capability with big current and high voltage.
Double seal rings for better waterproof effect.
Connection by the crimping tool
Insulation Material: Made of PPO + PA material.
Specifications:
Maximum working voltage: DC 1000 V
Rated Current: 20A (4 mm²), 30 A (6 mm²)
Suitable for: 1.5 mm² - 6 mm²(14AWG-10AWG)
Contact resistance: ≤0.5mmΩ
Temperature Range: -40 ℃ ~ +105℃
Flame class: UL94-V0
Waterproof Class: IP67
Insertion force: ≤50N
Withdrawal force: ≥50N
Package including:
5 pair M-C-4 solar panel cable connectors (5pcs Male + 5pcs Female)
1 pair spanners
