Fitment:
For 1982-1984 CHEVY CAMARO 2.5L - 5.0L (26" WIDE CORE ONLY)
For 1985-1986 CHEVY CAMARO 5.0L (26" WIDE CORE ONLY)
For 1987-1992 CHEVY CAMARO 5.0L - 5.7L
For 1982-1984 PONTIAC FIREBIRD/TRANS AM 2.5L - 5.0L
For 1985-1986 PONTIAC FIREBIRD/TRANS AM 5.0L
For 1987-1988 PONTIAC FIREBIRD/TRANS AM 5.0L - 5.7L
For 1989-1992 PONTIAC FIREBIRD/TRANS AM 3.1L - 5.0L - 5.7L
Interchange Part Number: MC951 CU951 CC951 951 DPI951
This radiator is designed for either a 2.5L(151ci) L4, 5.0L(305ci) V8 or a 5.7L(350ci) V8 engine.
Radiator Size:
Core Dimensions: 26 1/4" W x 16 4/9" H
Overall Dimensions: 31 4/7" W x 19 3/5" H
Inlet Hose Connection: 1 2/3" Driver Side
Outlet Hose Connection: 1 1/4" Passenger Side
Transmission Oil Cooler: ￠26×290×M12*1.25（Z）
Please Check the Size Before You Buy!
Fan Specification:
Diameter: 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

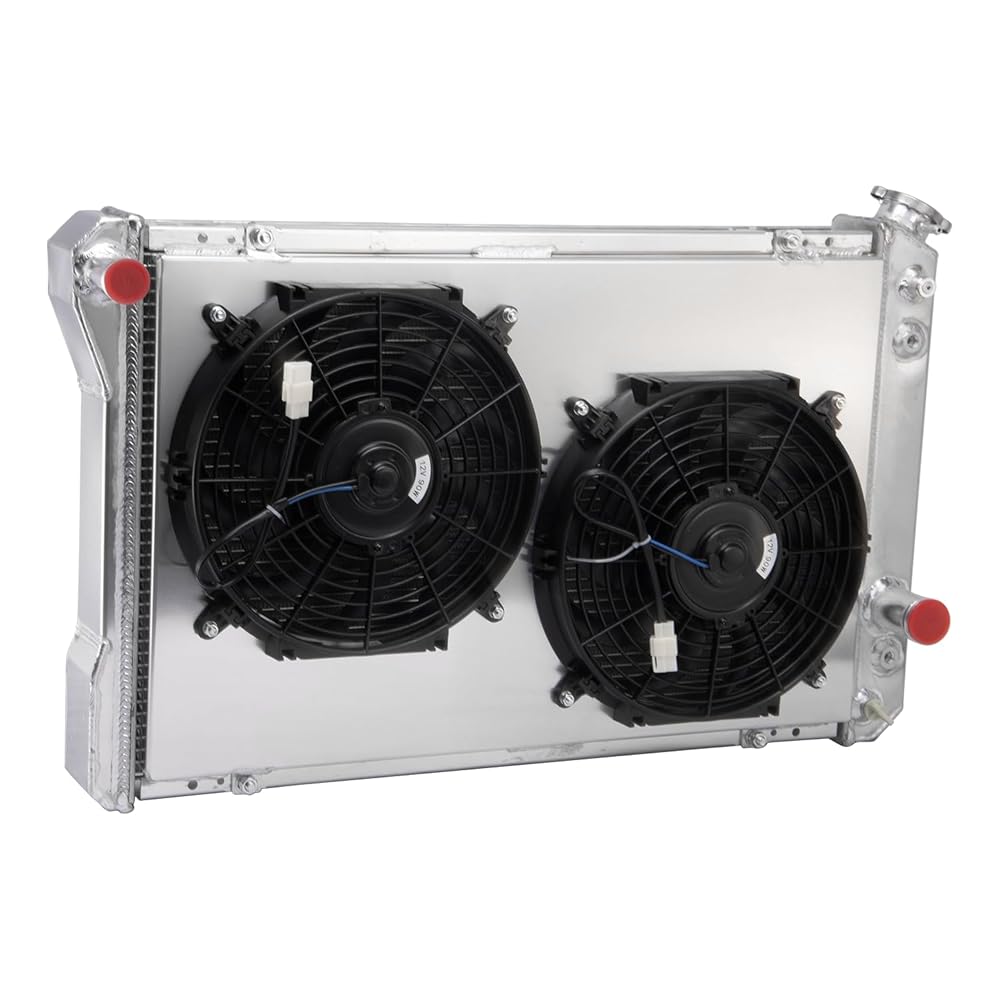

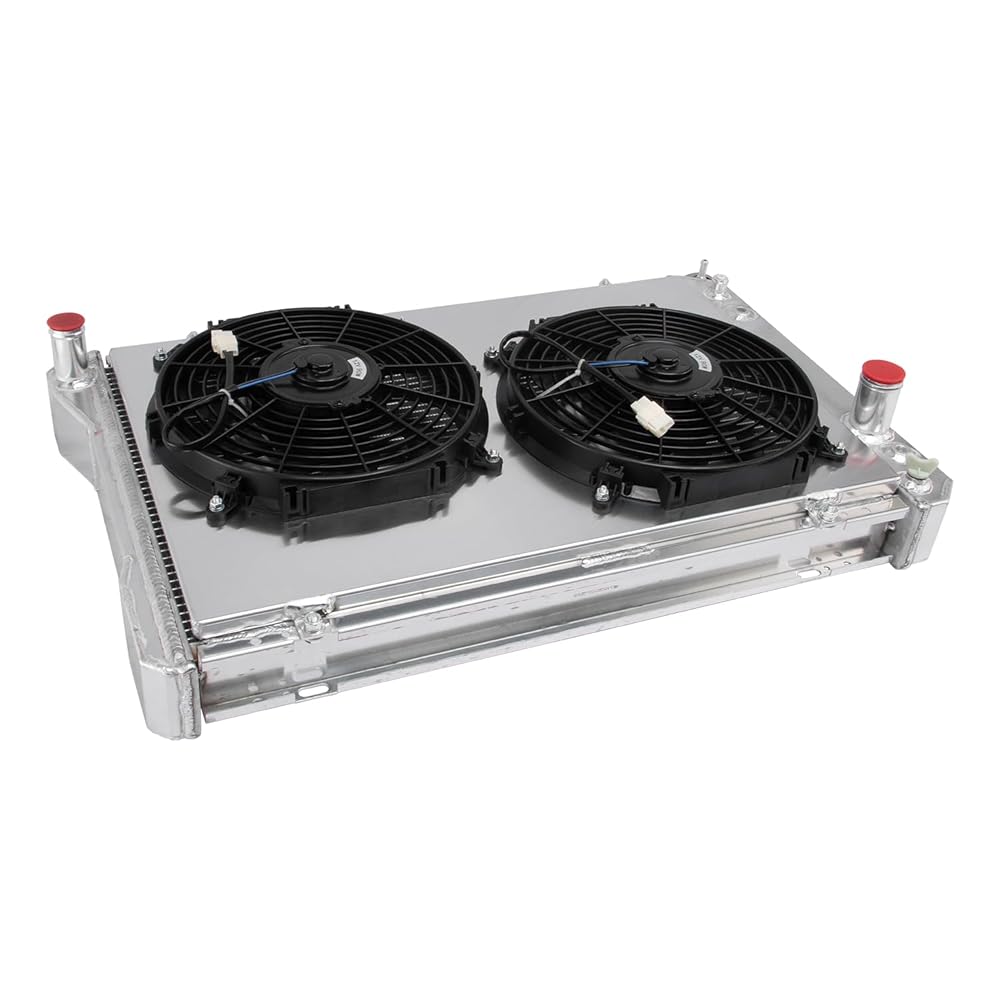

Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized.
Package included:

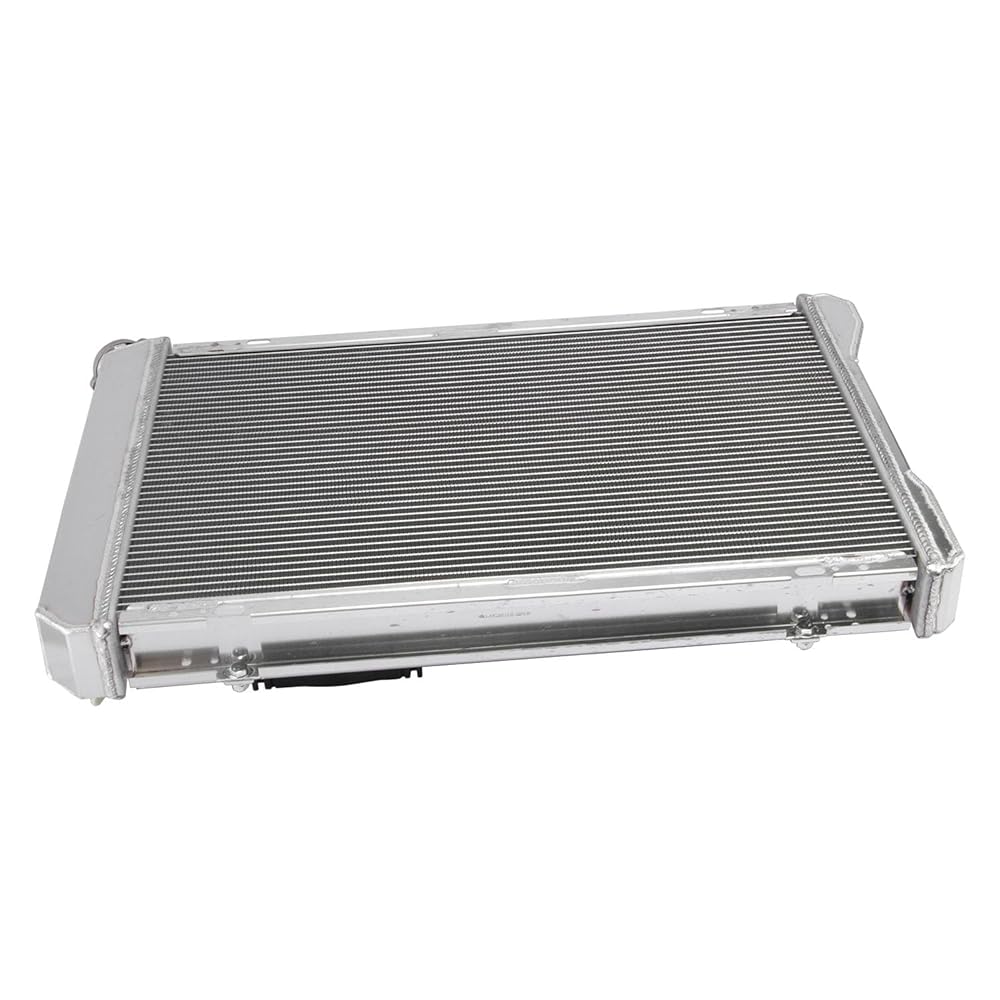

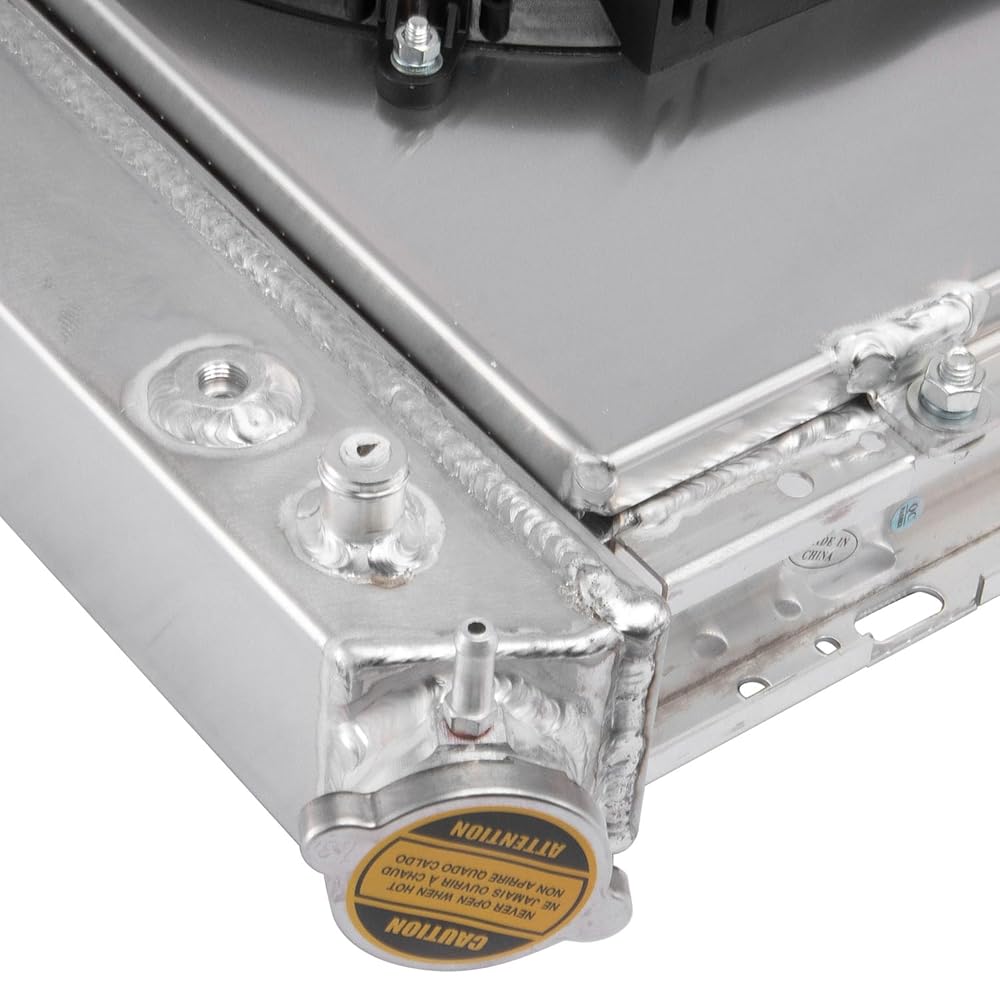

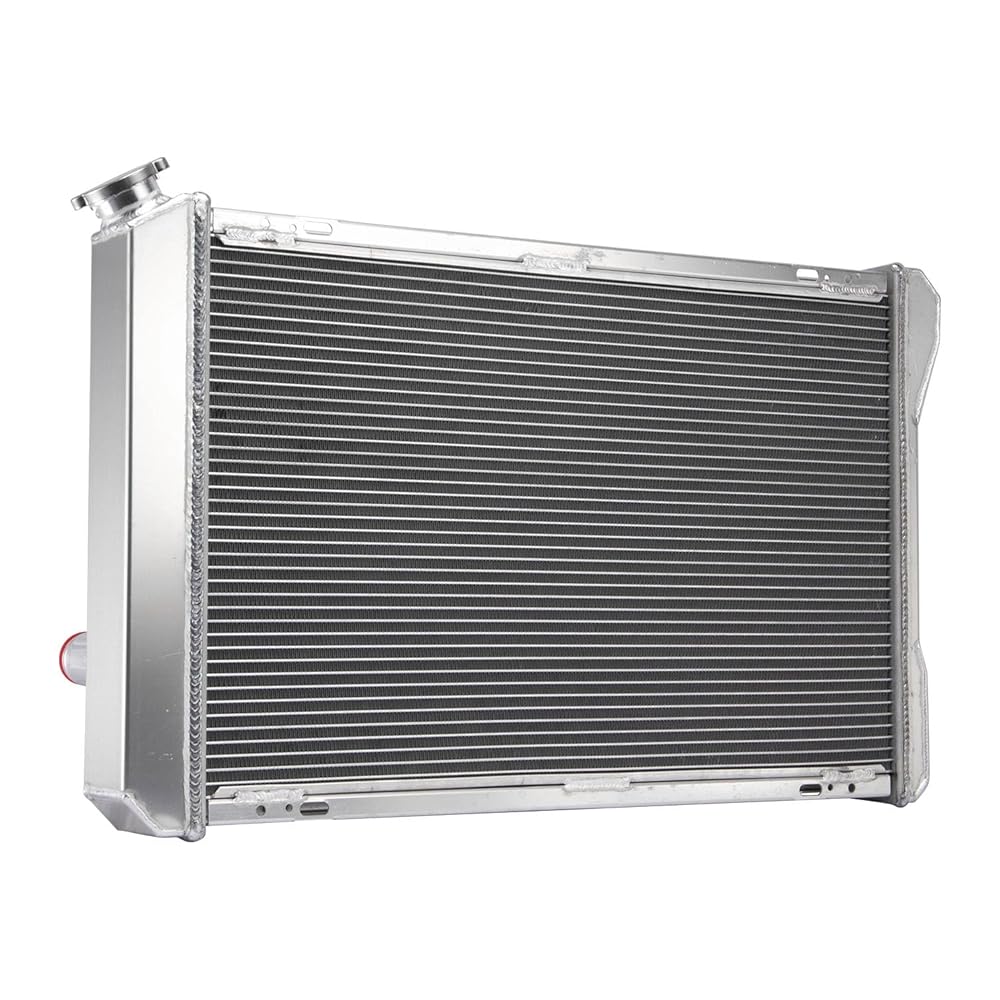

1 X 4-Row Aluminum Radiator+Radiator Cap
1 X Aluminum Shroud
2 X 12'' Fans (Includes mounting kits)
