Oil Pan Gasket Set - Product Specifications & Guide

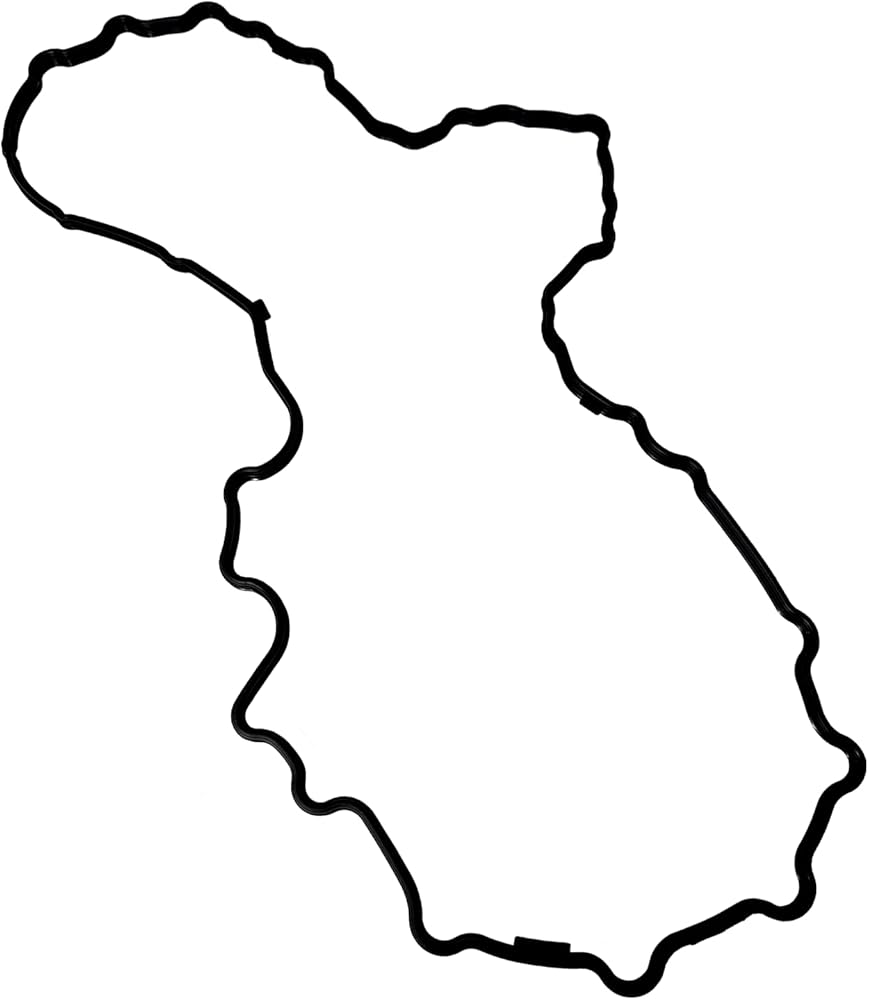

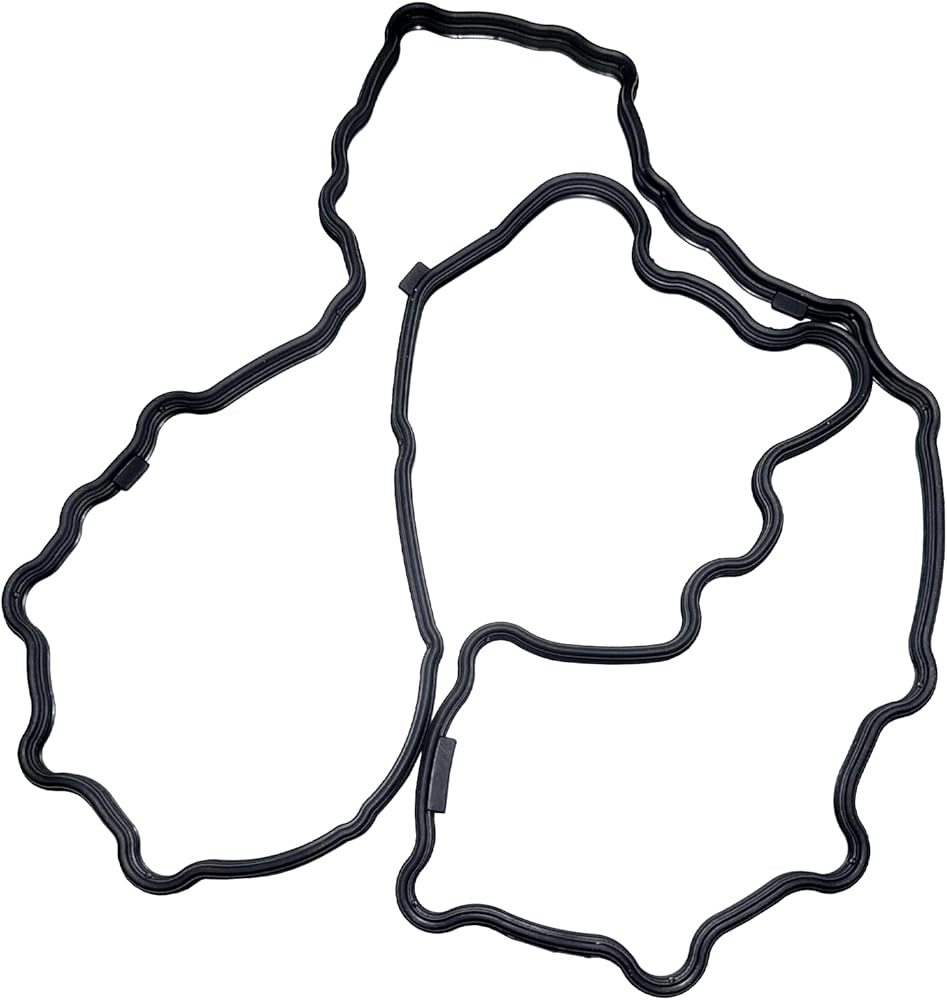

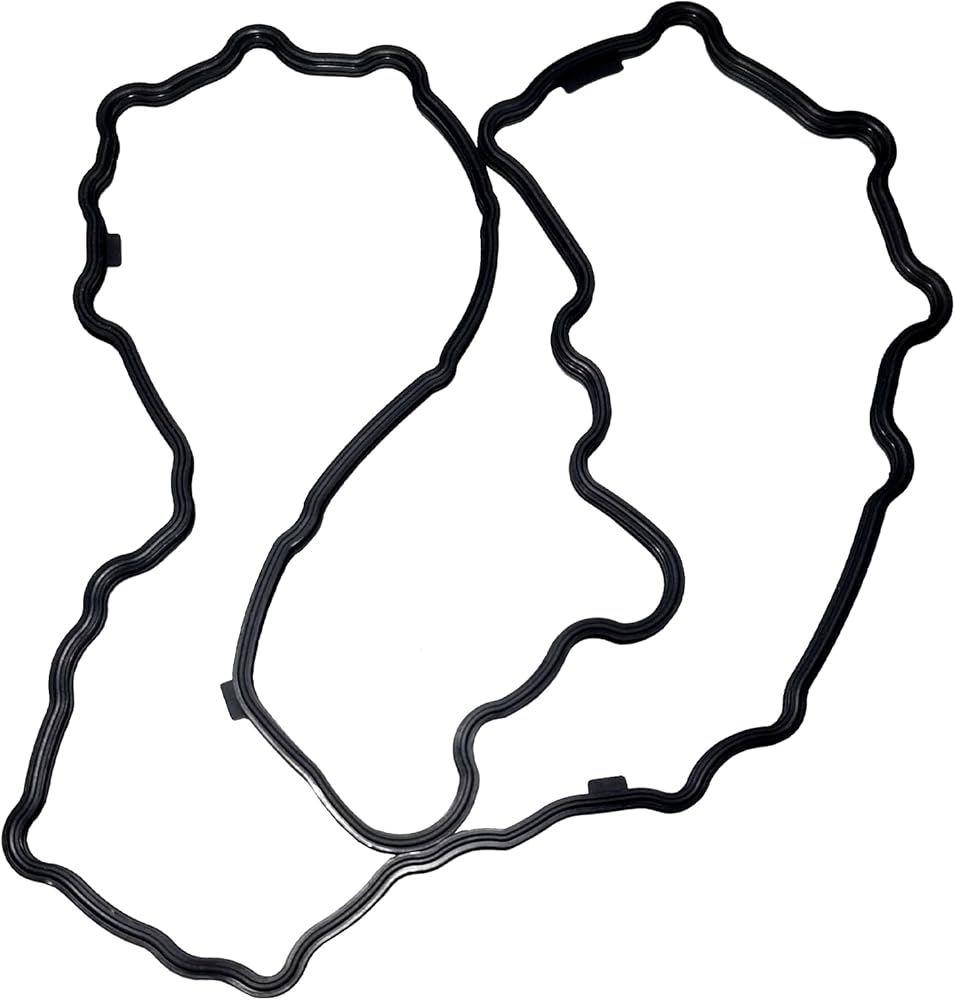

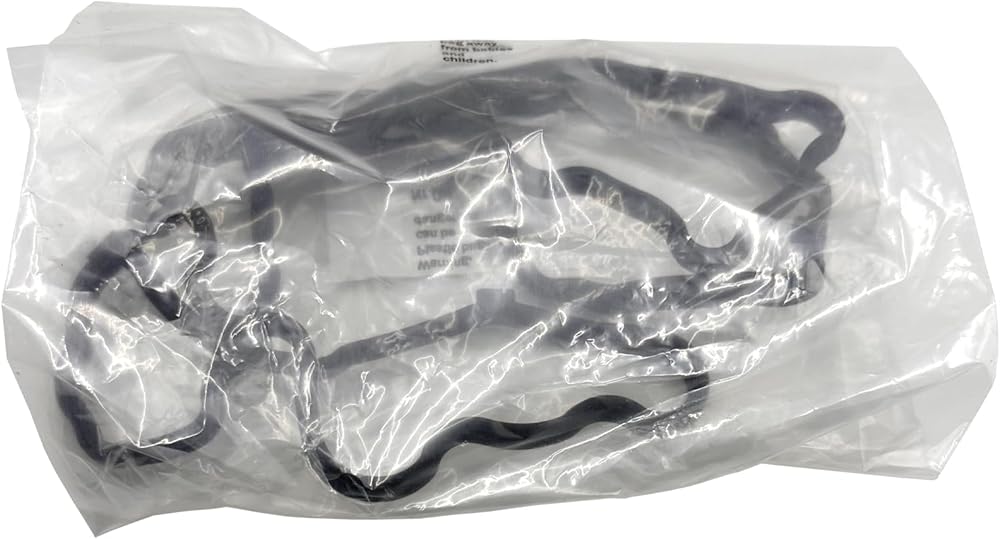

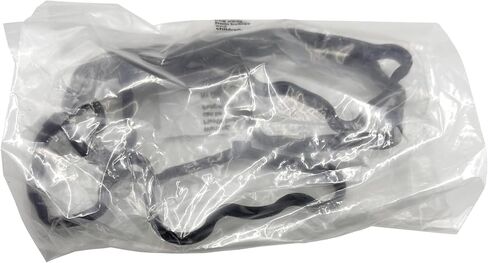

Product Name: Oil Pan Gasket Set

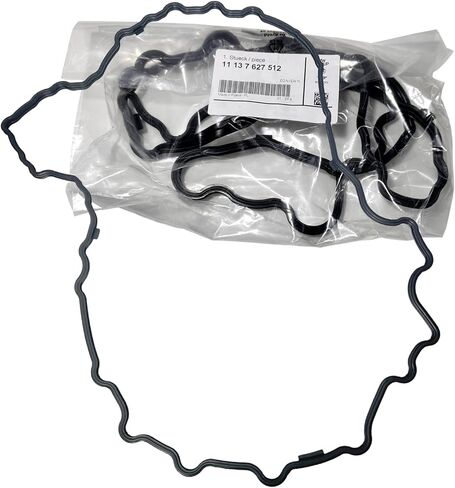

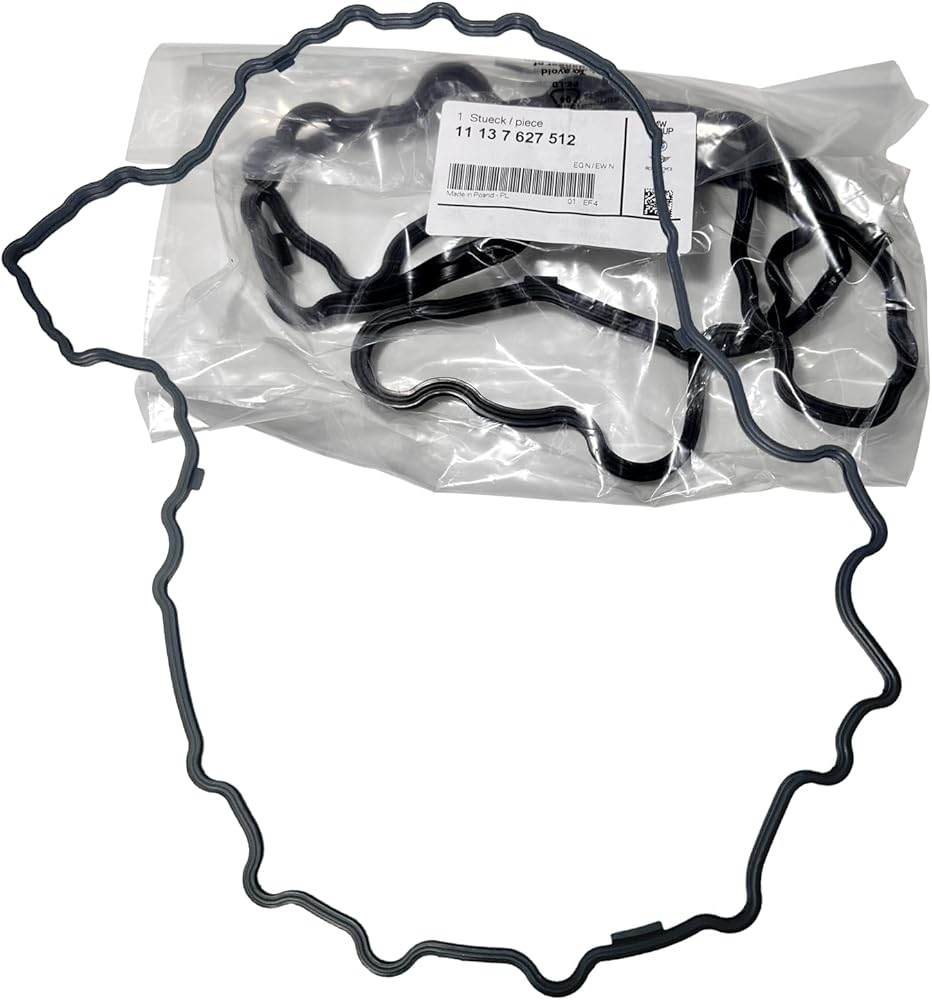

Part Numbers: 11137627512, 11-13-7-627-512
Mounting Position Part Numbers: 11137618512, 11-13-7-618-512
Product Attribute: Genuine Accessories
Compatible BMW Engines: N20/N26 4-cylinder engines
made in: Poland
Function: Seals the engine oil pan, which stores engine oil to ensure proper lubrication of engine components.
Key Features: Latest-generation oil pan gasket with enhanced heat resistance, corrosion resistance, and an extended service life compared to the previous generation.
Early Failure Symptoms: Minor oil stains or sludge in the engine oil pan area or on the vehicle's undercarriage shield, with a possible slight increase in oil consumption. It has little impact on driving initially, but prolonged inaction will worsen into severe oil leakage.
Late-Stage Failure Symptoms: Visible oil spots on the ground, rapid drop in oil level requiring frequent top-ups, and activation of the oil warning light on the dashboard due to insufficient oil pressure.
Potential Consequences: Poor engine lubrication, posing significant risks of cylinder scoring and crankshaft seizure; belt breakage may lead to vehicle breakdown and a sharp increase in repair costs.
Inspection Methods: After parking the vehicle on a clean surface for a period of time, check for new oil spots directly under the engine.
Chassis inspection: If possible, lift the vehicle or observe from the side to check for moist sludge or dripping oil at the oil pan seams.
Oil level monitoring: Regularly check the oil dipstick when the engine is cold; if the oil consumption rate is significantly faster than before, inspect for leaks.
Identifying "Premature Failure" Caused by Counterfeit Parts
Rubber material becomes hard/brittle, and the sealing lip loses elasticity.
Obvious burrs on the edges, resulting in poor fit with the oil pan sealing groove.
Vehicle Specific Fit: Compatible with BMW
2012-2017 1 Series F20 125i
2015-2021 2 Series F22/F87/F23 220i
2011-2018 3 Series F30/F80/F31/F34 320i 328i 328 i xDrive
2013-2017 4 Series F32/F82/F33/F83 428i 420i 428 i xDrive
2011-2017 5 Series F07/F11 520i 528i 528 i xDrive
2011-2015 X1 E84 20i xDrive xDrive 28i Flex
2012-2017 X3 F25 20i xDrive 28i xDrive
2014-2018 X4 F26 20i xDrive xDrive 28i
2015-2018 X5 F15/F85 28i xDrive 40e xDrive
2015-2019 X6 F16/F86 28i xDrive
2011-2016 Z4 E89 sDrive 20i sDrive 28i
