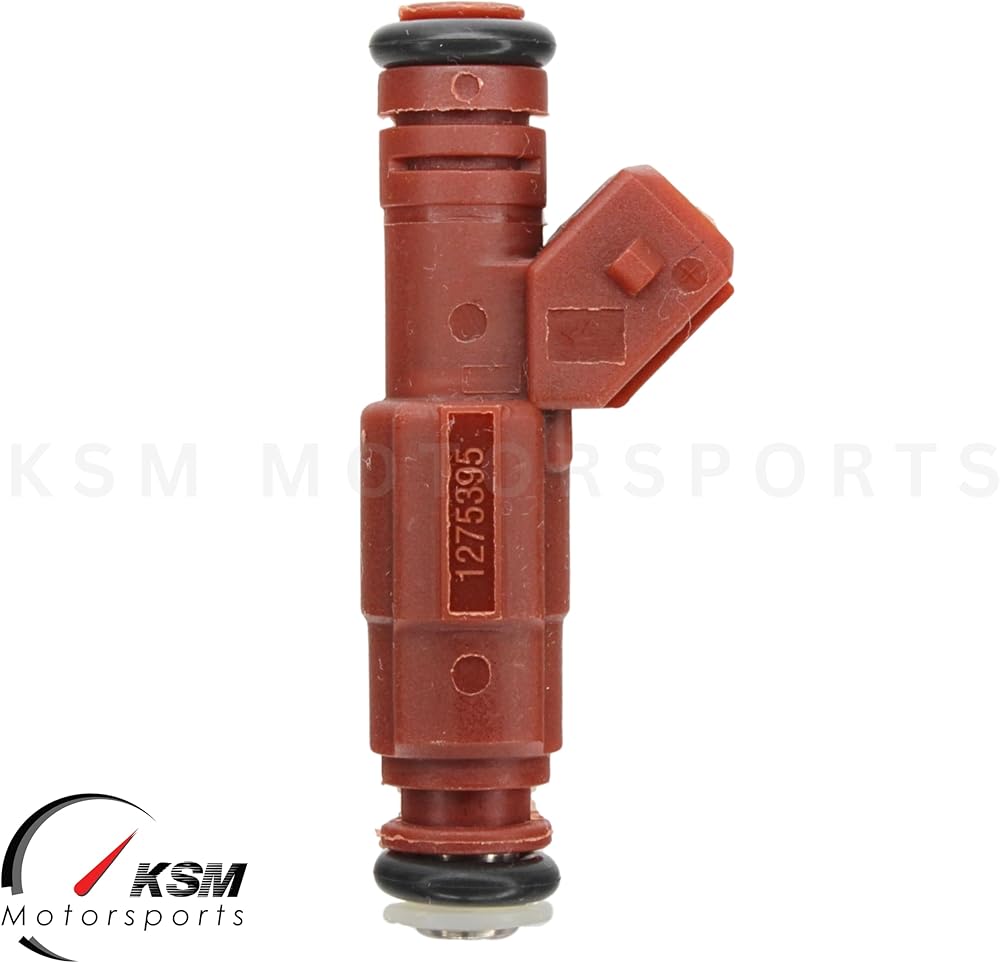

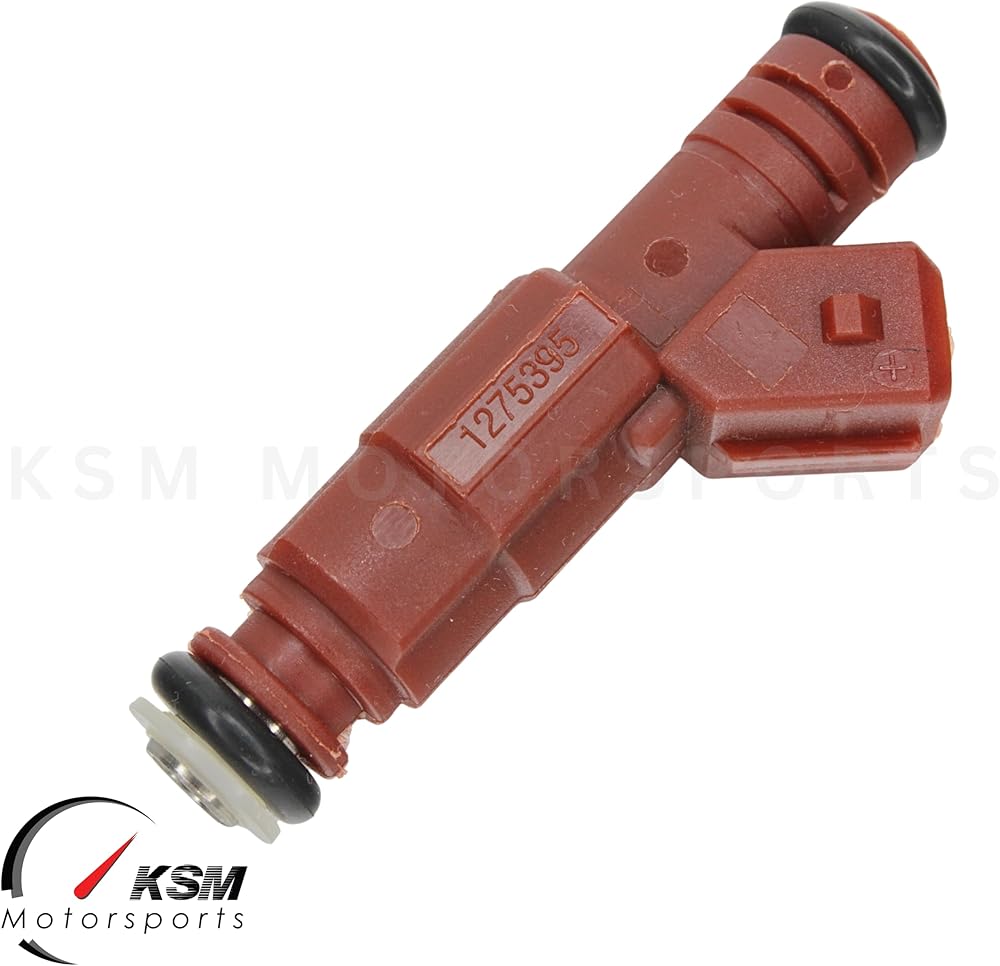

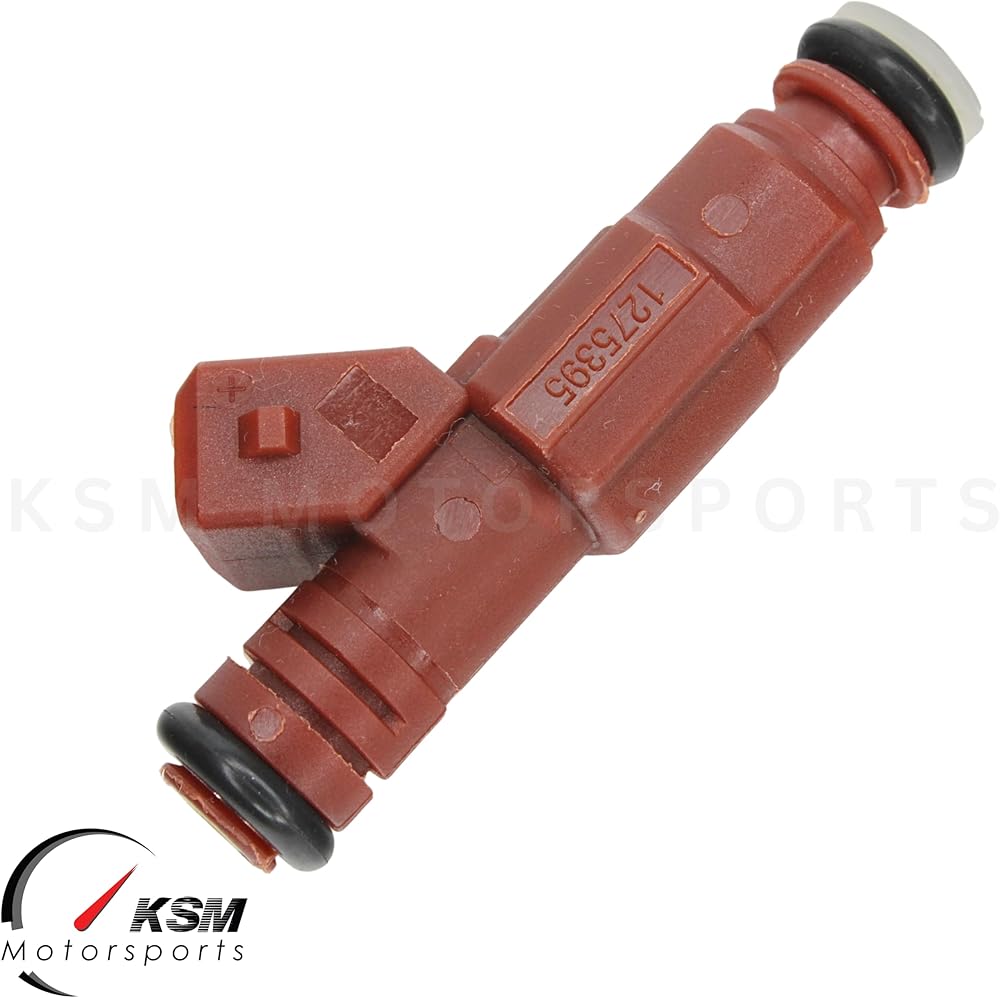

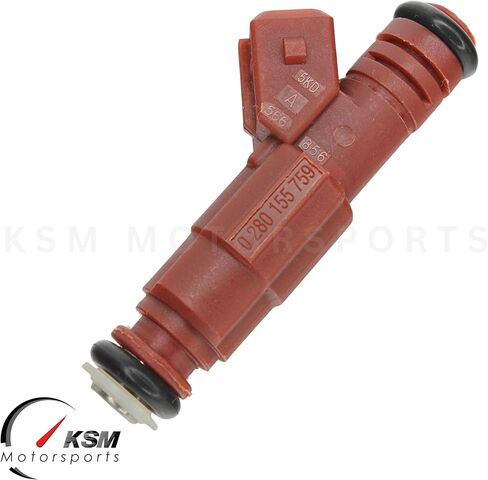

8 x Fuel Injectors 30lb EV1 Style High Impedance 315cc Replaces 0280150945
Details

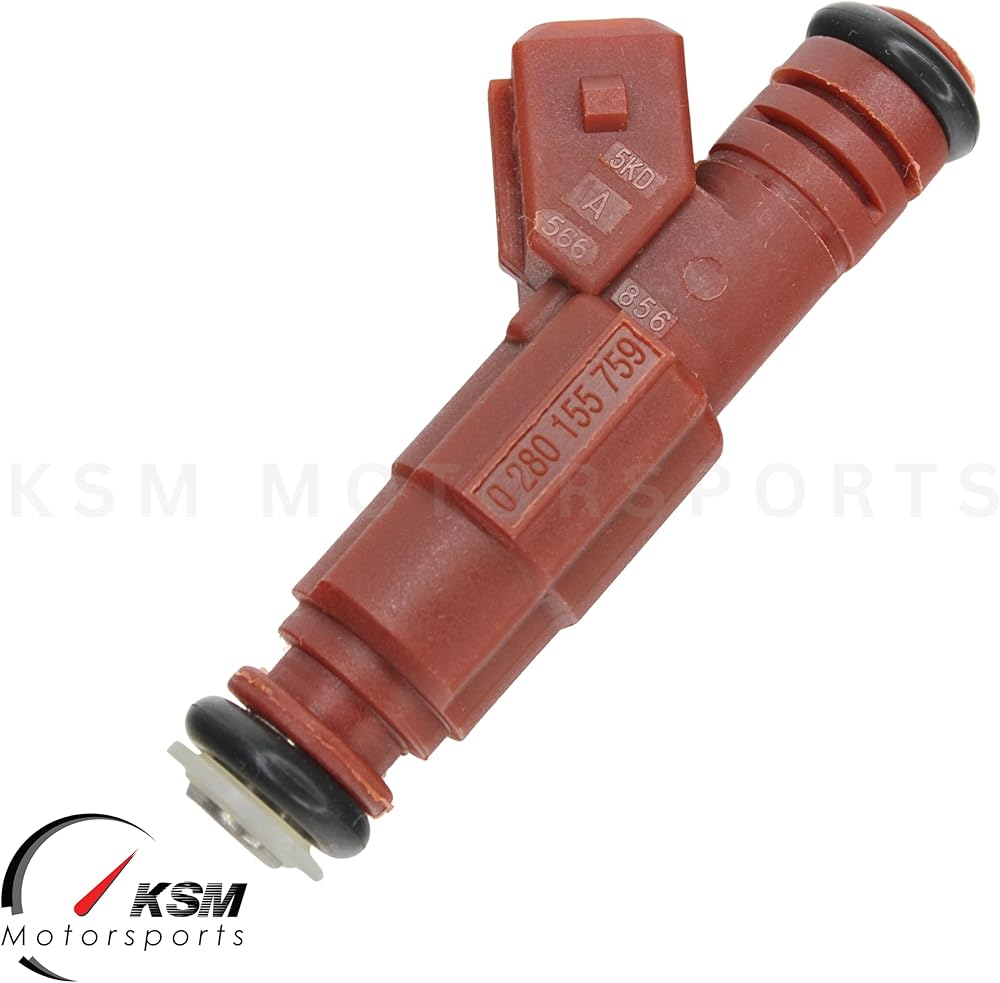

Manufacturer Part Number: 0280155759
Compatible part numbers:0280150945, 0280155831, M-9593-BB302
Manufactured with precision to meet OE standards; Easy installation
The fuel injector has been 100% tested and exactly match the internal coil resistance and fuel flow rate of OEM fuel injectors
Pressure/Leak tested, Spray/Flow Tested
Condition: 100% Brand New

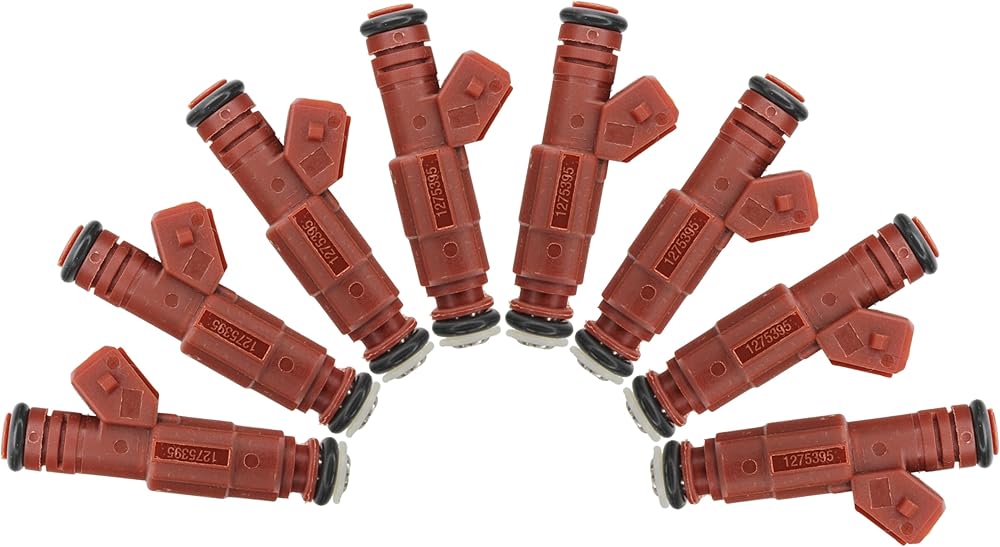

Quantity: 8 pieces
Design: GEN III EV1 Style Fuel Injector

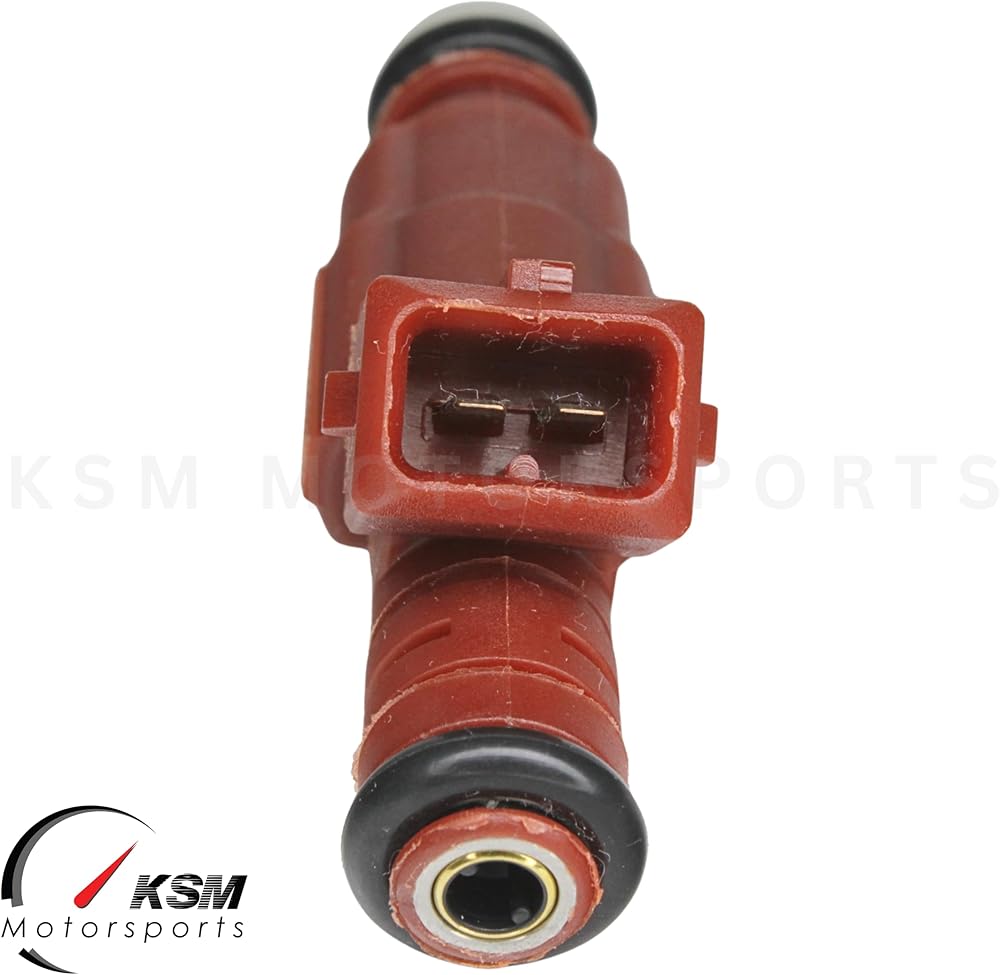

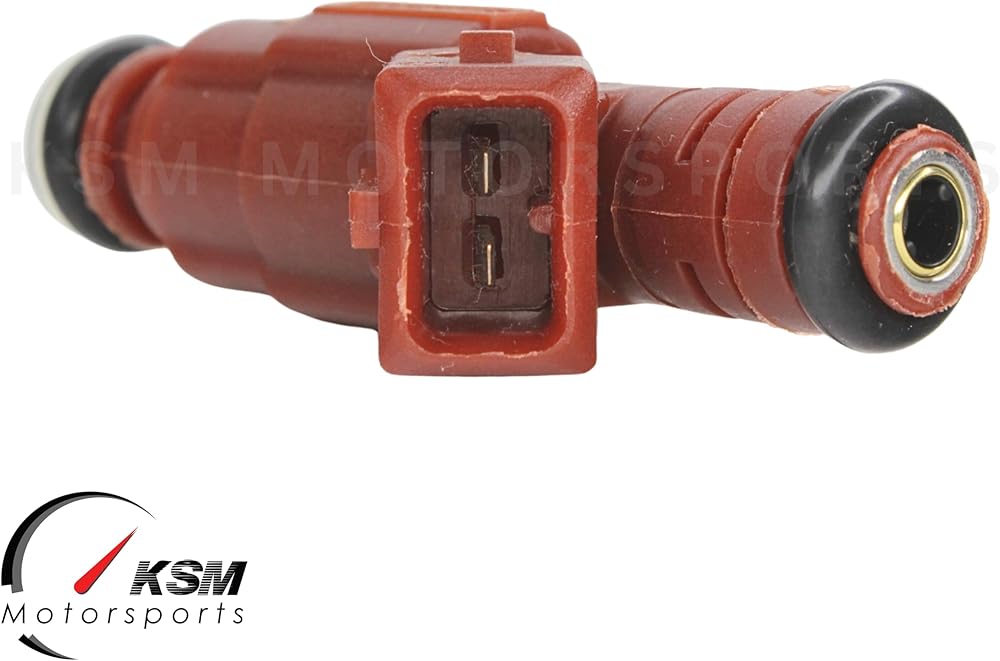

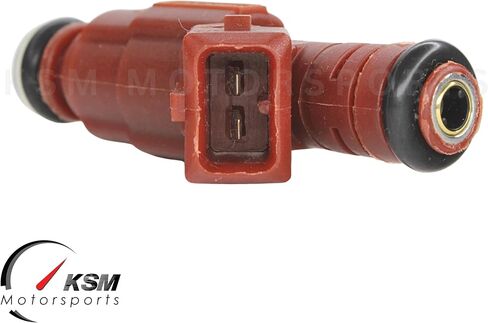

Connector Type: Jetronic / EV1
O-Rings Included: Yes, preinstalled

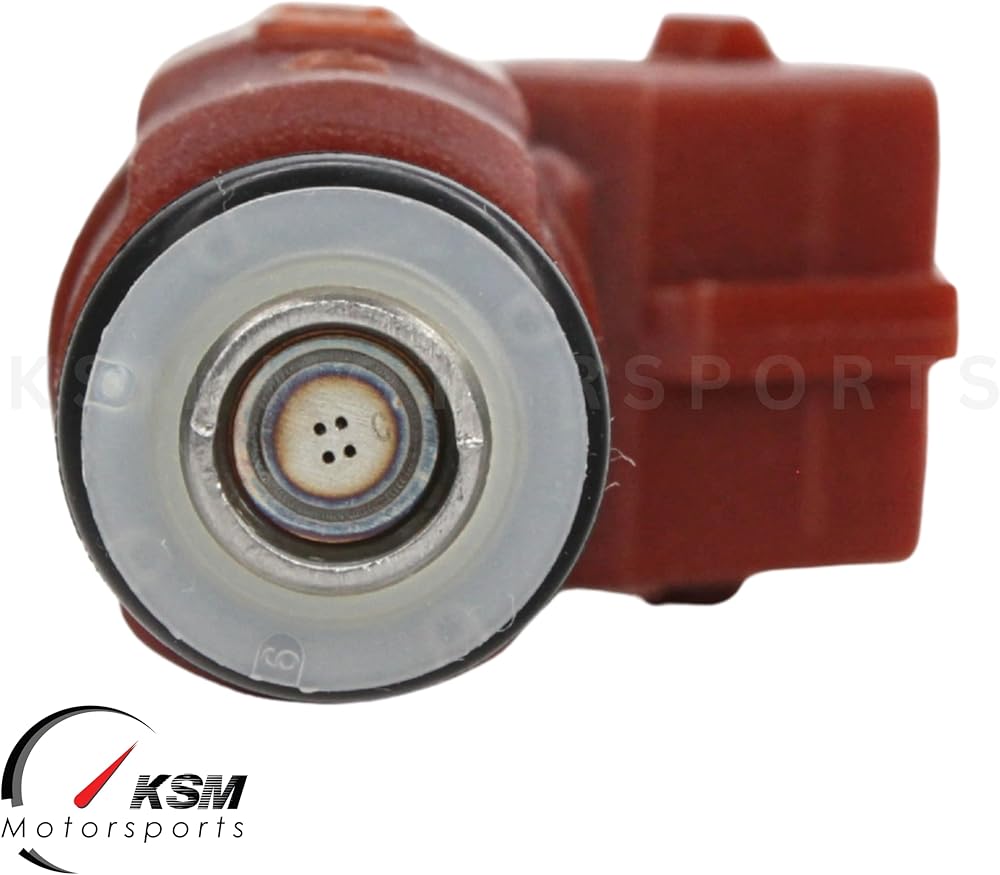

Orifice Type: 4 holes Disc
Spray Pattern: 15 Degree Spray Cone

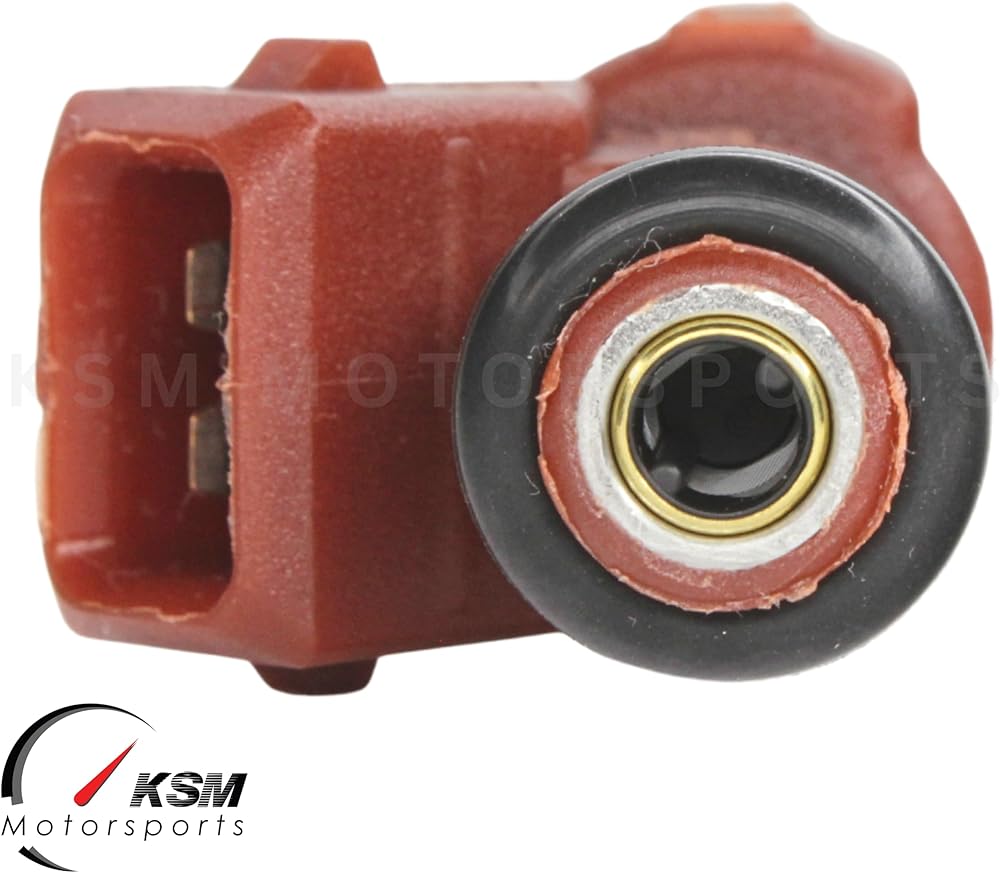

Filter Design: Basket filter design at inlet
Injector Design: Metal & composite plastic
Technical dataCoil Resistance: Approx.12 Ohms / High Impedance
Static Flow Rate: 30 lb/hr = 315cc/min @ 43.5PSI ( 300kPa )
Gain: 0.12ms/MG
Offset: 0.055ms
Turn on time @ 14VDC: 1.14ms
Turn off time: 0.85ms @ 300KPa
Amperage: 1.0 Amps
Pressure: Min 30PSIG/ Max 100PSIG
Dimensions

Length: 3" (74mm)
Diameter: 16mm
O-Ring Diameter: 14.5mm

Application

These High Impedance (Approx.12 ohms) performance injectors will fit all of the following models:
Chevy Corvette and Camaro V8's
Pontiac Firebird and TransAm V8's
1986-1995 Ford Mustang GT, LX and Cobra 5.0L
1996-2004 Ford Mustang GT
The following models must change injector plugs, we will include EV1 plugs for free after receiving a note in the checkout.1999/2001 Ford Mustang Cobra
2003-2004 Ford Mustang Cobra
2005-2012 Ford Mustang
Important Note: Please use part numbers and picture to verify application is correct for your needs.
